3-硝基水杨酸甲酯 | 22621-41-6

• 物质功能分类: 有机原料 - 烃类化合物及其衍生物 - 烃类硝化物
• 分子结构分类: 有机化合物 - 苯类化合物 - 苯和取代衍生物
• 中文名称: 3-硝基水杨酸甲酯
• 中文别名: 2-羟基-3-硝基苯甲酸甲酯
• 英文名称: 2-hydroxy-3-nitro-benzoic acid methyl ester
• 英文别名: methyl 2-hydroxy-3-nitrobenzoate；methyl 3-nitrosalicylate；3-Nitro-salicylsaeure-methylester
• CAS: 22621-41-6
• 化学式: C₈H₇NO₅
• mdl: MFCD00272263
• 分子量: 197.147
• InChiKey: NIBVYEHAFBEVFI-UHFFFAOYSA-N

物化性质

• 熔点：
  127-132 °C
• 沸点：
  263.9±20.0 °C(Predicted)
• 密度：
  1.432±0.06 g/cm3(Predicted)
• 溶解度：
  可溶于氯仿（少许）、甲醇（少许）
• 稳定性/保质期：

  如果遵照规格使用和储存，则不会分解。避免接触氧化物。

计算性质

• 辛醇/水分配系数(LogP)：
  1.9
• 重原子数：
  14
• 可旋转键数：
  2
• 环数：
  1.0
• sp3杂化的碳原子比例：
  0.125
• 拓扑面积：
  92.4
• 氢给体数：
  1
• 氢受体数：
  5

安全信息

• 危险品标志：
  Xn
• 安全说明：
  S26,S37/39
• 危险类别码：
  R36/37/38
• 海关编码：
  2918290000
• 危险性防范说明：
  P261,P305+P351+P338
• 危险性描述：
  H315,H319,H335
• 储存条件：
  请将贮藏器密封，并将其放入一个紧密封装的容器中。建议存放在阴凉、干燥的地方。

SDS

Material Safety Data Sheet

---

Section 1. Identification of the substance
Methyl 2-hydroxy-3-nitrobenzoate
Product Name:
Synonyms:

---

Section 2. Hazards identification
Harmful by inhalation, in contact with skin, and if swallowed.
H315: Causes skin irritation
H319: Causes serious eye irritation
H335: May cause respiratory irritation
P261: Avoid breathing dust/fume/gas/mist/vapours/spray
Wear protective gloves/protective clothing/eye protection/face protection
P280:
P305+P351+P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present
and easy to do – continue rinsing
P304+P340: IF INHALED: Remove victim to fresh air and keep at rest in a position comfortable for breathing
P405: Store locked up

---

Section 3. Composition/information on ingredients.
Methyl 2-hydroxy-3-nitrobenzoate
Ingredient name:
CAS number: 22621-41-6

---

Section 4. First aid measures
Immediately wash skin with copious amounts of water for at least 15 minutes while removing
Skin contact:
contaminated clothing and shoes. If irritation persists, seek medical attention.
Eye contact: Immediately wash skin with copious amounts of water for at least 15 minutes. Assure adequate
flushing of the eyes by separating the eyelids with fingers. If irritation persists, seek medical
attention.
Inhalation: Remove to fresh air. In severe cases or if symptoms persist, seek medical attention.
Wash out mouth with copious amounts of water for at least 15 minutes. Seek medical attention.
Ingestion:

---

Section 5. Fire fighting measures
In the event of a fire involving this material, alone or in combination with other materials, use dry
powder or carbon dioxide extinguishers. Protective clothing and self-contained breathing apparatus
should be worn.

---

Section 6. Accidental release measures
Personal precautions: Wear suitable personal protective equipment which performs satisfactorily and meets local/state/national
standards.
Respiratory precaution: Wear approved mask/respirator
Hand precaution: Wear suitable gloves/gauntlets
Skin protection: Wear suitable protective clothing
Eye protection: Wear suitable eye protection
Methods for cleaning up: Mix with sand or similar inert absorbent material, sweep up and keep in a tightly closed container
for disposal. See section 12.
Environmental precautions: Do not allow material to enter drains or water courses.

---

Section 7. Handling and storage
Handling: This product should be handled only by, or under the close supervision of, those properly qualified
in the handling and use of potentially hazardous chemicals, who should take into account the fire,
health and chemical hazard data given on this sheet.
Storage: Store in closed vessels.

---

Section 8. Exposure Controls / Personal protection
Engineering Controls: Use only in a chemical fume hood.
Personal protective equipment: Wear laboratory clothing, chemical-resistant gloves and safety goggles.
General hydiene measures: Wash thoroughly after handling. Wash contaminated clothing before reuse.

---

Section 9. Physical and chemical properties
Not specified
Appearance:
Boiling point: No data
Melting point: No data
Flash point: No data
Density: No data
Molecular formula: C8H7NO5
Molecular weight: 197.1

---

Section 10. Stability and reactivity
Conditions to avoid: Heat, flames and sparks.
Materials to avoid: Oxidizing agents.
Possible hazardous combustion products: Carbon monoxide, nitrogen oxides.

---

Section 11. Toxicological information
No data.

---

Section 12. Ecological information
No data.

---

Section 13. Disposal consideration
Arrange disposal as special waste, by licensed disposal company, in consultation with local waste
disposal authority, in accordance with national and regional regulations.

---

Section 14. Transportation information
Non-harzardous for air and ground transportation.

---

Section 15. Regulatory information
No chemicals in this material are subject to the reporting requirements of SARA Title III, Section
302, or have known CAS numbers that exceed the threshold reporting levels established by SARA
Title III, Section 313.

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

制备方法与用途

用途

3-硝基水杨酸甲酯可作为农药、医药、染料、化纤、橡胶和含能材料等产品的中间体。

制备

传统的合成方法是将水杨酸甲酯直接用硝酸和硫酸的混酸进行硝化，但主要以5-位硝化为主，3-硝基水杨酸甲酯的产率约为10%左右。此外，它还可用于制备药物中间体。

反应信息

• 作为反应物：
  描述：

  3-硝基水杨酸甲酯 在 ammonium hydroxide 、 potassium phosphate 、 tris-(dibenzylideneacetone)dipalladium(0) 、 1,1′-二(二环己基膦)二茂铁 、 5%-palladium/activated carbon 、 氨 、 氢气 、 potassium carbonate 、 lithium hexamethyldisilazane 作用下， 以 四氢呋喃 、 1,4-二氧六环 、 甲醇 、 乙醇 、 水 、 N,N-二甲基甲酰胺 为溶剂， 20.0~95.0 ℃ 、101.33 kPa 条件下， 反应 76.25h， 生成 deucravacitinib
  参考文献：
  名称：

  用于治疗自身免疫性疾病的酪氨酸激酶 2 (TYK2) 的高度选择性抑制：变构抑制剂 BMS-986165 的发现。

  摘要：

  小分子 JAK 抑制剂已成为治疗自身免疫性疾病的重大治疗进展。发现传统上靶向该激酶家族催化活性位点的同种型选择性 JAK 抑制剂一直是一项艰巨的挑战。我们实现 TYK2 高选择性的策略依赖于靶向 TYK2 假激酶 (JH2) 域。在此，我们报告了后期优化工作，包括结构引导设计和水置换策略，这些工作导致发现 BMS-986165 ( 11 ) 作为高亲和力 JH2 配体和 TYK2 的有效变构抑制剂。除了前所未有的 JAK 异构体和激酶组选择性，11显示出优异的药代动力学特性，具有最小的分析能力，并且在多种自身免疫性疾病的小鼠模型中有效。基于这些发现，11似乎与所有其他报道的 JAK 抑制剂不同，并且已作为临床开发中第一个假激酶导向的治疗剂作为自身免疫性疾病的口服治疗而被推进。

  DOI：

  10.1021/acs.jmedchem.9b00444
• 作为产物：
  描述：

  水杨酸甲酯 在 硫酸 、 硝酸 作用下， 以 二氯甲烷 为溶剂， 以25 %的产率得到3-硝基水杨酸甲酯
  参考文献：
  名称：

  金属结合药效团点击衍生的新型广谱金属-β-内酰胺酶抑制剂的发现

  摘要：

  金属-β-内酰胺酶（MBL）的出现赋予了对几乎所有β-内酰胺抗生素（包括碳青霉烯类）的耐药性。目前，缺乏临床上有用的 MBL 抑制剂，因此发现能够有效靶向多种临床相关 MBL 的新抑制剂化学型至关重要。在此，我们报告了一种利用金属结合药效团 (MBP) 点击方法来识别新的广谱 MBL 抑制剂的策略。我们的初步研究确定了几种 MBP，包括邻苯二甲酸、苯基硼酸和苄基磷酸，它们使用叠氮-炔点击反应进行结构转变。随后的结构-活性关系分析导致了几种有效的广谱 MBL 抑制剂的鉴定，包括针对多种 MBL 的 IC 值范围为 0.00012 μM 至 0.64 μM。共晶研究证明了 MBP 在与 MBL 活性位点锚定药效团特征结合方面的重要性，并揭示了与 IMP-1 不寻常的两分子结合模式，强调了灵活的活性位点环在识别结构多样的底物/抑制剂中的关键作用。我们的工作为 MBL 抑制提供了新的化学型，并为针对

  DOI：

  10.1016/j.ejmech.2023.115473

文献信息

• Benzene Sulfonamide Thiazole and Oxazole Compounds
  申请人：Adams Jerry Leroy

  公开号：US20090298815A1

  公开（公告）日：2009-12-03

  The present invention provides thiazole sulfonamide and oxazole sulfonamide compounds, compositions containing the same, as well as processes for the preparation and methods for their use as pharmaceutical agents.

  本发明提供了噻唑磺胺和噁唑磺胺化合物，含有这些化合物的组合物，以及用作药物制剂的制备方法和使用方法。
• Synthesis of 2,3-dihydrobenzo[b][1,4]dioxine-5-carboxamide and 3-oxo-3,4-dihydrobenzo[b][1,4]oxazine-8-carboxamide derivatives as PARP1 inhibitors
  作者：Xuwei Shao、Steven Pak、Uday Kiran Velagapudi、Shruthi Gobbooru、Sai Shilpa Kommaraju、Woon-Kai Low、Gopal Subramaniam、Sanjai Kumar Pathak、Tanaji T. Talele

  DOI：10.1016/j.bioorg.2020.104075

  日期：2020.9

  using recombinant PARP1 enzyme assay that resulted in the acquisition of three PARP1 inhibitors: 3 (IC50 = 12 μM), 4 (IC50 = 5.8 μM), and 10 (IC50 = 0.88 μM). Compound 4 (2,3-dihydro-1,4-benzodioxine-5-carboxamide) was selected as a lead and it was subjected to further chemical modifications, involving analogue synthesis and scaffold hopping. These efforts led to the identification of (Z)-2-(4-hydroxy

  聚（ADP-核糖）聚合酶 1 (PARP1) 是一种广泛探索的抗癌药物靶点，在单链 DNA 断裂修复过程中发挥着重要作用。使用 PARP1-苯并咪唑-4-甲酰胺晶体结构和药效团模型对 Maybridge 小分子文库进行高通量虚拟筛选 (HTVS)，鉴定出 11 种化合物。使用重组 PARP1 酶测定法评估这些化合物，从而获得三种 PARP1 抑制剂：3 (IC 50 = 12 μM)、4 (IC 50 = 5.8 μM) 和10 (IC 50 = 0.88 μM)。化合物4(2,3-dihydro-1,4-benzodioxine-5-carboxamide) 被选为先导化合物，并对其进行了进一步的化学修饰，包括类似物合成和支架跳跃。这些努力导致了 ( Z )-2-(4-hydroxybenzylidene)-3-oxo-3,4-dihydro-2 H - benzo[ b ][1,4]o
• Alpha2C adrenoreceptor agonists
  申请人：McCormick D. Kevin

  公开号：US20070093477A1

  公开（公告）日：2007-04-26

  In its many embodiments, the present invention relates to a novel class of phenylmorpholine and phenylthiomorpholine compounds useful as α2C adrenergic receptor agonists, pharmaceutical compositions containing the compounds, and methods of treatment, prevention, inhibition, or amelioration of one or more diseases associated with the α2C adrenergic receptor agonists using such compounds or pharmaceutical compositions.

  在其多种实施形式中，本发明涉及一类新型的苯基吗啡啶和苯基硫代吗啡啶化合物，这些化合物可用作α2C肾上腺素受体激动剂，包含这些化合物的药物组合物，以及使用这些化合物或药物组合物治疗、预防、抑制或改善与α2C肾上腺素受体激动剂相关的一种或多种疾病的方法。
• THIAZOLIDINE DERIVATIVES AS OREXIN RECEPTOR ANTAGONISTS
  申请人：Aissaoui Hamed

  公开号：US20100113531A1

  公开（公告）日：2010-05-06

  The invention relates to novel thiazolidine derivatives of the formula (I) wherein A and R 1 are as described in the description and their use as medicaments, especially as orexin receptor antagonists.

  本发明涉及式(I)的新噻唑啉衍生物，其中A和R1如描述中所述，以及它们作为药物的使用，尤其是作为食欲素受体拮抗剂的使用。
• 3,4-Di-substituted cyclobutene-1,2-diones as CXC-chemokine receptor ligands
  申请人：Schering Corporation

  公开号：US20040106794A1

  公开（公告）日：2004-06-03

  There are disclosed compounds of the formula 1 or a pharmaceutically acceptable salt or solvate thereof which are useful for the treatment of chemokine-mediated diseases such as acute and chronic inflammatory disorders and cancer.

  这里公开了用于治疗诸如急性和慢性炎症性疾病以及癌症的趋化因子介导疾病的公式1化合物或其药用可接受的盐或溶剂。

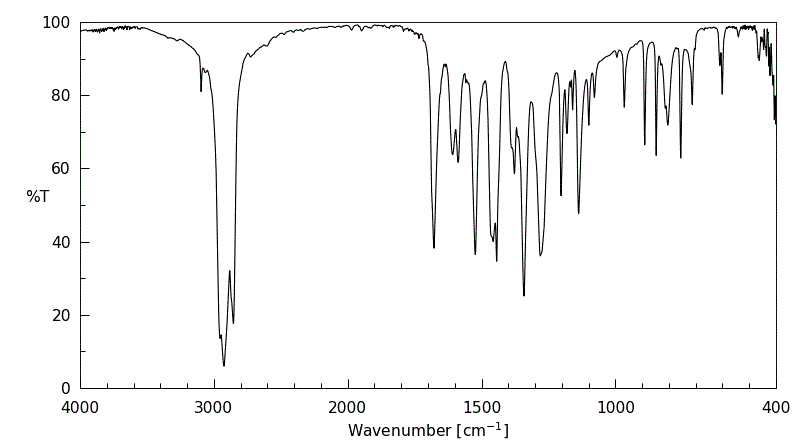

表征谱图
