3-羟基-2-亚甲基丁酸甲酯 | 18020-65-0

• 物质功能分类: 有机原料 - 羧酸类化合物及衍生物 - 羧酸酯及其衍生物
• 分子结构分类: 有机化合物 - 有机酸及其衍生物 - 羟基酸及其衍生物
• 中文名称: 3-羟基-2-亚甲基丁酸甲酯
• 英文名称: methyl 3-hydroxy-2-methylenebutyrate
• 英文别名: methyl 3-hydroxy-2-methylenebutanoate；methyl 2-(1-hydroxyethyl)acrylate；3-hydroxy-2-methylene-butanoic acid methyl ester；methyl 3-hydroxy-2-methylidene-butanoate；methyl 3-hydroxy-2-methylidenebutanoate
• CAS: 18020-65-0
• 化学式: C₆H₁₀O₃
• mdl: MFCD00192302
• 分子量: 130.144
• InChiKey: VLCAYQIMSMPEBW-UHFFFAOYSA-N

物化性质

• 沸点：
  91 °C/20 mmHg (lit.)
• 密度：
  1.071 g/mL at 25 °C (lit.)
• 闪点：
  110 °F
• 稳定性/保质期：

  按规定使用该产品不会发生分解，避免接触氧化剂、高温及明火。

计算性质

• 辛醇/水分配系数(LogP)：
  0.2
• 重原子数：
  9
• 可旋转键数：
  3
• 环数：
  0.0
• sp3杂化的碳原子比例：
  0.5
• 拓扑面积：
  46.5
• 氢给体数：
  1
• 氢受体数：
  3

安全信息

• 危险等级：
  3.2
• 安全说明：
  S16
• 危险类别码：
  R10
• 包装等级：
  III
• 危险类别：
  3.2
• WGK Germany：
  3
• 危险标志：
  GHS02
• 危险品运输编号：
  UN 3272 3/PG 3
• 危险性描述：
  H226
• 储存条件：
  应将样品在2-8°C的环境下冷藏保存，需要保持密封、干燥，并在氩气环境中存储。

SDS

---

Section 1. IDENTIFICATION OF THE SUBSTANCE/MIXTURE
Product identifiers
Product name : Methyl 3-hydroxy-2-methylenebutyrate
CAS-No. : 18020-65-0
Relevant identified uses of the substance or mixture and uses advised against
Identified uses : Laboratory chemicals, Manufacture of substances

---

Section 2. HAZARDS IDENTIFICATION
Classification of the substance or mixture
Classification according to Regulation (EC) No 1272/2008 [EU-GHS/CLP]
Flammable liquids (Category 3)
Classification according to EU Directives 67/548/EEC or 1999/45/EC
Flammable.
Label elements
Labelling according Regulation (EC) No 1272/2008 [CLP]
Pictogram
Signal word Warning
Hazard statement(s)
H226 Flammable liquid and vapour.
Precautionary statement(s) none
Supplemental Hazard none
Statements
According to European Directive 67/548/EEC as amended.
Hazard symbol(s) none
R-phrase(s)
R10 Flammable.
S-phrase(s)
S16 Keep away from sources of ignition - No smoking.
Other hazards - none

---

Section 3. COMPOSITION/INFORMATION ON INGREDIENTS
Substances
Formula : C6H10O3
Molecular Weight : 130,14 g/mol
Component Concentration
Methyl 3-hydroxy-2-methylenebutyrate
CAS-No. 18020-65-0 -

---

Section 4. FIRST AID MEASURES
Description of first aid measures
General advice
Consult a physician. Show this safety data sheet to the doctor in attendance.
If inhaled
If breathed in, move person into fresh air. If not breathing, give artificial respiration. Consult a physician.
In case of skin contact
Wash off with soap and plenty of water. Consult a physician.
In case of eye contact
Flush eyes with water as a precaution.
If swallowed
Do NOT induce vomiting. Never give anything by mouth to an unconscious person. Rinse mouth with
water. Consult a physician.
Most important symptoms and effects, both acute and delayed
To the best of our knowledge, the chemical, physical, and toxicological properties have not been
thoroughly investigated.
Indication of any immediate medical attention and special treatment needed
no data available

---

Section 5. FIREFIGHTING MEASURES
Extinguishing media
Suitable extinguishing media
For small (incipient) fires, use media such as "alcohol" foam, dry chemical, or carbon dioxide. For large
fires, apply water from as far as possible. Use very large quantities (flooding) of water applied as a mist or
spray; solid streams of water may be ineffective. Cool all affected containers with flooding quantities of
water.
Special hazards arising from the substance or mixture
Carbon oxides
Advice for firefighters
Wear self contained breathing apparatus for fire fighting if necessary.
Further information
Use water spray to cool unopened containers.

---

Section 6. ACCIDENTAL RELEASE MEASURES
Personal precautions, protective equipment and emergency procedures
Avoid breathing vapors, mist or gas. Remove all sources of ignition. Beware of vapours accumulating to
form explosive concentrations. Vapours can accumulate in low areas.
Environmental precautions
Prevent further leakage or spillage if safe to do so. Do not let product enter drains.
Methods and materials for containment and cleaning up
Contain spillage, and then collect with an electrically protected vacuum cleaner or by wet-brushing and
place in container for disposal according to local regulations (see section 13).
Reference to other sections
For disposal see section 13.

---

Section 7. HANDLING AND STORAGE
Precautions for safe handling
Avoid inhalation of vapour or mist.
Keep away from sources of ignition - No smoking.Take measures to prevent the build up of electrostatic
charge.
Conditions for safe storage, including any incompatibilities
Store in cool place. Keep container tightly closed in a dry and well-ventilated place. Containers which are
opened must be carefully resealed and kept upright to prevent leakage.
Recommended storage temperature: 2 - 8 °C
Specific end use(s)
no data available

---

Section 8. EXPOSURE CONTROLS/PERSONAL PROTECTION
Control parameters
Components with workplace control parameters
Exposure controls
Appropriate engineering controls
Handle in accordance with good industrial hygiene and safety practice. Wash hands before breaks and
at the end of workday.
Personal protective equipment
Eye/face protection
Face shield and safety glasses Use equipment for eye protection tested and approved under
appropriate government standards such as NIOSH (US) or EN 166(EU).
Skin protection
Handle with gloves. Gloves must be inspected prior to use. Use proper glove removal technique
(without touching glove's outer surface) to avoid skin contact with this product. Dispose of
contaminated gloves after use in accordance with applicable laws and good laboratory practices.
Wash and dry hands.
The selected protective gloves have to satisfy the specifications of EU Directive 89/686/EEC and
the standard EN 374 derived from it.
Body Protection
Impervious clothing., Flame retardant antistatic protective clothing, The type of protective
equipment must be selected according to the concentration and amount of the dangerous
substance at the specific workplace.
Respiratory protection
Where risk assessment shows air-purifying respirators are appropriate use a full-face respirator
with multi-purpose combination (US) or type ABEK (EN 14387) respirator cartridges as a backup
to engineering controls. If the respirator is the sole means of protection, use a full-face supplied air
respirator. Use respirators and components tested and approved under appropriate government
standards such as NIOSH (US) or CEN (EU).

---

Section 9. PHYSICAL AND CHEMICAL PROPERTIES
Information on basic physical and chemical properties
a) Appearance Form: liquid
Colour: colourless
b) Odour no data available
c) Odour Threshold no data available
d) pH no data available
e) Melting point/freezing no data available
point
f) Initial boiling point and 91 °C at 27 hPa - lit.
boiling range
g) Flash point 43 °C - closed cup
h) Evaporation rate no data available
i) Flammability (solid, gas) no data available
j) Upper/lower no data available
flammability or
explosive limits
k) Vapour pressure no data available
l) Vapour density no data available
m) Relative density 1,071 g/cm3 at 25 °C
n) Water solubility no data available
o) Partition coefficient: n- no data available
octanol/water
p) Auto-ignition no data available
temperature
q) Decomposition no data available
temperature
r) Viscosity no data available
s) Explosive properties no data available
t) Oxidizing properties no data available
Other safety information
no data available

---

Section 10. STABILITY AND REACTIVITY
Reactivity
no data available
Chemical stability
no data available
Possibility of hazardous reactions
no data available
Conditions to avoid
Heat, flames and sparks.
Incompatible materials
Strong oxidizing agents
Hazardous decomposition products
Other decomposition products - no data available

---

Section 11. TOXICOLOGICAL INFORMATION
Information on toxicological effects
Acute toxicity
no data available
Skin corrosion/irritation
no data available
Serious eye damage/eye irritation
no data available
Respiratory or skin sensitization
no data available
Germ cell mutagenicity
no data available
Carcinogenicity
IARC: No component of this product present at levels greater than or equal to 0.1% is identified as
probable, possible or confirmed human carcinogen by IARC.
Reproductive toxicity
no data available
Specific target organ toxicity - single exposure
no data available
Specific target organ toxicity - repeated exposure
no data available
Aspiration hazard
no data available
Potential health effects
Inhalation May be harmful if inhaled. May cause respiratory tract irritation.
Ingestion May be harmful if swallowed.
Skin May be harmful if absorbed through skin. May cause skin irritation.
Eyes May cause eye irritation.
Signs and Symptoms of Exposure
To the best of our knowledge, the chemical, physical, and toxicological properties have not been
thoroughly investigated.
Additional Information
RTECS: Not available

---

Section 12. ECOLOGICAL INFORMATION
Toxicity
no data available
Persistence and degradability
no data available
Bioaccumulative potential
no data available
Mobility in soil
no data available
Results of PBT and vPvB assessment
no data available
Other adverse effects
no data available

---

Section 13. DISPOSAL CONSIDERATIONS
Waste treatment methods
Product
Burn in a chemical incinerator equipped with an afterburner and scrubber but exert extra care in igniting
as this material is highly flammable. Offer surplus and non-recyclable solutions to a licensed disposal
company. Contact a licensed professional waste disposal service to dispose of this material.
Contaminated packaging
Dispose of as unused product.

---

Section 14. TRANSPORT INFORMATION
UN number
ADR/RID: 3272 IMDG: 3272 IATA: 3272
UN proper shipping name
ADR/RID: ESTERS, N.O.S. (Methyl 3-hydroxy-2-methylenebutyrate)
IMDG: ESTERS, N.O.S. (Methyl 3-hydroxy-2-methylenebutyrate)
IATA: Esters, n.o.s. (Methyl 3-hydroxy-2-methylenebutyrate)
Transport hazard class(es)
ADR/RID: 3 IMDG: 3 IATA: 3
Packaging group
ADR/RID: III IMDG: III IATA: III
Environmental hazards
ADR/RID: no IMDG Marine Pollutant: no IATA: no
Special precautions for user
no data available

---

---

SECTION 15 - REGULATORY INFORMATION
N/A

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

反应信息

• 作为反应物：
  描述：

  3-羟基-2-亚甲基丁酸甲酯 在 咪唑 、 indium 、 N-溴代丁二酰亚胺(NBS) 、 水 、 二异丁基氢化铝 、 三苯基膦 作用下， 以 四氢呋喃 、 二氯甲烷 、 N,N-二甲基甲酰胺 为溶剂， 反应 23.0h， 生成 4-(tert-butyldiphenylsilyloxy)-3-methylenepentan-1-ol
  参考文献：
  名称：

  Antillatoxin 的全合成研究：铟介导的羰基化合物与仲烯丙基溴在水性介质中的烯丙基化反应

  摘要：

  我们已经建立了一种新的反应条件，用于在水性介质中将惰性仲烯丙基溴与醛进行铟介导的烯丙基化，以高产率和顺式非对映选择性提供相应的高烯丙醇。此外，它为在温和和环境有利的条件下全合成抗霉毒素提供了一个容易进入的关键中间体。

  DOI：

  10.1055/s-2002-35606
• 作为产物：
  描述：

  3-Hydroperoxy-2-methylene-butyric acid methyl ester 在 bis(acetylacetonate)oxovanadium 氧气 、 tetraphenylporphyrin 作用下， 以 二氯甲烷 为溶剂， 反应 2.0h， 以73%的产率得到3-羟基-2-亚甲基丁酸甲酯
  参考文献：
  名称：

  Photooxygenation of olefins in the presence of titanium(IV) catalyst. A convienient "one-pot" synthesis of epoxy alcohols.

  摘要：

  DOI：

  10.1021/ja00183a032

文献信息

• Beta-Amino-Acid derivatives as inhibitors of matrix metalloproteases and TNF-Alpha
  申请人：——

  公开号：US20020013341A1

  公开（公告）日：2002-01-31

  The present application describes novel &bgr;-amino acid derivatives of formula I: 1 or pharmaceutically acceptable salt or prodrug forms thereof, wherein A, X, Z, U a , X a , Y a , Z a , R 1 , R 2 , R 3 , R 4 , and R 4a are defined in the present specification, which are useful as metalloprotease and/or as TNF-&agr; inhibitors.

  本申请描述了式I的新型β-氨基酸衍生物： 1 或其药用可接受的盐或前药形式，其中A、X、Z、U a 、X a 、Y a 、Z a 、R 1 、R 2 、R 3 、R 4 和R 4a 在本规范中有定义，这些衍生物可用作金属蛋白酶和/或TNF-α抑制剂。
• Total Synthesis and Cytotoxicity of Haterumalides NA and B and Their Artificial Analogues
  作者：Mitsuru Ueda、Masashi Yamaura、Yoichi Ikeda、Yuta Suzuki、Kensaku Yoshizato、Ichiro Hayakawa、Hideo Kigoshi

  DOI：10.1021/jo802806z

  日期：2009.5.1

  first-generation approach for ent-haterumalide NA methyl ester, this second-generation synthesis yielded much more of the key intermediate. This synthesis established the relative stereochemistry of haterumalide B. Furthermore, the structure−cytotoxicity relationships of haterumalides were investigated. The combination of macrolide and side chain parts proved to be important to the cytotoxicity.

  通过使用B-烷基铃木-宫浦偶联和Nozaki-Hiyama-Kishi偶联作为关键步骤，实现了有效的细胞毒性海洋大环内酯类-香樟内酯NA和B的总合成。与我们的第一代方法-对苯二酚内酯NA甲酯相比，该第二代合成方法产生了更多的关键中间体。这种合成建立了贝雷帽内酯B的相对立体化学。此外，研究了贝帽熊内酯的结构-细胞毒性关系。大环内酯和侧链部分的组合被证明对细胞毒性很重要。
• Enzymatic process for preparing optically active 3-substituted
  申请人：Fujisawa Pharmaceutical Co., Ltd.

  公开号：US05241064A1

  公开（公告）日：1993-08-31

  Preparation of optically active 3-substituted azetidinones of the formula (I) ##STR1## in which R.sup.1 is a hydroxy-protective group wherein an allylic alcohol of the formula (II) ##STR2## is acylated, then subjected to asymmetric enzymatic hydrolysis yielding the R-allylic alcohol. The hydroxyl group is protected and then stereoselectively reacted with an amine which is subsequently cyclized to yield the desired 3-substituted azetidinone. Two new species of microorganisms have been isolated, Pimelobacter sp. No. 1254 and Bacillus megaterium No. 1253 which exhibit stereoselective esterase activity.

  公式（I）中的光学活性3-取代氮杂环酮的制备##STR1##其中R.sup.1是一个羟基保护基，其中烯丙醇的公式（II）##STR2##被酰化，然后经过不对称酶催化水解产生R-烯丙醇。羟基被保护，然后与随后环化的胺立体选择性地反应，以产生所需的3-取代氮杂环酮。已经分离出两种新的微生物物种，Pimelobacter sp. No. 1254和Bacillus megaterium No. 1253，它们表现出立体选择性酯酶活性。
• HERBICIDALLY ACTIVE 3-PHENYLISOXAZOLINE-5-CARBOXAMIDES OF TETRAHYDRO- AND DIHYDROFURANCARBOXAMIDES
  申请人：BAYER AKTIENGESELLSCHAFT

  公开号：US20200216403A1

  公开（公告）日：2020-07-09

  The invention relates to 3-phenylisoxazoline-5-carboxamides of tetrahydro and dihydrofuran carboxamides of general formula (I) and to their agrochemically compatible salts (I) as well as to the use thereof in the field of plant protection.

  这项发明涉及一般式(I)的3-苯基异噁唑啉-5-羧酰胺以及其农药兼容盐(I)，以及它们在植物保护领域中的应用。
• [EN] FORCE-RESPONSIVE POLYMERSOMES AND NANOREACTORS; PROCESSES UTILIZING THE SAME<br/>[FR] POLYMERSOMES ET NANORÉACTEURS SENSIBLES À LA FORCE; PROCÉDÉS LES UTILISANT
  申请人：ADOLPHE MERKLE INSTITUTE UNIV OF FRIBOURG

  公开号：WO2019034597A1

  公开（公告）日：2019-02-21

  The mechanically induced melting properties of DNA were employed to achieve force labile membranes is described. Nucleobase pairs were used as mechanophores. Adenine and thymine functionalized complementary amphiphilic block copolymers were self-assembled into polymersomes. The nucleobases formed hydrogen bonds which were disrupted upon force stimulation. The exposure of the disconnected nucleobases to the hydrophobic matrix of the membranes lead to a change of permeability which permitted the exchange of water-soluble molecules throughout the polymer matrix. Moreover, the encapsulation of horseradish peroxidase enabled the reaction of luminol with hydrogen peroxide to yield a luminescence producing species similar to the marine bioluminescence. Moreover, the same nano-reactors were employed to catalyze the formation of a polyacrylamide gel when force was applied. Insights into the change of permeability of supramolecular networks upon force are provided. These systems are useful for drug delivery, as nanoreactors and for the selective release of curing agents for 3D printing, or fragrances.

  DNA的机械诱导熔化特性被用来实现易受力破裂的膜。核碱基对被用作机械感受器。腺嘌呤和胸腺嘧啶功能化的互补两性分块共聚物自组装成聚合体囊。核碱基形成氢键，在受力刺激下被破坏。断开的核碱基暴露在膜的疏水基质中，导致渗透性的改变，从而允许水溶性分子在聚合物基质中交换。此外，封装辣根过氧化物酶使得辣根酰胺与过氧化氢反应产生类似海洋生物发光的发光物种。此外，当施加力时，相同的纳米反应器被用来催化聚丙烯酰胺凝胶的形成。提供了关于受力下超分子网络渗透性变化的见解。这些系统可用于药物传递、纳米反应器以及用于3D打印的固化剂或香料的选择性释放。

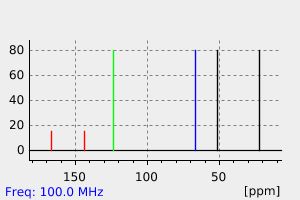

表征谱图
