草酸铜 | 814-91-5

• 物质功能分类: 有机原料 - 羧酸类化合物及衍生物 - 羧酸酯及其衍生物的盐
• 分子结构分类: 有机化合物 - 有机酸及其衍生物 - 羧酸及其衍生物
• 中文名称: 草酸铜
• 中文别名: 乙二酸铜半水合物；草酸铜(II)半水合物；乙二酸铜；草酸铜(II)
• 英文名称: copper(II) oxalate
• 英文别名: copper oxalate；Cupric oxalate；copper;oxalate
• CAS: 814-91-5
• 化学式: C₂CuO₄
• 分子量: 151.566
• InChiKey: QYCVHILLJSYYBD-UHFFFAOYSA-L

物化性质

• 熔点：
  anhydrous decomposes at ~300 to copper oxide [HAW93]
• 溶解度：
  可溶于水基（轻微）
• 物理描述：
  Cupric oxalate is an odorless bluish-white solid. Denser than water and insoluble in water. Hence sinks in water. Used as a catalysts for organic reactions.
• 颜色/状态：
  Blue-white powder
• 密度：
  greater than 1 at 68 °F (USCG, 1999)
• 分解：
  Dangerous; when heated to decomposition they emit toxic and irritating fumes. /Oxalates/

计算性质

• 辛醇/水分配系数(LogP)：
  -3.52
• 重原子数：
  7
• 可旋转键数：
  0
• 环数：
  0.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  80.3
• 氢给体数：
  0
• 氢受体数：
  4

ADMET

毒理性

• 副作用

职业性肝毒素 - 第二性肝毒素：在职业环境中的毒性效应潜力是基于人类摄入或动物实验的中毒案例。

Occupational hepatotoxin - Secondary hepatotoxins: the potential for toxic effect in the occupational setting is based on cases of poisoning by human ingestion or animal experimentation.

来源:Haz-Map, Information on Hazardous Chemicals and Occupational Diseases

毒理性

• 人类毒性摘录

刺激皮肤和眼睛。... 吸入会刺激鼻子和喉咙。/草酸铜半水合物/

Irritating to skin & eyes. ... Inhalation causes irritation of nose & throat. /Cupric oxalate hemihydrate/

来源:Hazardous Substances Data Bank (HSDB)

毒理性

• 非人类毒性摘录

鸟对用味道驱避剂——醋酸铜处理的食物的反应各不相同，这减少了被圈养且容易获得无限替代食物的鸟所消费的处理食物的量，尽管醋酸铜对自由觅食的鸟无效。一旦醋酸铜从食物中移除，食物消耗量就会恢复正常。

Birds varied in their response to food treated with a taste repellent cupric oxalate /which/ reduced the amt of treated food consumed by captive birds having easy access to unlimited alternate food supplies, although cupric oxalate was ineffective against free ranging birds. Once cupric oxalate /was/ removed from food, food consumption returned to normal.

来源:Hazardous Substances Data Bank (HSDB)

安全信息

• 危险等级：
  6.1(b)
• 安全说明：
  S36
• 危险类别码：
  R20/21/22
• 海关编码：
  2917119000
• 包装等级：
  III
• 危险类别：
  6.1(b)
• 危险品运输编号：
  UN 2449
• 危险性防范说明：
  P261,P264,P270,P271,P280,P302+P352,P304+P340,P310,P330,P361,P403+P233,P405,P501
• 危险性描述：
  H301,H311,H331
• 储存条件：
  库房应通风、低温且干燥，并需远离明火、摩擦及火花，同时要与氧化剂分开储存和运输。

SDS

---

Section 1: Product Identification
Chemical Name: Copper (II) oxalate hemihydrate
CAS Registry Number: 814-91-5
Formula: CuC2O4.0.5H2O
EINECS Number: none
Chemical Family: salt of an organic acid
Synonym: copper oxalate, Oxalic acid, copper salt.

---

Section 2: Composition and Information on Ingredients
Ingredient CAS Number Percent ACGIH (TWA) OSHA (PEL)
Title Compound 814-91-5 100% 1mg/m3 (as Cu) 1mg/m3 (as Cu)

---

Section 3: Hazards Identification
Soluble oxalates are harmful if swallowed. They precipitate calcium from the bloodstream causing violent
Emergency Overview:
muscular stimulation, convulsions, collapse, and death.
Primary Routes of Exposure: Ingestion, Inhalation of dust.
Eye Contact: May cause moderate to severe irritation of the eyes.
Skin Contact: May cause moderate to severe irritation of the skin.
Inhalation: Dust may be severely irritating to the nose, mucous membranes and respiratory tract.
Ingestion: Ingestion may cause vomiting, pain, violent muscular stimulation, convulsions, collapse, and death.
Soluble oxalates remove calcium from the bloodstream. This interferes with the central nervous system
Acute Health Affects:
causing violent convulsions and death. Large amounts of copper salts are toxic when ingested.
Prolonged exposure to oxalates can lead to kidney failure resulting from calcium oxalate precipitation in renal
Chronic Health Affects:
tubes. Copper compounds may cause liver and kidney disease.
NTP: No
IARC: No
OSHA: No

---

SECTION 4: First Aid Measures
Immediately flush the eyes with copious amounts of water for at least 10-15 minutes. A victim may need
Eye Exposure:
assistance in keeping their eye lids open. Get immediate medical attention.
Wash the affected area with soap and water. Remove contaminated clothes if necessary. Seek medical
Skin Exposure:
assistance if irritation persists.
Remove the victim to fresh air. Closely monitor the victim for signs of respiratory problems, such as difficulty
Inhalation:
in breathing, coughing, wheezing, or pain. In such cases seek immediate medical assistance.
Antidotes are said to be soluble calcium given orally, and calcium gluconate given intravenously, to be
Ingestion:
administered by trained medical personnel. Keep the victim calm. Give the victim water (only if conscious).

---

SECTION 5: Fire Fighting Measures
Flash Point: not applicable
Autoignition Temperature: none
Explosion Limits: none
Extinguishing Medium: carbon dioxide, dry powder or foam
If involved in a fire, fire fighters should be equipped with a NIOSH approved positive pressure self-contained
Special Fire Fighting Procedures:
breathing apparatus and full protective clothing.
Hazardous Combustion and If involved in a fire this material may emit toxic organic fumes.
Decomposion Products:
Unusual Fire or Explosion Hazards: No unusual fire or explosion hazards.

---

SECTION 6: Accidental Release Measures
Spill and Leak Procedures: Small spills can be mixed with vermiculite or sodium carbonate and swept up.

---

SECTION 7: Handling and Storage
Handling and Storage: Store in a sealed container. Keep away from heat and moisture.

---

SECTION 8: Exposure Controls and Personal Protection
Eye Protection: Always wear approved safety glasses when handling a chemical substance in the laboratory.
Skin Protection: Wear appropriate chemical resistant gloves and protective clothing.
Ventilation: Material may form a fine dust. If possible, handle the material in an efficient fume hood.
If in form of fine dust and ventilation is not available a respirator should be worn. The use of respirators
Respirator:
requires a Respirator Protection Program to be in compliance with 29 CFR 1910.134.
Ventilation: Material may form a fine dust. If possible, handle the material in an efficient fume hood.
Additional Protection: No additional protection required.

---

SECTION 9: Physical and Chemical Properties
Color and Form: blue pwdr.
Molecular Weight: 151.57 (160.57)
Melting Point: no data
Boiling Point: no data
Vapor Pressure: no data
Specific Gravity: no data
Odor: none
Solubility in Water: Insoluble

---

SECTION 10: Stability and Reactivity
Stability: air and moisture stable solid
Hazardous Polymerization: no hazardous polymerization
Conditions to Avoid: none
Incompatibility: Oxidizing agents and active metals
Decomposition Products: Carbon dioxide, carbon monoxide, organic vapors, and metal oxides and carbonates.

---

SECTION 11: Toxicological Information
RTECS Data: No specific information available on this product.
Carcinogenic Effects: No data available
Mutagenic Effects: No data available
Tetratogenic Effects: No data available

---

SECTION 12: Ecological Information
Ecological Information: No information available

---

SECTION 13: Disposal Considerations
Disposal: Dispose of according to local, state and federal regulations.

---

SECTION 14: Transportation
Shipping Name (CFR): Non-hazardous
Hazard Class (CFR): NA
Additional Hazard Class (CFR): NA
Packaging Group (CFR): NA
UN ID Number (CFR): NA
Shipping Name (IATA): Non-hazardous
Hazard Class (IATA): NA
Additional Hazard Class (IATA): NA
Packaging Group (IATA): NA
UN ID Number (IATA): NA

---

SECTION 15: Regulatory Information
TSCA: Listed in the TSCA inventory.
SARA (Title 313): Title compound: See Category Code N100 for reporting.
Second Ingredient: none

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

制备方法与用途

类别：爆炸物品

爆炸物危险特性 在火中可爆。

可燃性危险特性 可燃，火场排出含氧化铜的辛辣刺激烟雾。

储运特性 应存放在库房通风、低温和干燥的地方；需防明火、摩擦和火花，并与氧化剂分开储存和运输。

灭火剂 水、二氧化碳、干粉、泡沫。

职业标准 时间加权平均浓度（TWA）：0.05毫克/立方米（铜）。

反应信息

• 作为反应物：
  描述：

  草酸铜 在 氢气 作用下， 以 solid 为溶剂， 生成 铜
  参考文献：
  名称：

  某些过渡金属草酸盐在选定气氛中的热反应性比较研究

  摘要：

  摘要 对六种二价过渡金属（阳离子：锰、铁、钴、镍、铜和锌）的草酸盐在交替流动气氛、惰性（N 2 、CO）中的非等温、固态热分解进行了比较研究。 2 )、还原(H 2 )和氧化(空气)。导数热重法 (DTG) 和差示扫描量热法 (DSC) 响应峰最大值提供了反应温度的测量，已被用于确定盐的反应性，从而表征控制这组化学相关反应物的相对稳定性的因素。确定了两个趋势。趋势（1）：在惰性和还原性气氛中，分解温度（盐稳定性）随着二价过渡金属氧化物 MO 形成焓的增加而增加。得出的结论是，阳离子-氧（草酸盐）键的断裂是决定该组中盐稳定性的参数。趋势（2）：分解温度从惰性/还原气氛中的反应值降低到氧化气氛中的反应值随着 MO 和其他参与氧化物（MO 3/2 或 MO 1/ 2）。阳离子化合价的变化倾向于促进反应，O 2 中的大多数分解发生在较低温度下，但在这组反应物中，效应的大小变化很大。讨论了观察到的化

  DOI：

  10.1016/j.tca.2004.08.021
• 作为产物：
  描述：

  dipotassium bisoxalato copper(II) dihydrate 以 水 为溶剂， 生成 草酸铜
  参考文献：
  名称：

  Vogel, F. C., Schweizer Journal, 1811, vol. 2, p. 435 - 474

  摘要：

  DOI：
• 作为试剂：
  描述：

  聚合甲醛 、 乙醛 在 calcium hydroxide 、 水 、 草酸铜 作用下， 生成 季戊四醇
  参考文献：
  名称：

  Issoire, Memorial des Poudres, 1948, vol. 30, p. 77,81

  摘要：

  DOI：

文献信息

• Thermal decomposition of carbonates, carboxylates, oxalates, acetates, formates, and hydroxides
  作者：Jacob Mu、D.D. Perlmutter

  DOI：10.1016/0040-6031(81)80175-x

  日期：1981.11

  Abstract A study is reported of the controlled decomposition of various metal carbonates, carboxylates, oxalates, acetates, formates and hydroxides and their common hydrates, carried out in a thermogravimetric analyzer, a differential scanning calorimeter, and a differential thermal analyzer. Various sample sizes, heating rates, and ambient atmospheres were used to demonstrate their influence on the

  摘要 报道了在热重分析仪、差示扫描量热仪和差示热分析仪中进行的各种金属碳酸盐、羧酸盐、草酸盐、乙酸盐、甲酸盐和氢氧化物及其常见水合物的受控分解的研究。使用各种样品尺寸、加热速率和环境气氛来证明它们对结果的影响。给出了中间化合物、每种化合物的分解温度范围和反应动力学的结果。
• Mimicking mineral neogenesis for the clean synthesis of metal–organic materials from mineral feedstocks: coordination polymers, MOFs and metal oxide separation
  作者：Feng Qi、Robin S. Stein、Tomislav Friščić

  DOI：10.1039/c3gc41370e

  日期：——

  We present a systematic study of a mild approach for the activation of metal oxides, involving reactivity and self-assembly in the solid state, which enables their solvent-free chemical separation and direct solvent-free and low-energy conversion into coordination polymers and open metal–organic frameworks (MOFs). The approach is inspired by geological biomineralization processes known as mineral weathering

  我们对缓和金属氧化物活化的方法进行了系统的研究，涉及固态的反应性和自组装，这使它们能够无溶剂地进行化学分离，并将无溶剂的低能直接转化为配位聚合物并开放金属有机框架（MOF）。该方法受称为矿物风化的地质生物矿化过程的启发，其中氧化物或硫化物矿物长期暴露于生物起源分子会导致其转化为简单的配位聚合物。这项原理证明研究表明，如何在实验室中模仿矿物新生，从而直接从金属氧化物中提供配位聚合物，而无需大量输入热能或机械能或溶剂。II，Co II，Ni II，Cu II和Zn）和主族（Mg和Pb II）在室温或接近室温的氧化物。加速的老化反应很容易定为至少10克，并且可以作为模板来合成Zn，Ni（ II）和Co（ II）的二维和三维阴离子框架。最后，我们证明了这种以生物矿化为灵感的方法如何在温和条件下为氧化物形式的贱金属（如Cu，Zn和Pb）的无溶剂化学分离提供了前所未有的机会。
• Evaluation of cobalt oxide, copper oxide and their solid solutions as heterogeneous catalysts for Fenton-degradation of dye pollutants
  作者：Yi Shen、Zhihui Zhang、Kaijun Xiao

  DOI：10.1039/c5ra18923c

  日期：——

  Co_0.5Cu_0.5O nanoparticles were synthesized via the calcination of corresponding oxalates and showed outstanding catalytic performance for the Fenton-degradation of Congo red.

  通过煅烧相应的草酸盐合成了Co_0.5Cu_0.5O纳米颗粒，并在康果红的Fenton降解中展现出优异的催化性能。
• Synthesis and thermal behaviour of some oxalate complexes of bivalent metals Mn, Co, Ni, Cu, Zn and Cd
  作者：Vera Jordanovska、Rudolph Trojko、Nikola Galešić

  DOI：10.1016/0040-6031(92)85092-a

  日期：1992.4

  Abstract The reaction of M(II) oxalate (M = Mn, Co, Ni, Zn or Cd) with monomethylammonium oxalate in the presence of monomethylamine gives different compounds, depending on the metal atom. For M = Ni, Co or Zn double oxalates with the general empirical formula (CH3NH3)4M(C2O4)3· nH2O (where n = 2 for Zn and Co, and n = 1 for Ni) are obtained, whilst for M = Cd or Mn the monomethylamine complexes (CH3NH3

  摘要 M(II) 草酸盐（M = Mn、Co、Ni、Zn 或 Cd）与单甲基草酸铵在单甲胺存在下反应生成不同的化合物，这取决于金属原子。对于 M = Ni、Co 或 Zn，可得到具有一般经验公式 (CH3NH3)4M(C2O4)3·nH2O（其中 Zn 和 Co 的 n = 2，Ni 的 n = 1）的双草酸盐，而 M = Cd或Mn，分别得到一甲胺配合物(CH3NH3)2Cd(C2O4)2·(CH3NH2)·H2O和(CH3NH3)2Mn(C2O4)3·(CH3NH2)2·H2O。将草酸铜 (II) 溶解在浓氨水中得到二胺草酸铜 (II) 二水合物。X 射线粉末衍射图表明，除了 Co 和 Zn 的配合物是同构的外，配合物具有不同的结构。
• Pb(OF)Cu₃(SeO₃)₂(NO₃): a selenite fluoride nitrate with a breathing kagomé lattice
  作者：Mengsi Zhang、Zhiying Zhao、Wanwan Zhang、Jinyang Li、Xiaoying Huang、Zhangzhen He

  DOI：10.1039/d0cc03684f

  日期：——

  A spin-1/2 breathing kagomé compound Pb(OF)Cu₃(SeO₃)₂(NO₃) exhibits ferromagnetic interactions inside the layers and antiferromagnetic interactions between the neighboring layers.

  一个自旋1/2的呼吸卡格米化合物Pb(OF)Cu3(SeO3)2(NO3)在层内表现出铁磁相互作用，在相邻层之间表现出反铁磁相互作用。

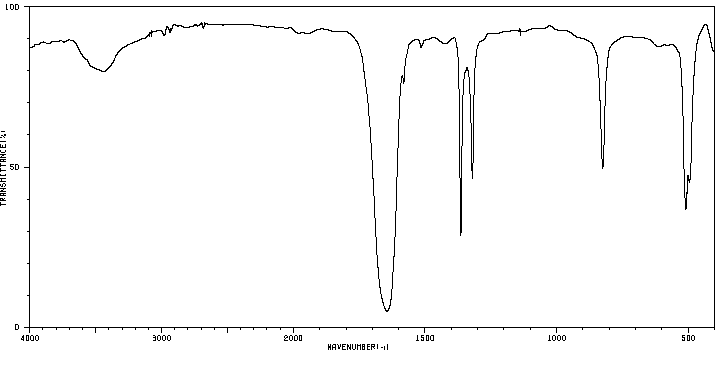

表征谱图
