1,2,3,4,5,6,7,8,13,13,14,14-dodecachloro-1,4,4a,4b,5,8,8a,12b-octahydro-10-methyl-1,4;5,8-dimethanotriphenylene | 4605-91-8

• 物质功能分类: 化学试剂 - 有机试剂 - 多环化合物
• 分子结构分类: 有机化合物 - 苯类化合物 - 菲及其衍生物
• 英文名称: 1,2,3,4,5,6,7,8,13,13,14,14-dodecachloro-1,4,4a,4b,5,8,8a,12b-octahydro-10-methyl-1,4;5,8-dimethanotriphenylene
• 英文别名: 1,2,3,4,5,6,7,8,13,13,14,14-Dodecachloro-1,4,4a,4b,5,8,8a,12b-octahydro-10-methyl-1,4:5,8-dimethanotriphenylene；1,4,5,6,7,16,17,18,19,19,20,20-dodecachloro-11-methylhexacyclo[14.2.1.14,7.02,15.03,8.09,14]icosa-5,9(14),10,12,17-pentaene
• CAS: 4605-91-8
• 化学式: C₂₁H₁₀Cl₁₂
• 分子量: 687.746
• InChiKey: IBGAOSYQYASNKV-UHFFFAOYSA-N

物化性质

• 熔点：
  158-161 °C(lit.)
• 沸点：
  696.75°C (rough estimate)
• 密度：
  1.5048 (rough estimate)
• 稳定性/保质期：
  避免与不相容的材料接触。

计算性质

• 辛醇/水分配系数(LogP)：
  8.2
• 重原子数：
  33
• 可旋转键数：
  0
• 环数：
  6.0
• sp3杂化的碳原子比例：
  0.52
• 拓扑面积：
  0
• 氢给体数：
  0
• 氢受体数：
  0

安全信息

• 安全说明：
  S24/25
• WGK Germany：
  3
• 海关编码：
  29036990

SDS

Name:	2-Methylnaphthalene-bis(hexachlorocyclo- pentadiene) adduct 97% Material Safety Data Sheet
Synonym:	None
CAS:	4605-91-8

Section 1 - Chemical Product MSDS Name:2-Methylnaphthalene-bis(hexachlorocyclo- pentadiene) adduct 97% Material Safety Data Sheet
Synonym:None

---

Section 2 - COMPOSITION, INFORMATION ON INGREDIENTS

CAS#	Chemical Name	content	EINECS#
4605-91-8	2-methylnaphthalene-bis(hexachlorocycl	97.0	225-009-9

Hazard Symbols: None Listed.
Risk Phrases: None Listed.

---

Section 3 - HAZARDS IDENTIFICATION
EMERGENCY OVERVIEW
The toxicological properties of this material have not been fully investigated.
Potential Health Effects
Eye:
May cause eye irritation.
Skin:
May cause skin irritation.
Ingestion:
May cause irritation of the digestive tract. The toxicological properties of this substance have not been fully investigated.
Inhalation:
May cause respiratory tract irritation. The toxicological properties of this substance have not been fully investigated.
Chronic:
No information found.

---

Section 4 - FIRST AID MEASURES
Eyes: Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper and lower eyelids. Get medical aid immediately.
Skin:
Get medical aid. Flush skin with plenty of water for at least 15 minutes while removing contaminated clothing and shoes. Wash clothing before reuse.
Ingestion:
If victim is conscious and alert, give 2-4 cupfuls of milk or water.
Never give anything by mouth to an unconscious person. Get medical aid immediately.
Inhalation:
Remove from exposure and move to fresh air immediately. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Get medical aid.
Notes to Physician:
Antidote: None reported.

---

Section 5 - FIRE FIGHTING MEASURES
General Information:
As in any fire, wear a self-contained breathing apparatus in pressure-demand, MSHA/NIOSH (approved or equivalent), and full protective gear. During a fire, irritating and highly toxic gases may be generated by thermal decomposition or combustion.
Extinguishing Media:
Use water spray, dry chemical, carbon dioxide, or appropriate foam.

---

Section 6 - ACCIDENTAL RELEASE MEASURES
General Information: Use proper personal protective equipment as indicated in Section 8.
Spills/Leaks:
Clean up spills immediately, observing precautions in the Protective Equipment section. Sweep up or absorb material, then place into a suitable clean, dry, closed container for disposal. Avoid generating dusty conditions. Provide ventilation.

---

Section 7 - HANDLING and STORAGE
Handling:
Wash thoroughly after handling. Remove contaminated clothing and wash before reuse. Use with adequate ventilation. Minimize dust generation and accumulation. Avoid contact with eyes, skin, and clothing. Keep container tightly closed. Avoid ingestion and inhalation.
Storage:
Keep container closed when not in use. Store in a tightly closed container. Store in a cool, dry, well-ventilated area away from incompatible substances.

---

Section 8 - EXPOSURE CONTROLS, PERSONAL PROTECTION
Engineering Controls:
Use adequate ventilation to keep airborne concentrations low.
Exposure Limits CAS# 4605-91-8: Personal Protective Equipment Eyes: Wear appropriate protective eyeglasses or chemical safety goggles as described by OSHA's eye and face protection regulations in 29 CFR 1910.133 or European Standard EN166.
Skin:
Wear appropriate protective gloves to prevent skin exposure.
Clothing:
Wear appropriate protective clothing to prevent skin exposure.
Respirators:
Follow the OSHA respirator regulations found in 29 CFR 1910.134 or European Standard EN 149. Use a NIOSH/MSHA or European Standard EN 149 approved respirator if exposure limits are exceeded or if irritation or other symptoms are experienced.

---

Section 9 - PHYSICAL AND CHEMICAL PROPERTIES

Physical State: Powder
Color: off-white
Odor: Not available.
pH: Not available.
Vapor Pressure: Not available.
Viscosity: Not available.
Boiling Point: Not available.
Freezing/Melting Point: 162.00 - 165.00 deg C
Autoignition Temperature: Not available.
Flash Point: Not available.
Explosion Limits, lower: N/A
Explosion Limits, upper: N/A
Decomposition Temperature:
Solubility in water:
Specific Gravity/Density:
Molecular Formula: C21H10Cl12
Molecular Weight: 687.75

---

Section 10 - STABILITY AND REACTIVITY
Chemical Stability:
Stable under normal temperatures and pressures.
Conditions to Avoid:
Incompatible materials, dust generation, strong oxidants.
Incompatibilities with Other Materials:
Strong oxidizing agents.
Hazardous Decomposition Products:
Hydrogen chloride, carbon monoxide, irritating and toxic fumes and gases, carbon dioxide.
Hazardous Polymerization: Has not been reported

---

Section 11 - TOXICOLOGICAL INFORMATION
RTECS#:
CAS# 4605-91-8 unlisted.
LD50/LC50:
Not available.
Carcinogenicity:
2-methylnaphthalene-bis(hexachlorocyclo-pentadiene) addu - Not listed by ACGIH, IARC, or NTP.

---

Section 12 - ECOLOGICAL INFORMATION

---

Section 13 - DISPOSAL CONSIDERATIONS
Dispose of in a manner consistent with federal, state, and local regulations.

---

Section 14 - TRANSPORT INFORMATION

IATA
Not regulated as a hazardous material.
IMO
Not regulated as a hazardous material.
RID/ADR
Not regulated as a hazardous material.

---

Section 15 - REGULATORY INFORMATION

European/International Regulations
European Labeling in Accordance with EC Directives
Hazard Symbols: Not available.
Risk Phrases:
Safety Phrases:
S 24/25 Avoid contact with skin and eyes.
S 28A After contact with skin, wash immediately with
plenty of water.
S 37 Wear suitable gloves.
S 45 In case of accident or if you feel unwell, seek
medical advice immediately (show the label where
possible).
WGK (Water Danger/Protection)
CAS# 4605-91-8: No information available.
Canada
None of the chemicals in this product are listed on the DSL/NDSL list.
CAS# 4605-91-8 is not listed on Canada's Ingredient Disclosure List.
US FEDERAL
TSCA
CAS# 4605-91-8 is not listed on the TSCA inventory.
It is for research and development use only.

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

制备方法与用途

用途：其他方法难以合成的取代萘的前体。

反应信息

• 作为产物：
  描述：

  2-甲基萘 、 六氯环戊二烯 反应 168.0h， 以30%的产率得到1,2,3,4,5,6,7,8,13,13,14,14-dodecachloro-1,4,4a,4b,5,8,8a,12b-octahydro-10-methyl-1,4;5,8-dimethanotriphenylene
  参考文献：
  名称：

  摘要：

  2-Methylnaphthalene undergoes Diels-Alder addition and substitution with hexachlorocyclopentadiene to give two products, 1,2,3,4,5,6,7,8,13,13,14,14-dodecachloro-1,4,4a,4b,5,8,8a,12b-octahydro-10-methyl-1,4;5,8-dimethanotriphenylene 1 and 1,2,3,4,5,6,7,8,13,13,14,14-dodecachloro-1,4,4a,4b,5,8,8a,12b-octahydro-10-(1',2',3',4',5'-pentachlorocyclopentadienyl)methyl-1,4;5,8-dimethanotriphenylene 2. The molecular structure of 2 has been characterized by X-ray crystallography: C26H9Cl17, monoclinic, space group P2(1)/c, with a = 15.316(3), b = 13.698(3), c = 16.116(3) Angstrom, beta = 96.113(3)degrees, and Z = 4.

  DOI：

  10.1023/a:1021819518557

文献信息

• Olefin polymerization catalyst system useful for polar monomers
  申请人：Baugh Sauders Lisa

  公开号：US20070197751A1

  公开（公告）日：2007-08-23

  This invention relates to copolymers produced by a polymerization method comprising contacting at least one olefin monomer, at least one polar monomer, an optional activator, and a catalyst compound represented by the formula: wherein M is selected from groups 3-11 of the periodic table; L 1 represents a formal anionic ligand, L 2 represents a formal neutral ligand, a is an integer greater than or equal to 1; b is greater than or equal to 0; c is greater than or equal to 1, E is nitrogen or phosphorus, Ar 0 is arene, R 1 -R 4 are, each independently, selected from hydrogen, hydrocarbyl, substituted hydrocarbyl or functional group, provided however that R 3 and R 4 do not form a naphthyl ring, N is nitrogen and O is oxygen.

  本发明涉及通过聚合方法制备的共聚物，该方法包括接触至少一种烯烃单体、至少一种极性单体、可选的活化剂和催化剂化合物。该催化剂化合物的化学式为：其中M从周期表的3-11组中选择；L1表示正离子配体，L2表示中性配体，a是大于等于1的整数；b大于等于0；c大于等于1；E是氮或磷，Ar0是芳烃，R1-R4分别选择自氢、烃基、取代烃基或功能基，但R3和R4不形成萘环，N是氮，O是氧。
• US7285609B2
  申请人：——

  公开号：US7285609B2

  公开（公告）日：2007-10-23
• US7479531B2
  申请人：——

  公开号：US7479531B2

  公开（公告）日：2009-01-20
• ——
  作者：Da-Ming Du、Feng Xue、Henry N. C. Wong、Thomas C. W. Mak

  DOI：10.1023/a:1021819518557

  日期：——

  2-Methylnaphthalene undergoes Diels-Alder addition and substitution with hexachlorocyclopentadiene to give two products, 1,2,3,4,5,6,7,8,13,13,14,14-dodecachloro-1,4,4a,4b,5,8,8a,12b-octahydro-10-methyl-1,4;5,8-dimethanotriphenylene 1 and 1,2,3,4,5,6,7,8,13,13,14,14-dodecachloro-1,4,4a,4b,5,8,8a,12b-octahydro-10-(1',2',3',4',5'-pentachlorocyclopentadienyl)methyl-1,4;5,8-dimethanotriphenylene 2. The molecular structure of 2 has been characterized by X-ray crystallography: C26H9Cl17, monoclinic, space group P2(1)/c, with a = 15.316(3), b = 13.698(3), c = 16.116(3) Angstrom, beta = 96.113(3)degrees, and Z = 4.

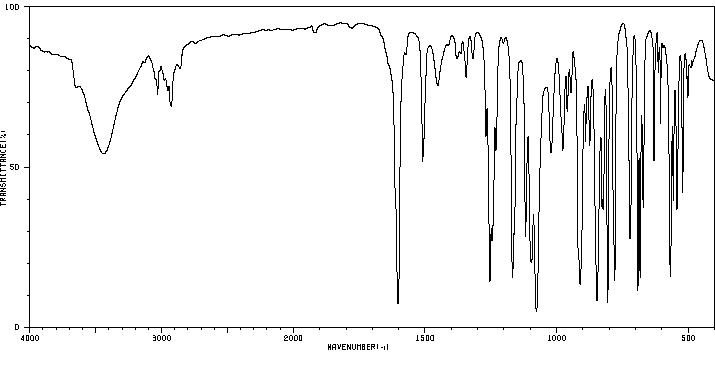

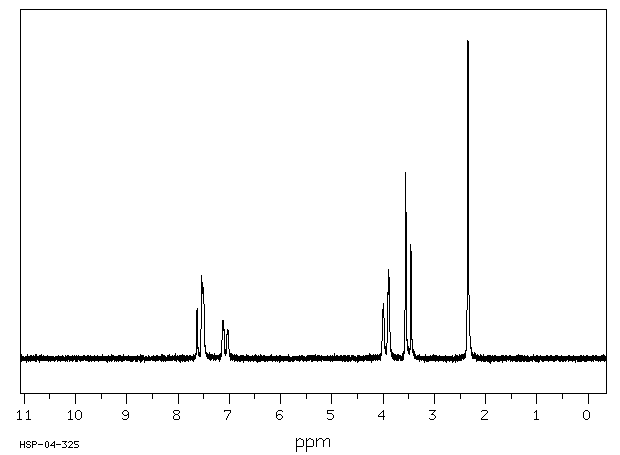

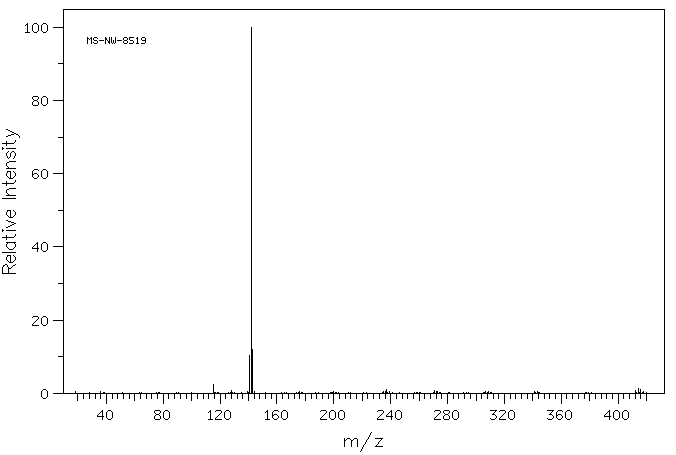

表征谱图
