双[2-(4-甲氧苯氧基)乙基]醚 | 104104-12-3

• 分子结构分类: 有机化合物 - 苯类化合物 - 苯酚醚
• 中文名称: 双[2-(4-甲氧苯氧基)乙基]醚
• 英文名称: Bis[2-(4-methoxyphenoxy)ethyl] Ether
• 英文别名: 1-methoxy-4-[2-[2-(4-methoxyphenoxy)ethoxy]ethoxy]benzene
• CAS: 104104-12-3
• 化学式: C₁₈H₂₂O₅
• mdl: MFCD00143755
• 分子量: 318.4
• InChiKey: AJXHXSKQHBJNPB-UHFFFAOYSA-N

物化性质

• 熔点：
  100 °C

计算性质

• 辛醇/水分配系数(LogP)：
  2.8
• 重原子数：
  23
• 可旋转键数：
  10
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.333
• 拓扑面积：
  46.2
• 氢给体数：
  0
• 氢受体数：
  5

文献信息

• RECORDING MATERIAL PRODUCED USING NON-PHENOL COMPOUND
  申请人：NIPPON SODA CO., LTD.

  公开号：US20150284321A1

  公开（公告）日：2015-10-08

  An object of the present invention is to provide a recording material or a recording sheet using, as a color-developing agent, a non-phenol compound that is a safe compound in no danger of corresponding to an endocrine disruptor and is good in color developing performance. The non-phenol compound used in the present invention is at least one selected from the group consisting of compounds represented by the following formulas (I) to (III).

  本发明的目的是提供一种使用非酚类化合物作为显色剂的记录材料或记录纸，该非酚类化合物是一种安全化合物，不会对应到内分泌干扰物，并且在显色性能方面表现良好。本发明中使用的非酚类化合物至少选自以下化合物所代表的化合物组，其化学式为(I)至(III)。
• Thermosensitive recording material and color developer compound therefor
  申请人：——

  公开号：US20040071187A1

  公开（公告）日：2004-04-15

  A thermosensitive recording material has a support and a thermosensitive coloring layer formed thereon containing a leuco dye and a color developer capable of inducing color formation in the leuco dye upon application of heat thereto, with the color developer including at least one compound (A) having in a molecule thereof at least two aromatic ring moieties with specific structures, selected from the group consisting of an aromatic ring moiety having at least one carboxyl group and electron-attracting functional group, an aromatic ring moiety having at least one carboxyl group and electron-donating functional group, and an aromatic ring moiety having at least one carboxyl group, free of the electron-attracting and electron-donating functional groups. An aromatic carboxylic acid compound serving as the above-mentioned compound (A) and the producing method thereof are also disclosed.

  一种热敏感记录材料具有支撑体和在其上形成的热敏感着色层，其中该着色层含有一种白色染料和一种色素显色剂，能够在施加热量时诱导白色染料发生显色反应，其中色素显色剂包括至少一种化合物（A），其分子中至少含有两个具有特定结构的芳香环基团，所述芳香环基团选自具有至少一个羧基和电子吸引基团的芳香环基团、具有至少一个羧基和电子给予基团的芳香环基团以及不含电子吸引和电子给予功能基团的芳香环基团。还公开了作为上述化合物（A）的芳香羧酸化合物及其生产方法。
• NOVEL DEVELOPER FOR THERMAL RECORDING MEDIA AND THERMAL COMPOSITION MEDIA USING THE SAME
  申请人：Ruffer, JR. Ronald Q.

  公开号：US20160089919A1

  公开（公告）日：2016-03-31

  The subject invention more specifically discloses compounds which are particularly useful as a developer for thermal recording media. These compounds include p-(p-3-[p-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol, m-(p-3-[p-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol, o-(p-3-[p-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol, p-(p-3-[m-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol, and p-(m-3-[o-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol. The present invention also reveals a thermal recording sheet having a thermal recording layer containing a colorless or pale colored dye precursor and a color developer reactable with said dye precursor upon heating to develop a color, wherein said color developer is a compound selected from the group consisting of p-(p-3-[p-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol, m-(p-3-[p-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol, o-(p-3-[p-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol, p-(p-3-[m-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol, and p-(m-3-[o-(p-hydroxyphenoxy)phenyl]ureido}phenoxy)phenol.

  该专利更具体地揭示了一种作为热记录介质开发剂特别有用的化合物。这些化合物包括p-(p-3-[p-(p-羟基苯氧基)苯基]脲基}苯氧基)酚、m-(p-3-[p-(p-羟基苯氧基)苯基]脲基}苯氧基)酚、o-(p-3-[p-(p-羟基苯氧基)苯基]脲基}苯氧基)酚、p-(p-3-[m-(p-羟基苯氧基)苯基]脲基}苯氧基)酚和p-(m-3-[o-(p-羟基苯氧基)苯基]脲基}苯氧基)酚。本发明还揭示了一种热记录纸张，其具有包含无色或淡色染料前体的热记录层和与所述染料前体在加热时发生反应以形成颜色的颜色开发剂，其中所述颜色开发剂是从以下组合中选取的化合物：p-(p-3-[p-(p-羟基苯氧基)苯基]脲基}苯氧基)酚、m-(p-3-[p-(p-羟基苯氧基)苯基]脲基}苯氧基)酚、o-(p-3-[p-(p-羟基苯氧基)苯基]脲基}苯氧基)酚、p-(p-3-[m-(p-羟基苯氧基)苯基]脲基}苯氧基)酚和p-(m-3-[o-(p-羟基苯氧基)苯基]脲基}苯氧基)酚。
• Thermosensitive recording material and novel color developer compounds
  申请人：——

  公开号：US20030040434A1

  公开（公告）日：2003-02-27

  Disclosed is a thermosensitive recording material comprising a sheet-shaped support and a thermosensitive recording layer which is formed on at least one surface of the support and comprises a colorless or light-colored dye precursor and a color developer capable of reacting with the dye precursor and inducing color formation therein upon application of heat thereto, the color developer comprising a compound represented by the following formula (I) or analog thereof: 1 The thermosensitive recording material has high sensitivity and can prevent white background portions from coloring and recorded images from decolorizing in an environmental resistance test.

  本发明公开了一种热敏记录材料，包括一片状支撑体和形成在支撑体至少一表面上的热敏记录层，该热敏记录层包括无色或浅色染料前体和能够与染料前体反应并在施加热能时诱导其中颜色形成的显色剂，其中显色剂包括下式（I）所表示的化合物或其类似物。该热敏记录材料具有高灵敏度，并且可以在环境抗性测试中防止白色背景部分着色和记录的图像褪色。
• Bis (arylsulfonylaminocarbonylaminobenzoate) compounds and thermosensitive recording materials containing same
  申请人：OJI PAPER CO., LTD.

  公开号：US20020065196A1

  公开（公告）日：2002-05-30

  A thermosensitive recording material having high whiteness and resistance to color formation under high temperature, high humidity conditions has a thermosensitive colored image-forming layer formed on a substrate sheet and includes a dye precursor, a binder and a color developing agent including a compound of the formula (I) and optionally a compound of the formula (V). 1 R 1 , R 3 =unsubstituted or methyl or chlorine-substituted aryl group, R 2 =at least C 3 divalent organic group, R 4 =at least C 3 alkyl, aralkyl or aryloxyalkyl group.

  具有高白度和耐高温高湿条件下色彩形成的热敏记录材料，在基材片上形成了热敏着色成像层，包括染料前体、粘合剂和颜色发展剂，其中包括式(I)的化合物和可选的式(V)的化合物。1R1、R3=未取代或甲基或氯取代的芳基基团，R2=至少C3的二价有机基团，R4=至少C3的烷基、芳基烷基或芳氧基烷基团。

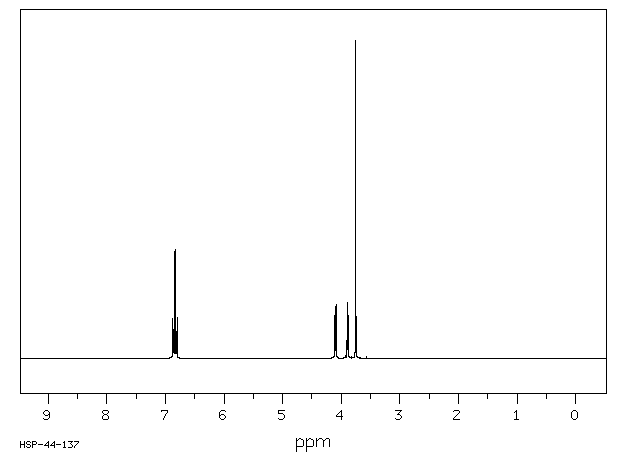

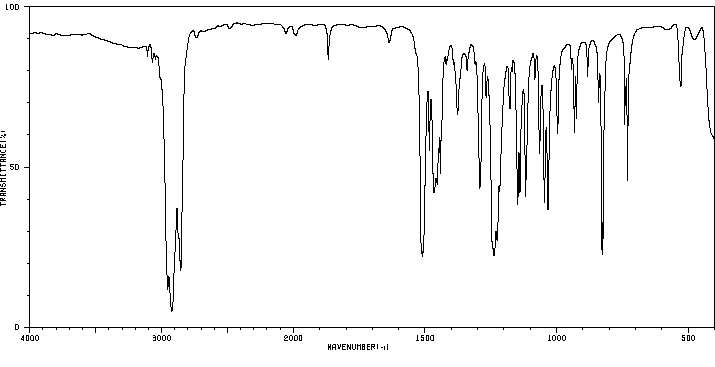

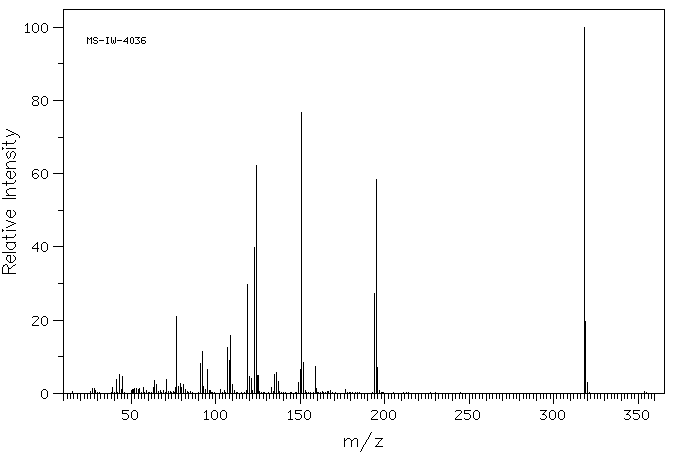

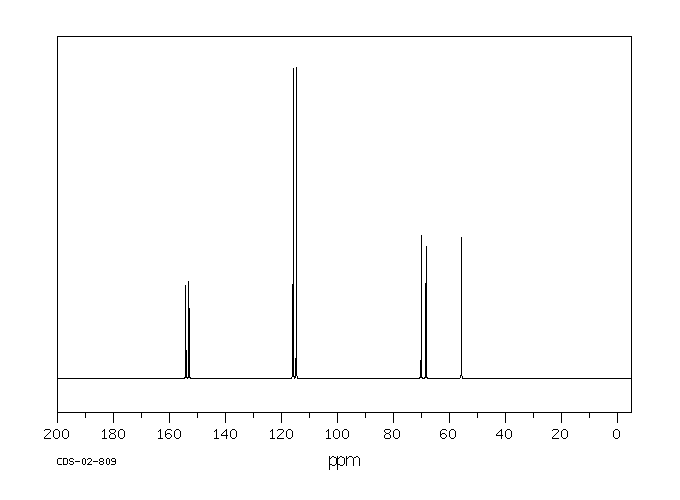

表征谱图
