反式-2-(2-硝基乙烯基)噻吩 | 34312-77-1

• 分子结构分类: 有机化合物 - 有机杂环化合物 - 杂芳族化合物
• 中文名称: 反式-2-(2-硝基乙烯基)噻吩
• 中文别名: 反式-2-硝基乙烯基噻吩
• 英文名称: 1-(2-thienyl)-2-nitroethene
• 英文别名: 2-(2-nitrovinyl)thiophene；(E)-2-(2-nitrovinyl)thiophene；trans-2-(2-nitrovinyl)thiophene；2-[(E)-2-nitroethenyl]thiophene
• CAS: 34312-77-1
• 化学式: C₆H₅NO₂S
• 分子量: 155.177
• InChiKey: UTPOWFFIBWOQRK-ONEGZZNKSA-N

物化性质

• 熔点：
  79-81 °C(lit.)
• 沸点：
  269.7±15.0 °C(Predicted)
• 密度：
  1.335±0.06 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  2
• 重原子数：
  10
• 可旋转键数：
  1
• 环数：
  1.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  74.1
• 氢给体数：
  0
• 氢受体数：
  3

安全信息

• 危险等级：
  6.1(b)
• 危险品标志：
  Xn
• 危险类别码：
  R20/21/22
• 危险品运输编号：
  2811
• 海关编码：
  2934999090
• 包装等级：
  III
• 危险类别：
  6.1(b)
• 安全说明：
  S26,S36,S36/37/39,S45
• 危险性防范说明：
  P261,P301+P310,P305+P351+P338
• 危险性描述：
  H301,H315,H319,H335
• 储存条件：
  2-8℃

SDS

Material Safety Data Sheet

---

Section 1. Identification of the substance
Product Name: Trans-2-(2-nitrovinyl)thiophene
Synonyms:

---

Section 2. Hazards identification
Harmful by inhalation, in contact with skin, and if swallowed.

---

Section 3. Composition/information on ingredients.
Ingredient name: Trans-2-(2-nitrovinyl)thiophene
CAS number: 34312-77-1

---

Section 4. First aid measures
Skin contact: Immediately wash skin with copious amounts of water for at least 15 minutes while removing
contaminated clothing and shoes. If irritation persists, seek medical attention.
Eye contact: Immediately wash skin with copious amounts of water for at least 15 minutes. Assure adequate
flushing of the eyes by separating the eyelids with fingers. If irritation persists, seek medical
attention.
Inhalation: Remove to fresh air. In severe cases or if symptoms persist, seek medical attention.
Ingestion: Wash out mouth with copious amounts of water for at least 15 minutes. Seek medical attention.

---

Section 5. Fire fighting measures
In the event of a fire involving this material, alone or in combination with other materials, use dry
powder or carbon dioxide extinguishers. Protective clothing and self-contained breathing apparatus
should be worn.

---

Section 6. Accidental release measures
Personal precautions: Wear suitable personal protective equipment which performs satisfactorily and meets local/state/national
standards.
Respiratory precaution: Wear approved mask/respirator
Hand precaution: Wear suitable gloves/gauntlets
Skin protection: Wear suitable protective clothing
Eye protection: Wear suitable eye protection
Methods for cleaning up: Mix with sand or similar inert absorbent material, sweep up and keep in a tightly closed container
for disposal. See section 12.
Environmental precautions: Do not allow material to enter drains or water courses.

---

Section 7. Handling and storage
Handling: This product should be handled only by, or under the close supervision of, those properly qualified
in the handling and use of potentially hazardous chemicals, who should take into account the fire,
health and chemical hazard data given on this sheet.
Store in closed vessels, refrigerated.
Storage:

---

Section 8. Exposure Controls / Personal protection
Engineering Controls: Use only in a chemical fume hood.
Personal protective equipment: Wear laboratory clothing, chemical-resistant gloves and safety goggles.
General hydiene measures: Wash thoroughly after handling. Wash contaminated clothing before reuse.

---

Section 9. Physical and chemical properties
Appearance: Not specified
Boiling point: No data
No data
Melting point:
Flash point: No data
Density: No data
Molecular formula: C6H5NO2S
Molecular weight: 155.2

---

Section 10. Stability and reactivity
Conditions to avoid: Heat, flames and sparks.
Materials to avoid: Oxidizing agents.
Possible hazardous combustion products: Carbon monoxide, nitrogen oxides, sulfur oxides.

---

Section 11. Toxicological information
No data.

---

Section 12. Ecological information
No data.

---

Section 13. Disposal consideration
Arrange disposal as special waste, by licensed disposal company, in consultation with local waste
disposal authority, in accordance with national and regional regulations.

---

Section 14. Transportation information
Non-harzardous for air and ground transportation.

---

Section 15. Regulatory information
No chemicals in this material are subject to the reporting requirements of SARA Title III, Section
302, or have known CAS numbers that exceed the threshold reporting levels established by SARA
Title III, Section 313.

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

反应信息

• 作为反应物：
  描述：

  反式-2-(2-硝基乙烯基)噻吩 在 palladium on activated charcoal N-甲基吗啉 、 盐酸 、 叠氮磷酸二苯酯 、 氢气 、 sodium hydride 、 溶剂黄146 、 三乙胺 作用下， 以 1,4-二氧六环 、 二氯甲烷 、 N,N-二甲基甲酰胺 、 甲苯 为溶剂， 25.0~70.0 ℃ 、303.98 kPa 条件下， 反应 78.0h， 生成 盐酸替莫普利
  参考文献：
  名称：

  Angiotensin-converting enzyme inhibitors. Perhydro-1,4-thiazepin-5-one derivatives

  摘要：

  alpha-[6-[[(S)-1-(Ethoxycarbonyl)-3-phenylpropyl]amino]-5-oxoperhydro -1,4-thiazepin-4-yl]acetic acids (monoester monoacids) and their dicarboxylic acids having the hydrophobic substituents at the 2- or 3-position of the thiazepinone ring were prepared and assayed for angiotensin-converting enzyme (ACE) inhibitory activity. The dicarboxylic acids having the pseudoequatorial amino groups at the 6-position and the pseudoequatorial hydrophobic substituents at the 2- or 3-position of the chair conformation of the thiazepinone ring had potent in vitro inhibitory activity. The monoester monoacids having the hydrophobic substituents at the 2-position suppressed pressor response to angiotensin I for a longer duration than those having the substituents at the 3-position when administered orally. The structure-activity relationship was studied by conformational energy calculations of the thiazepinone ring.

  DOI：

  10.1021/jm00394a009
• 作为产物：
  描述：

  硝基甲烷 生成 反式-2-(2-硝基乙烯基)噻吩
  参考文献：
  名称：

  摘要：

  DOI：

文献信息

• Cyanide-Free and Broadly Applicable Enantioselective Synthetic Platform for Chiral Nitriles through a Biocatalytic Approach
  作者：Tobias Betke、Philipp Rommelmann、Keiko Oike、Yasuhisa Asano、Harald Gröger

  DOI：10.1002/anie.201702952

  日期：2017.9.25

  A cyanide‐free platform technology for the synthesis of chiral nitriles by biocatalytic enantioselective dehydration of a wide range of aldoximes is reported. The nitriles were obtained with high enantiomeric excess of >90 % ee (and up to 99 % ee) in many cases, and a “privileged substrate structure” with respect to high enantioselectivity was identified. Furthermore, a surprising phenomenon was observed

  报道了通过多种醛糖肟的生物催化对映选择性脱水合成手性腈的无氰化平台技术。具有高对映体过量> 90％的得到的腈EE（和高达99％ee值）在许多情况下，和“特权基板结构”相对于高对映选择性鉴定。此外，观察到令人惊讶的对映体特异性现象，通常在酶催化中没有观察到。取决于是否使用 外消旋醛肟肟底物的E或Z异构体，优选用相同的酶形成相应腈的一种或另一种对映体。
• Structure-Based Insight into the Asymmetric Bioreduction of the CC Double Bond of α,β-Unsaturated Nitroalkenes by Pentaerythritol Tetranitrate Reductase
  作者：Helen S. Toogood、Anna Fryszkowska、Victoria Hare、Karl Fisher、Anna Roujeinikova、David Leys、John M. Gardiner、Gill M. Stephens、Nigel S. Scrutton

  DOI：10.1002/adsc.200800561

  日期：——

  Biocatalytic reduction of alpha- or beta-alkyl-beta-arylnitroalkenes provides a convenient and efficient method to prepare chiral substituted nitroalkanes. Pentaerythritol tetranitrate reductase (PETN reductase) from Enterobacter cloacae st. PB2 catalyses the reduction of nitroolefins such as 1-nitrocyclohexene (1) with steady state and rapid reaction kinetics comparable to other old yellow enzyme

  α-或β-烷基-β-芳基硝基烯烃的生物催化还原为制备手性取代硝基烷烃提供了一种方便有效的方法。来自阴沟肠杆菌的季戊四醇四硝酸盐还原酶（PETN 还原酶）。PB2 催化硝基烯烃如 1-硝基环己烯 (1) 的还原，其稳态和快速反应动力学与其他旧的黄色酶同系物相当。此外，它将 2-芳基-1-硝基丙烯 (4a-d) 还原为其等效的 (S)-硝基丙烷 9a-d。该酶显示出对底物 4a-d 的 (Z)-异构体的偏好，以定量收率提供几乎纯的对映体产物 9a-d（ee 高达 > 99%），而相应的 (E)-异构体减少对映选择性 (63-89% ee) 和较低的产品产率。1-Aryl-2-nitropropenes (5a, b) 也被有效地还原，但产物(R)-10具有较低的光学纯度。酶与 1-硝基环己烯 (1) 复合物的结构由 X 射线晶体学确定，揭示了两种底物结合模式，只有一种与氢化物转移相容。PETN
• Organocatalytic, Enantioselective Conjugate Addition of Nitroalkanes to Nitroolefins
  作者：Jian Wang、Hao Li、Liansuo Zu、Wei Jiang、Wei Wang

  DOI：10.1002/adsc.200600247

  日期：2006.10

  An organocatalytic, enantioselective conjugate addition reaction of nitroalkanes with nitroolefins has been developed under neat conditions without using an organic solvent. The process, catalyzed by a modified Cinchona alkaloid, affords synthetically useful 1,3-dinitro compounds in good yields (70–82 %) with good degrees of enantioselectivity (67–88 % ee).

  硝基烷与硝基烯烃的有机催化对映选择性共轭加成反应已在纯净条件下开发，无需使用有机溶剂。该方法由修饰的金鸡纳生物碱催化，可提供合成有用的1,3-二硝基化合物，收率高（70-82％），对映选择性好（67-88％ee）。
• Indole-to-Carbazole Strategy for the Synthesis of Substituted Carbazoles under Metal-Free Conditions
  作者：Shanping Chen、Yuxia Li、Penghui Ni、Huawen Huang、Guo-Jun Deng

  DOI：10.1021/acs.orglett.6b02762

  日期：2016.10.21

  An efficient indole-to-carbazole strategy has been developed under metal-free conditions. This carbazole formation was highly promoted by NH4I with high regioselectivity through formal [2 + 2 + 2] annulation of indoles, ketones, and nitroolefins. It thus conveniently enabled the assembly of a large number of diversified carbazole products with good tolerance of a broad range of functional groups.

  在无金属条件下，开发了一种有效的吲哚制咔唑策略。通过吲哚，酮和硝基烯烃的正式[2 + 2 + 2]环合，NH 4 I具有很高的区域选择性，从而大大促进了咔唑的形成。因此，它可以方便地组装多种多样的咔唑产品，并对各种官能团具有良好的耐受性。
• Metal-Free Synthesis and Photophysical Properties of 1,2,4-Triarylpyrroles
  作者：Dan Chang、Jinjin Chen、Yong Liu、Huawen Huang、Anjun Qin、Guo-Jun Deng

  DOI：10.1021/acs.joc.0c01788

  日期：2021.1.1

  4-triaryl-substituted pyrrole products were obtained in good to high yields. Furthermore, 2,3,5-triaryl-substituted pyrroles were selectively formed in the absence of nitrovinylarenes. The photophysical properties of some pyrrole products have been investigated to show good aggregation-induced emission (AIE) activity.

  已经开发了三组分反应，用于在无金属条件下由芳基酮，胺和硝基乙烯基芳烃构建多芳基取代的吡咯衍生物。因此，获得了高，高产率的同源1,2,4-三芳基取代的吡咯产物。此外，在不存在硝基乙烯基芳烃的情况下选择性地形成2,3,5-三芳基取代的吡咯。已对某些吡咯产品的光物理性质进行了研究，以显示良好的聚集诱导发射（AIE）活性。

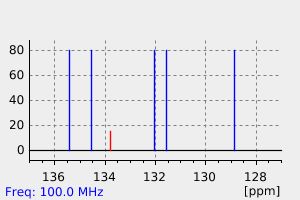

表征谱图
