2,6-二氯蒽-9.10-酮 | 605-40-3

• 分子结构分类: 有机化合物 - 苯类化合物 - 蒽
• 中文名称: 2,6-二氯蒽-9.10-酮
• 英文名称: 2,6-dichloro-9,10-anthraquinone
• 英文别名: 2,6-Dichlor-anthrachinon；2,6-dichloroanthraquinone；2,6-dichloroanthracene-9,10-dione
• CAS: 605-40-3
• 化学式: C₁₄H₆Cl₂O₂
• 分子量: 277.106
• InChiKey: KJGPMAHVCDFRBN-UHFFFAOYSA-N

物化性质

• 熔点：
  282 °C
• 沸点：
  455.2±45.0 °C(Predicted)
• 密度：
  1.514±0.06 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  4.1
• 重原子数：
  18
• 可旋转键数：
  0
• 环数：
  3.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  34.1
• 氢给体数：
  0
• 氢受体数：
  2

反应信息

• 作为反应物：
  描述：

  2,6-二氯蒽-9.10-酮 生成 2,11-二氯苯并[rst]菲并[10,1,2-cde]戊酚-9,18-二酮
  参考文献：
  名称：

  DE450445

  摘要：

  公开号：
• 作为产物：
  描述：

  1-蒽醌磺酸 在 盐酸 、 sodium chlorate 、 硫酸 、 汞 作用下， 生成 2,6-二氯蒽-9.10-酮
  参考文献：
  名称：

  Fierz-David,H.E., Helvetica Chimica Acta, 1927, vol. 10, p. 199

  摘要：

  DOI：

文献信息

• XANTHENE-BASED COMPOUND AND PHOTOSENSITIVE RESIN COMPOSITION COMPRISING SAME
  申请人：LG CHEM, LTD.

  公开号：US20200262807A1

  公开（公告）日：2020-08-20

  The present specification provides a compound represented by Chemical Formula 1, a colorant composition, a resin composition, a photosensitive material, a color filter and a display device comprising the same.

  当前规格书提供了一种由化学公式1表示的化合物，一种着色剂组合物，一种树脂组合物，一种光敏材料，以及包含该化合物的彩色滤光器和显示设备。
• COMPOUND OR ITS TAUTOMER, METAL COMPLEX COMPOUND, COLORED PHOTOSENSITIVE CURING COMPOSITION, COLOR FILTER, AND PRODUCTION
  申请人：MIZUKAWA Yuki

  公开号：US20120238752A1

  公开（公告）日：2012-09-20

  Provided is a colored photosensitive curing composition useful for color filters in primary colors, including blue, green, and red, having a high molar absorption coefficient and allowing a reduction in film thickness and superior color purity and fastness. A colored photosensitive curing composition, comprising, as its colorant, a dipyrromethene-based metal complex compound obtained from a metal or metal compound and a dipyrromethene-based compound represented by the following Formula (I): wherein in Formula (I), R 1 to R 6 each independently represent a hydrogen atom or a substituent group; and R 7 represents a hydrogen or halogen atom, or an alkyl, aryl or heterocyclic group.

  提供的是一种有用于原色彩色滤光片的彩色光敏固化组合物，包括蓝色、绿色和红色，具有高摩尔吸收系数，可减少薄膜厚度，具有优越的颜色纯度和牢固度。 一种彩色光敏固化组合物，包括作为其着色剂的从金属或金属化合物获得的基于二吡咯甲烷的金属配合物化合物和由以下式（I）表示的基于二吡咯甲烷的化合物，其中在式（I）中，R1至R6各自独立地表示氢原子或取代基；R7表示氢或卤素原子，或烷基、芳基或杂环基。
• Anthracene derivatives
  申请人：Burroughs Wellcome Co.

  公开号：US04719049A1

  公开（公告）日：1988-01-12

  The present invention relates to compounds of formula (I) ArCH.sub.2 R.sup.1 (I) or a monomethyl or a monoethyl ether thereof (the compound of formula (I) including these ethers may contain no more than 30 carbon atoms in total); ethers, esters thereof; acid addition salts thereof; wherein Ar is an anthracene or substituted anthracene ring system; R.sup.1 contains not more than eight carbon carbon atoms and is a group ##STR1## wherein m is 0 or 1; R.sup.5 is hydrogen; R.sup.6 and R.sup.7 are the same or different and each is hydrogen or C.sub.1-3 alkyl optionally substituted by hydroxy; R.sup.8 and R.sup.9 are the same or different and each is hydrogen or C.sub.1-3 alkyl; --C--C-- is a five- or six-membered saturated carbocyclic ring; R.sup.10 is hydrogen, methyl or hydroxymethyl; R.sup.11, R.sup.12 and R.sup.13 are the same or different and each is hydrogen or methyl; R.sup.14 is hydrogen, methyl, hydroxy, or hydroxymethyl.

  本发明涉及通式(I)ArCH.sub.2 R.sup.1 (I)的化合物或其单甲基或单乙基醚(通式(I)的化合物包括这些醚，总共含有不超过30个碳原子);其醚、酯;其酸加成盐;其中Ar为蒽或取代蒽环系;R.sup.1含有不超过八个碳碳原子，为如下基团##STR1##其中m为0或1;R.sup.5为氢;R.sup.6和R.sup.7相同或不同，各自为氢或C.sub.1-3烷基，可选择性地被羟基取代;R.sup.8和R.sup.9相同或不同，各自为氢或C.sub.1-3烷基;--C--C--为五元或六元饱和碳环;R.sup.10为氢、甲基或羟甲基;R.sup.11、R.sup.12和R.sup.13相同或不同，各自为氢或甲基;R.sup.14为氢、甲基、羟基或羟甲基。
• SILANE-BASED COMPOUNDS AND PHOTOSENSITIVE RESIN COMPOSITION COMPRISING THE SAME
  申请人：CHO Changho

  公开号：US20130034814A1

  公开（公告）日：2013-02-07

  The present application relates to a new silane-based compound, a photosensitive resin composition including the same, and a photosensitive material including the same. The photosensitive resin composition including the silane-based compound according to the exemplary embodiment of the present application increases adhesion strength to a substrate, such that a developing property is excellent and there are no surface stains or defects during a subsequent process. Accordingly, a photosensitive material, a color filter and the like having excellent quality may be manufactured by using the photosensitive resin composition according to the exemplary embodiment of the present application.

  本申请涉及一种基于硅烷的新化合物，包括该化合物的感光树脂组合物，以及包括该化合物的感光材料。根据本申请示例实施方式的含硅烷基化合物的感光树脂组合物增加了与基材的粘附强度，使得显影性能优良，在随后的过程中没有表面污渍或缺陷。因此，通过使用根据本申请示例实施方式的感光树脂组合物可以制造出具有优良质量的感光材料、彩色滤光片等。
• Pyridone azo compound, tautomer thereof, and colorant-containing curable composition, color filter and manufacturing method thereof
  申请人：Araki Katsumi

  公开号：US20060293405A1

  公开（公告）日：2006-12-28

  The invention provides a pyridone azo compound represented by the following Formula (I) and a tautomer thereof. R 1 , R 3 and R 4 each independently represent a hydrogen atom, an alkyl group having 1 to 21 carbon atoms, an alkenyl group having 2 to 21 carbon atoms, an aryl group having 6 to 21 carbon atoms, an aralkyl group having 7 to 21 carbon atoms, or a substituent having a hetero atom; at least one of R 1 , R 3 and R 4 represents a substituent having a hetero atom; R 3 and R 4 may be formed into a heterocycle together with a jointly bonded nitrogen atom; and R 2 represents an alkyl group having 1 to 10 carbon atoms, a methoxymethyl group, or a trifluoromethyl group. The invention further provides a colorant-containing curable composition and a color filter which contain the pyridone azo compound of Formula (I) and/or a tautomer thereof as a colorant.

  该发明提供了一种由以下式（I）表示的吡啶酮偶氮化合物及其互变异构体。其中，R1、R3和R4分别独立表示氢原子、具有1至21个碳原子的烷基基团、具有2至21个碳原子的烯基基团、具有6至21个碳原子的芳基基团、具有7至21个碳原子的芳基烷基基团或具有杂原子的取代基；R1、R3和R4中至少一个表示具有杂原子的取代基；R3和R4可以与共价键合的氮原子一起形成杂环；R2表示具有1至10个碳原子的烷基基团、甲氧基甲基基团或三氟甲基基团。该发明还提供了一种含色料的可固化组合物和一种含有式（I）中的吡啶酮偶氮化合物和/或其互变异构体作为色料的彩色滤光片。

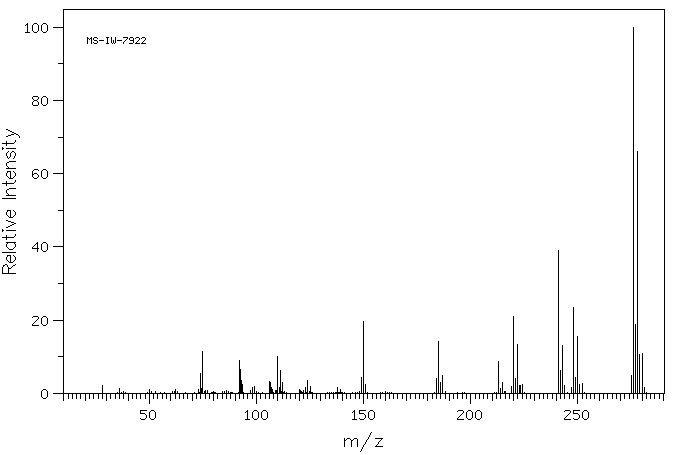

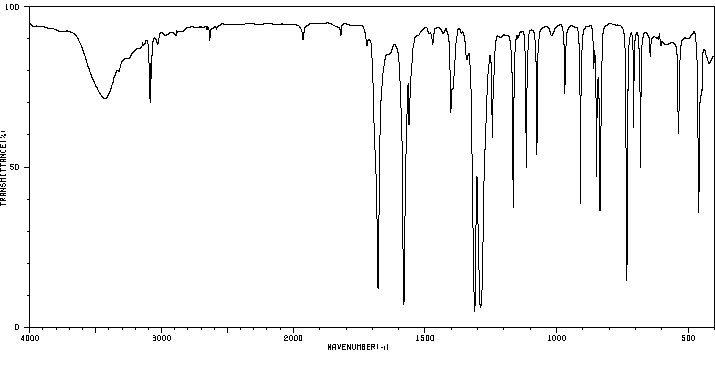

表征谱图
