2-硝基苯磺酰氯 | 433-98-7

• 分子结构分类: 有机化合物 - 苯类化合物 - 苯和取代衍生物
• 中文名称: 2-硝基苯磺酰氯
• 中文别名: 2-硝基苯磺酰氟
• 英文名称: 2-nitrobenzenesulfonyl fluoride
• 英文别名: 2-nitrobenzene-1-sulfonyl fluoride
• CAS: 433-98-7
• 化学式: C₆H₄FNO₄S
• mdl: MFCD00007413
• 分子量: 205.166
• InChiKey: HSQIQAVSSNKMBM-UHFFFAOYSA-N

物化性质

• 熔点：
  56-60°C
• 沸点：
  306.0±25.0 °C(Predicted)
• 密度：
  1.554±0.06 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  1.6
• 重原子数：
  13
• 可旋转键数：
  1
• 环数：
  1.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  88.3
• 氢给体数：
  0
• 氢受体数：
  5

安全信息

• 危险等级：
  8
• 安全说明：
  S26,S36/37/39
• 危险类别码：
  R34
• 海关编码：
  2904909090
• 包装等级：
  III
• 危险品运输编号：
  UN 3261
• 危险类别：
  8
• 危险性防范说明：
  P280,P305+P351+P338,P310
• 危险性描述：
  H314

SDS

Material Safety Data Sheet

---

Section 1. Identification of the substance
Product Name: 2-Nitrobenzenesulfonyl fluoride
Synonyms:

---

Section 2. Hazards identification
Harmful by inhalation, in contact with skin, and if swallowed.

---

Section 3. Composition/information on ingredients.
Ingredient name: 2-Nitrobenzenesulfonyl fluoride
CAS number: 433-98-7

---

Section 4. First aid measures
Skin contact: Immediately wash skin with copious amounts of water for at least 15 minutes while removing
contaminated clothing and shoes. If irritation persists, seek medical attention.
Eye contact: Immediately wash skin with copious amounts of water for at least 15 minutes. Assure adequate
flushing of the eyes by separating the eyelids with fingers. If irritation persists, seek medical
attention.
Inhalation: Remove to fresh air. In severe cases or if symptoms persist, seek medical attention.
Ingestion: Wash out mouth with copious amounts of water for at least 15 minutes. Seek medical attention.

---

Section 5. Fire fighting measures
In the event of a fire involving this material, alone or in combination with other materials, use dry
powder or carbon dioxide extinguishers. Protective clothing and self-contained breathing apparatus
should be worn.

---

Section 6. Accidental release measures
Personal precautions: Wear suitable personal protective equipment which performs satisfactorily and meets local/state/national
standards.
Respiratory precaution: Wear approved mask/respirator
Hand precaution: Wear suitable gloves/gauntlets
Skin protection: Wear suitable protective clothing
Eye protection: Wear suitable eye protection
Methods for cleaning up: Mix with sand or similar inert absorbent material, sweep up and keep in a tightly closed container
for disposal. See section 12.
Environmental precautions: Do not allow material to enter drains or water courses.

---

Section 7. Handling and storage
Handling: This product should be handled only by, or under the close supervision of, those properly qualified
in the handling and use of potentially hazardous chemicals, who should take into account the fire,
health and chemical hazard data given on this sheet.
Store in closed vessels.
Storage:

---

Section 8. Exposure Controls / Personal protection
Engineering Controls: Use only in a chemical fume hood.
Personal protective equipment: Wear laboratory clothing, chemical-resistant gloves and safety goggles.
General hydiene measures: Wash thoroughly after handling. Wash contaminated clothing before reuse.

---

Section 9. Physical and chemical properties
Appearance: Not specified
Boiling point: No data
No data
Melting point:
Flash point: No data
Density: No data
Molecular formula: C6H4FNO4S
Molecular weight: 205.2

---

Section 10. Stability and reactivity
Conditions to avoid: Heat, flames and sparks.
Materials to avoid: Oxidizing agents.
Possible hazardous combustion products: Carbon monoxide, nitrogen oxides, hydrogen fluoride, sulfur oxides.

---

Section 11. Toxicological information
No data.

---

Section 12. Ecological information
No data.

---

Section 13. Disposal consideration
Arrange disposal as special waste, by licensed disposal company, in consultation with local waste
disposal authority, in accordance with national and regional regulations.

---

Section 14. Transportation information
Non-harzardous for air and ground transportation.

---

Section 15. Regulatory information
No chemicals in this material are subject to the reporting requirements of SARA Title III, Section
302, or have known CAS numbers that exceed the threshold reporting levels established by SARA
Title III, Section 313.

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

反应信息

• 作为反应物：
  描述：

  2-硝基苯磺酰氯 在 叠氮基三甲基硅烷 、 1,8-二氮杂双环[5.4.0]十一碳-7-烯 作用下， 以 乙腈 为溶剂， 反应 1.0h， 以99%的产率得到o-nitrobenzenesulfonyl azide
  参考文献：
  名称：

  通过磺酰氟和三甲基甲硅烷基叠氮化物的路易斯碱活化合成磺酰叠氮化物

  摘要：

  描述了通过路易斯碱活化将磺酰氟有效转化为磺酰叠氮化物的协议。原位生成的磺酰叠氮化物是有效的重氮转移剂，以优异的产率提供重氮化合物和初级叠氮化物。

  DOI：

  10.1055/s-0035-1561626
• 作为产物：
  描述：

  2-硝基苯磺酰胺 在 potassium fluoride 、 pyrilium tetrafluoroborate 、 magnesium chloride 作用下， 以 乙腈 为溶剂， 反应 2.0h， 以59%的产率得到2-硝基苯磺酰氯
  参考文献：
  名称：

  从磺酰胺合成磺酰氟

  摘要：

  报道了一种从磺酰胺中简单实用地合成磺酰氟的方法。该方法利用 Pyry-BF4 和 MgCl2 反应形成磺酰氯，随后在 KF 的存在下原位转化为更稳健和稳定的磺酰氟。该协议的温和条件和高化学选择性使磺酰氟从密集功能化分子的后期形成成为可能。由于其在化学生物学领域的成功活动，在其结构中带有磺酰氟的复杂有机分子的合成获得了巨大的动力。由于其独特的化学性质，几种磺酰氟已被用作化学生物学中的弹头，以靶向氨基酸残基并充当基于活性的探针（图 1）。图1。功能化芳基磺酰氟作为活性探针的例子。文献中提供了多种磺酰氟的合成方法，从无数不同的起始材料开始。早期的合成可以从磺酰肼、硫代磺酸盐、磺酰氯、磺酸、磺酸盐等中找到（图 2A）。然而，这些传统方法中的大多数在官能团兼容性方面受到限制，并且需要合成步骤才能获得起始材料。在最近的方法中，Willis、Bagley 和 Ball 独立解决了这些问题，并报告了使用简

  DOI：

  10.1002/ejoc.202000022

文献信息

• Metal‐Free Visible‐Light Synthesis of Arylsulfonyl Fluorides: Scope and Mechanism
  作者：Dan Louvel、Aida Chelagha、Jean Rouillon、Pierre‐Adrien Payard、Lhoussain Khrouz、Cyrille Monnereau、Anis Tlili

  DOI：10.1002/chem.202101056

  日期：2021.6.16

  The first metal-free procedure for the synthesis of arylsulfonyl fluorides is reported. Under organo-photoredox conditions, aryl diazonium salts react with a readily available SO2 source (DABSO) to afford the desired product through simple nucleophilic fluorination. The reaction tolerates the presence of both electron-rich and -poor aryls and demonstrated a broad functional group tolerance. To shed

  报道了合成芳基磺酰氟的第一个无金属程序。在有机光氧化还原条件下，芳基重氮盐与容易获得的 SO 2源 (DABSO)反应，通过简单的亲核氟化得到所需的产物。该反应耐受富电子和贫电子芳基的存在，并表现出广泛的官能团耐受性。为了阐明反应机理，结合了几种实验技术，包括荧光、核磁共振和 EPR 光谱以及 DFT 计算。
• Sulfur(VI) fluoride compounds and methods for the preparation thereof
  申请人：The Scripps Research Institute

  公开号：US10117840B2

  公开（公告）日：2018-11-06

  This application describes a compound represented by Formula (I): (I) wherein: Y is a biologically active organic core group comprising one or more of an aryl group, a heteroaryl aryl group, a nonaromatic hydrocarbyl group, and a nonaromatic heterocyclic group, to which Z is covalently bonded; n is 1, 2, 3, 4 or 5; m is 1 or 2; Z is O, NR, or N; X1 is a covalent bond or —CH2CH2—, X2 is O or NR; and R comprises H or a substituted or unsubstituted group selected from an aryl group, a heteroaryl aryl group, a nonaromatic hydrocarbyl group, and a nonaromatic heterocyclic group. Methods of preparing the compounds, methods of using the compounds, and pharmaceutical compositions comprising the compounds are described as well.

  该应用描述了由式(I)表示的化合物：(I)其中：Y是一个生物活性有机核心基团，包括芳基、杂芳基、非芳香烃基和非芳香杂环基中的一个或多个，其中Z与之以共价键结合；n为1、2、3、4或5；m为1或2；Z为O、NR或N；X1为共价键或—CH2CH2—，X2为O或NR；R包括H或从芳基、杂芳基、非芳香烃基和非芳香杂环基中选择的取代或未取代基团。还描述了制备这些化合物的方法、使用这些化合物的方法以及包含这些化合物的药物组合物。
• SuFEx-enabled, agnostic discovery of covalent inhibitors of human neutrophil elastase
  作者：Qinheng Zheng、Jordan L. Woehl、Seiya Kitamura、Diogo Santos-Martins、Christopher J. Smedley、Gencheng Li、Stefano Forli、John E. Moses、Dennis W. Wolan、K. Barry Sharpless

  DOI：10.1073/pnas.1909972116

  日期：2019.9.17

  We report here a SuFEx-enabled, agnostic approach for the discovery and optimization of covalent inhibitors of human neutrophil elastase (hNE). Evaluation of our ever-growing collection of SuFExable compounds toward various biological assays unexpectedly revealed a selective and covalent hNE inhibitor: benzene-1,2-disulfonyl fluoride. Synthetic derivatization of the initial hit led to a more potent

  氟化硫交换（SuFEx）已成为新一代点击化学。我们在此报告一种SuFEx启用的不可知论方法，用于发现和优化人类嗜中性粒细胞弹性蛋白酶（hNE）的共价抑制剂。对我们不断增长的SuFExable化合物的收集进行各种生物学分析的评估出乎意料地显示出一种选择性和共价的hNE抑制剂：苯1,2,2-二磺酰氟。首次命中的合成衍生化产生了一种更有效的试剂，即2-（氟磺酰基）苯基氟代硫酸盐，其IC50为0.24μM，相对于中性粒细胞丝氨酸蛋白酶组织蛋白酶G的选择性高出833倍。经过优化但又简单的benzenoid探针仅经过修饰活跃的hNE，而不是变性的形式。
• Catalyst-free radical fluorination of sulfonyl hydrazides in water
  作者：Lin Tang、Yu Yang、Lixian Wen、Xingkun Yang、Zhiyong Wang

  DOI：10.1039/c5gc02755a

  日期：——

  The first catalyst-free fluorination of sulfonyl hydrazides for the synthesis of sulfonyl fluorides via a free-radical process has been developed.

  对磺酰基腙进行的首次无催化氟化反应，通过自由基过程合成磺酰氟化物。
• 一种以芳基磺酰氟为原料制备联芳类化合物的方法
  申请人：遵义医学院

  公开号：CN107935802A

  公开（公告）日：2018-04-20

  本发明公开了一种以芳基磺酰氟为原料制备联芳类化合物的方法，依次将钯催化剂、芳基磺酰氟、芳基硼化物和碱加入圆底烧瓶中，在常温下磁力搅拌进行Suzuki交叉偶联反应，反应结束后，加入饱和食盐水淬灭反应，反应混合物用乙酸乙酯萃取反应产物，合并有机相，滤液浓缩，用柱层析分离，得到分析纯的联芳类化合物，反应如下式所示：使用该方法一方面降低了联芳类化合物的生产成本，另一方面该方法的使用也在天然产物、医药、农药、除草剂以及高分子传导材料、液晶材料的合成等方面有着广泛的应用前景。

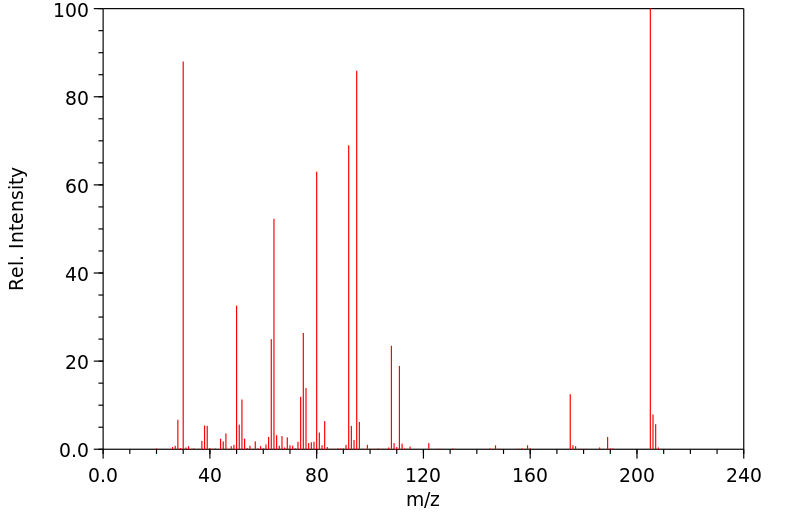

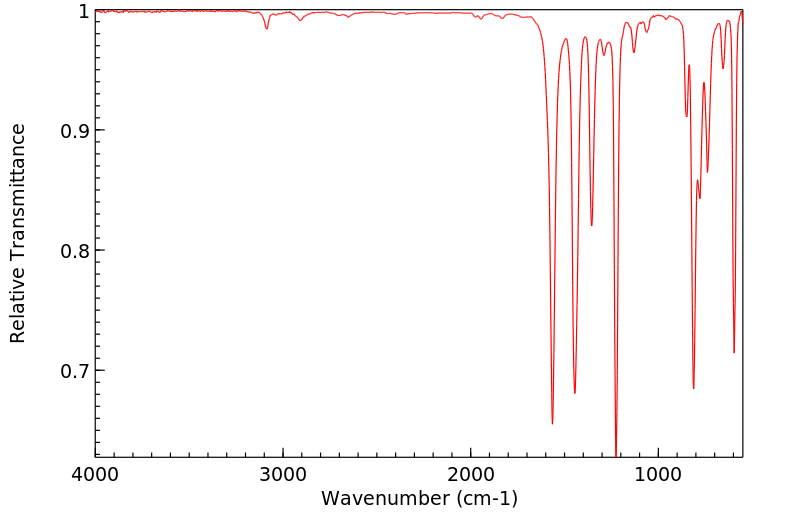

表征谱图
