2-(2H-Benzotriazol-2-yl)-5-methylphenol

• 分子结构分类: 有机化合物 - 有机杂环化合物 - 唑类
• 英文名称: 2-(2H-Benzotriazol-2-yl)-5-methylphenol
• 英文别名: 2-(benzotriazol-2-yl)-5-methylphenol
• 化学式: C₁₃H₁₁N₃O
• 分子量: 225.25
• InChiKey: RTFZCRWZPPIBGX-UHFFFAOYSA-N

计算性质

• 辛醇/水分配系数(LogP)：
  4.3
• 重原子数：
  17
• 可旋转键数：
  1
• 环数：
  3.0
• sp3杂化的碳原子比例：
  0.08
• 拓扑面积：
  50.9
• 氢给体数：
  1
• 氢受体数：
  3

文献信息

• [EN] NEAR-IR ABSORPTIVE COMPOUNDS AND DEVICES INCORPORATING THE SAME<br/>[FR] COMPOSÉS ABSORBANTS PROCHES DE L'IR ET DISPOSITIFS INCORPORANT CEUX-CI
  申请人：GENTEX CORP

  公开号：WO2018075533A1

  公开（公告）日：2018-04-26

  An electrochromic device includes a compound of Formula (I): wherein. R1 and R2 are individually alkyl, alkoxy, or aryloxy; R3, R4, R5, R6, R7, R8 are individually H, alkoxy, or aryloxy; R9 and R10 are individually alkoxy, or aryloxy, or where R1 and R2 are alkyl, R9 and R10 are individually H, alkoxy, or aryloxy; R11 and R12 are individually alkyl or -(CH2)nN+(R20)3 [X], wherein n is from 1 to 20; each R20 is individually alkyl; and X is an anion.

  一种电致变色器件包括化合物Formula（I）：其中。R1和R2分别是烷基、烷氧基或芳基；R3、R4、R5、R6、R7、R8分别是H、烷氧基或芳氧基；R9和R10分别是烷氧基或芳氧基，或者当R1和R2是烷基时，R9和R10分别是H、烷氧基或芳氧基；R11和R12分别是烷基或-(CH2)nN+(R20)3 [X]，其中n为1至20；每个R20分别是烷基；X是阴离子。
• ELECTROCHROMIC COMPOUNDS WITH IMPROVED COLOR STABILITY IN THEIR RADICAL STATES
  申请人：Gentex Corporation

  公开号：US20160229803A1

  公开（公告）日：2016-08-11

  The invention relates to an electrochromic device and uses thereof, wherein the electrochromic device includes an electrochromic compound with reduced intermolecular interactions resulting in uncontrolled color changes represented by Formula (I):

  该发明涉及一种电致色变装置及其使用，其中所述电致色变装置包括一种电致色变化合物，其减少了分子间相互作用，导致由式(I)表示的不受控制的颜色变化。
• HETEROCYCLIC COMPOUND AND ELECTRONIC APPARATUS
  申请人：Samsung Display Co., Ltd.

  公开号：US20190229290A1

  公开（公告）日：2019-07-25

  Provided are a heterocyclic compound and an electronic apparatus. The electronic apparatus includes: a substrate; an organic light-emitting device on the substrate; and a thin film encapsulation portion sealing the organic light-emitting device, the thin film encapsulation portion including an ultraviolet (UV) stabilizing mixture, and the UV stabilizing mixture including a UV absorbent and a radical scavenger.

  提供的是一种杂环化合物和一种电子设备。该电子设备包括：基板；设置在基板上的有机发光器件；以及用于封装有机发光器件的薄膜封装部分，薄膜封装部分包括紫外（UV）稳定混合物，该UV稳定混合物包括UV吸收剂和自由基清除剂。
• ELECTROCHROMIC COMPOUNDS AND DEVICES
  申请人：Gentex Corporation

  公开号：US20200379309A1

  公开（公告）日：2020-12-03

  An electro-optic element includes a first substrate defining first and second surfaces and a second substrate defining third and fourth surfaces. A first electrically conductive layer is disposed on the second surface and a second electrically conductive layer is disposed on the third surface. An electrochromic medium is disposed in a cavity between the first and second substrates, the electrochromic medium including an anodic component and a cathodic component. At least the anodic component is configured to reversibly attenuate transmittance of light having a wavelength within a predetermined wavelength range when in an electrochemically activated state. The anodic component includes a substituted ketal phenazine compound.

  一种电光元件，包括一个定义第一和第二表面的第一基板和一个定义第三和第四表面的第二基板。第二表面上放置了第一电导层，第三表面上放置了第二电导层。在第一和第二基板之间的空腔中放置了一种电致色介质，该电致色介质包括阳极成分和阴极成分。至少阳极成分在电化学激活状态下被配置为可逆地衰减具有预定波长范围内的光的透过率。阳极成分包括一种取代的糖基苯并噻吩化合物。
• Color-stabilized electrochromic devices
  申请人：——

  公开号：US20030174378A1

  公开（公告）日：2003-09-18

  An electrochromic medium for use in a normally operating electrochromic device comprising an anodic material and a cathodic material wherein both of the anodic and cathodic materials are electroactive and at least one of the anodic and cathodic materials is electrochromic, an additive, and means associated with the additive for maintaining a colorless or nearly colorless electrochromic medium while the electrochromic medium is in a high transmission state relative to an electrochromic medium without the additive.

  一种用于正常运行的电致变色装置的电致变色介质，包括阳极材料和阴极材料，其中阳极和阴极材料均为电活性的，且阳极和阴极材料中至少有一种是电致变色的，还包括添加剂以及与添加剂相关联的手段，用于在电致变色介质处于高透射状态时，维持无色或几乎无色的电致变色介质，相对于没有添加剂的电致变色介质。

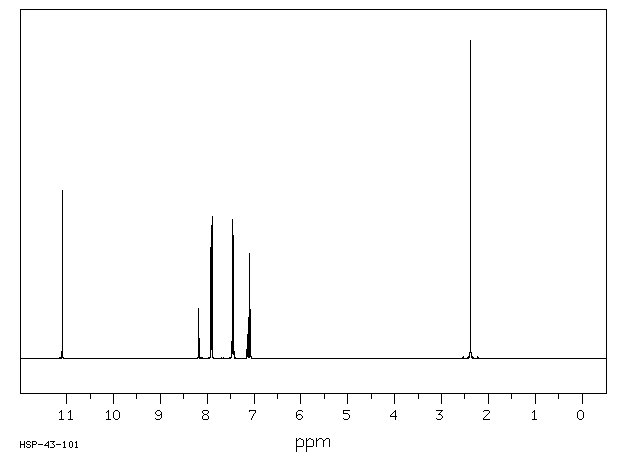

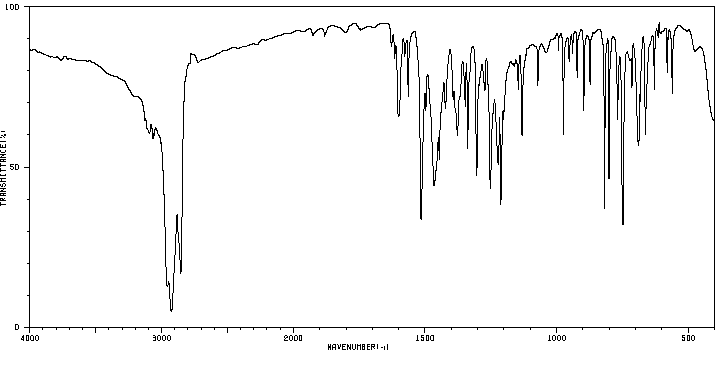

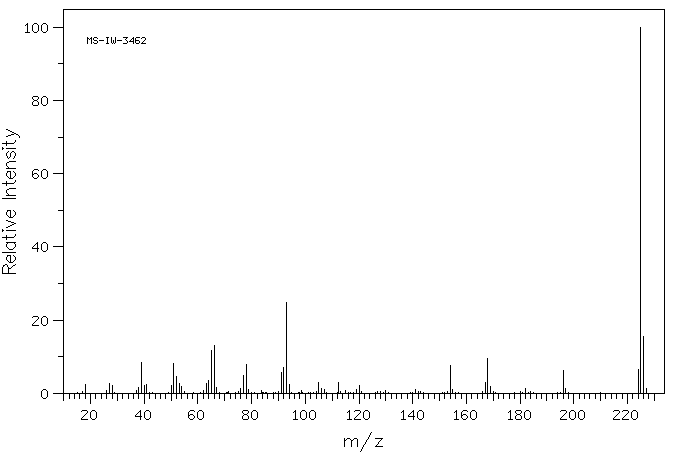

表征谱图
