噻吩并[3,4-b]噻吩 | 250-65-7

• 分子结构分类: 有机化合物 - 有机杂环化合物 - 杂芳族化合物
• 中文名称: 噻吩并[3,4-b]噻吩
• 中文别名: 噻吩并[3,4-B]噻吩
• 英文名称: thieno[3,4-b]thiophene
• 英文别名: T34bT；thieno[2,3-c]thiophene
• CAS: 250-65-7
• 化学式: C₆H₄S₂
• 分子量: 140.23
• InChiKey: PFZLGKHSYILJTH-UHFFFAOYSA-N

物化性质

• 保留指数：
  1155

计算性质

• 辛醇/水分配系数(LogP)：
  2.6
• 重原子数：
  8
• 可旋转键数：
  0
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  56.5
• 氢给体数：
  0
• 氢受体数：
  2

安全信息

• 海关编码：
  2934999090

反应信息

• 作为反应物：
  描述：

  噻吩并[3,4-b]噻吩 在 N-溴代丁二酰亚胺(NBS) 作用下， 以 氯仿 为溶剂， 反应 2.0h， 以93%的产率得到4,6-dibromothieno[3,4-b]thiophene
  参考文献：
  名称：

  Tuning the Band Gap of Low-Band-Gap Polyselenophenes and Polythiophenes: The Effect of the Heteroatom

  摘要：

  A series of new low-band-gap thieno- or selenolo-fused polyselenophenes (P5 and P6) and selenolo-fused polythiophene (P4) (as well as previously reported thieno-fused polythiophene, P3) was prepared systematically by electropolymerization (P4-P6) and by solid-state polymerization (P3, P5 and P6). The 2,5-dibrominated monomers (3Br(2), 5Br(2), and 6Br(2)) undergo solid-state polymerization under slight heating and produce insoluble P3, P5, and P6 as black conducting powders. The spectroelectrochemically measured optical band gaps of P4-P6 films are 0.96, 0.72, and 0.76 eV, respectively. DFT calculations performed on P3-P6 provide excellent estimations of the experimental band gaps of these polymers. The band gap of the polyselenophenes (P5 and P6) is 0.2 eV lower than that of the corresponding polythiophenes (P3 and P4). We introduced a new scheme for band gap control in conjugated polymers by replacing the sulfur atom with a selenium atom in the main and/or peripheral ring, which leads to significant and predictable changes in the band gap of the polymers. This is due to the lower aromaticity of a selenophene ring compared to a thiophene ring. Thus, we have achieved band gap control in very low band gap (similar to 0.7-1.0 eV) polymers through the use of different combinations of selenium and sulfur atoms in the main and peripheral rings.

  DOI：

  10.1021/cm102395v
• 作为产物：
  描述：

  [(Z)-1-Bromo-2-(4-bromo-thiophen-3-yl)-vinyl]-trimethyl-silane 在 双(苯磺酰)硫醚 、 四丁基氟化铵 、 叔丁基锂 作用下， 以 四氢呋喃 、 水 为溶剂， 反应 0.0h， 生成 噻吩并[3,4-b]噻吩
  参考文献：
  名称：

  Syntheses of Novel Group 15 and 16 Thieno[2,3-b]-, Thieno[3,4-b]-, and Thieno[3,2-b]-heteroles

  摘要：

  DOI：

  10.3987/com-97-7911

文献信息

• [EN] SMALL MOLECULE DCN1 INHIBITORS AND THERAPEUTIC METHODS USING THE SAME<br/>[FR] INHIBITEURS DE DCN1 À PETITES MOLÉCULES ET PROCÉDÉS THÉRAPEUTIQUES LES UTILISANT
  申请人：UNIV MICHIGAN REGENTS

  公开号：WO2018183411A1

  公开（公告）日：2018-10-04

  Compounds of formula (I) as inhibitors of DCNl and compositions containing the same are disclosed. Methods of using the DCNl inhibitors in the treatment of diseases and conditions wherein inhibition of DCNl provides a benefit, like oxidative stress-related diseases and conditions, neurodegenerative diseases and conditions, metabolic disorders, and muscular nerve degeneration, also are disclosed.

  公式（I）的化合物被披露为DCNl的抑制剂，以及含有这些化合物的组合物。还披露了在治疗疾病和病况中使用DCNl抑制剂的方法，其中DCNl的抑制提供益处，如氧化应激相关的疾病和病况、神经退行性疾病和病况、代谢紊乱以及肌肉神经退化。
• Covalent Small Molecule DCN1 Inhibitors and Therapeutic Methods Using the Same
  申请人：THE REGENTS OF THE UNIVERSITY OF MICHIGAN

  公开号：US20180289677A1

  公开（公告）日：2018-10-11

  Small molecule covalent inhibitors of DCN1 and compositions containing the same are disclosed. Methods of using the DCN1 covalent inhibitors in the treatment of diseases and conditions wherein inhibition of DCN1 provides a benefit, like oxidative stress-related diseases and conditions, neurodegenerative diseases and conditions, metabolic disorders, and muscular nerve degeneration, also are disclosed.

  揭示了DCN1的小分子共价抑制剂和含有这些抑制剂的组合物。还揭示了在治疗疾病和状况中使用DCN1共价抑制剂的方法，其中DCN1的抑制提供益处，如氧化应激相关的疾病和状况、神经退行性疾病和状况、代谢紊乱以及肌肉神经退化。
• DERIVATIZED MONOMERS FOR MAKING CONDUCTIVE POLYMERS, AND DEVICES MADE WITH SUCH POLYMERS
  申请人：Rostovtsev Vsevolod

  公开号：US20080166564A1

  公开（公告）日：2008-07-10

  There is provided a derivatized conductive monomer and polymer made therefrom. The derivatized monomer has a fluorinated acid substituent. There are also provided electronic devices having a buffer layer containing the polymer.

  提供了一种衍生的导电单体和由此制成的聚合物。衍生的单体具有氟化酸基取代物。还提供了具有包含该聚合物的缓冲层的电子设备。
• [EN] ORGANIC SEMICONDUCTING COMPOUNDS<br/>[FR] COMPOSÉS SEMI-CONDUCTEURS ORGANIQUES
  申请人：MERCK PATENT GMBH

  公开号：WO2018065350A1

  公开（公告）日：2018-04-12

  The invention relates to novel organic semiconducting compounds containing apolycyclicunit, to methods for their preparation and educts or intermediates used therein, to compositions, polymer blends and formulations containing them, to the use of the compounds, compositions and polymer blends as organic semiconductors in, or for the preparation of, organic electronic (OE) devices, especially organic photovoltaic (OPV) devices, perovskite-based solar cell (PSC) devices, organic photodetectors (OPD), organic field effect transistors (OFET) and organic light emitting diodes (OLED), and to OE, OPV, PSC, OPD,OFET and OLED devices comprising these compounds, compositions or polymer blends.

  这项发明涉及含有多环单元的新型有机半导体化合物，涉及它们的制备方法和在其中使用的底物或中间体，涉及含有它们的组合物、聚合物混合物和配方，涉及将这些化合物、组合物和聚合物混合物用作有机半导体在有机电子（OE）器件中的使用，尤其是有机光伏（OPV）器件、钙钛矿太阳能电池（PSC）器件、有机光电探测器（OPD）、有机场效应晶体管（OFET）和有机发光二极管（OLED）的制备，以及包含这些化合物、组合物或聚合物混合物的OE、OPV、PSC、OPD、OFET和OLED器件。
• ORGANIC SEMICONDUCTING COMPOUNDS
  申请人：RAYNERGY TEK INC.

  公开号：US20210070770A1

  公开（公告）日：2021-03-11

  The invention relates to novel organic semiconducting compounds containing a polycyclic unit, to methods for their preparation and educts or intermediates used therein, to compositions, polymer blends and formulations containing them, to the use of the compounds, compositions and polymer blends as organic semiconductors in, or for the preparation of, organic electronic (OE) devices, especially organic photovoltaic (OPV) devices, perovskite-based solar cell (PSC) devices, organic photodetectors (OPD), organic field effect transistors (OFET) and organic light emitting diodes (OLED), and to OE, OPV, PSC, OPD, OFET and OLED devices comprising these compounds, compositions or polymer blends.

  该发明涉及含有多环单元的新型有机半导体化合物，以及其制备方法、所使用的底物或中间体，含有它们的组合物、聚合物混合物和配方，以及将这些化合物、组合物和聚合物混合物用作有机半导体的用途，或用于制备有机电子（OE）器件，特别是有机光伏（OPV）器件、钙钛矿太阳能电池（PSC）器件、有机光电探测器（OPD）、有机场效应晶体管（OFET）和有机发光二极管（OLED），以及包括这些化合物、组合物或聚合物混合物的OE、OPV、PSC、OPD、OFET和OLED器件。

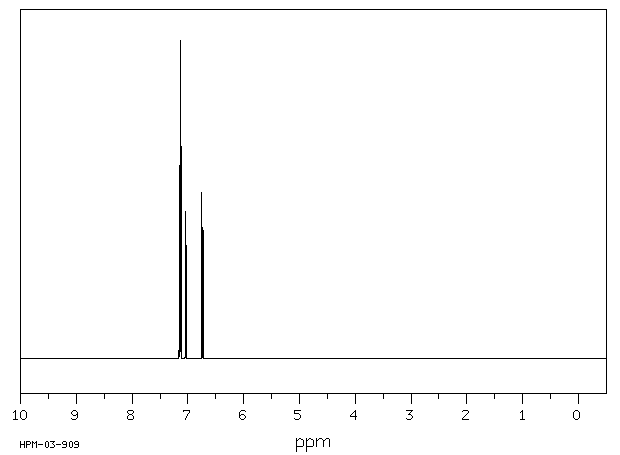

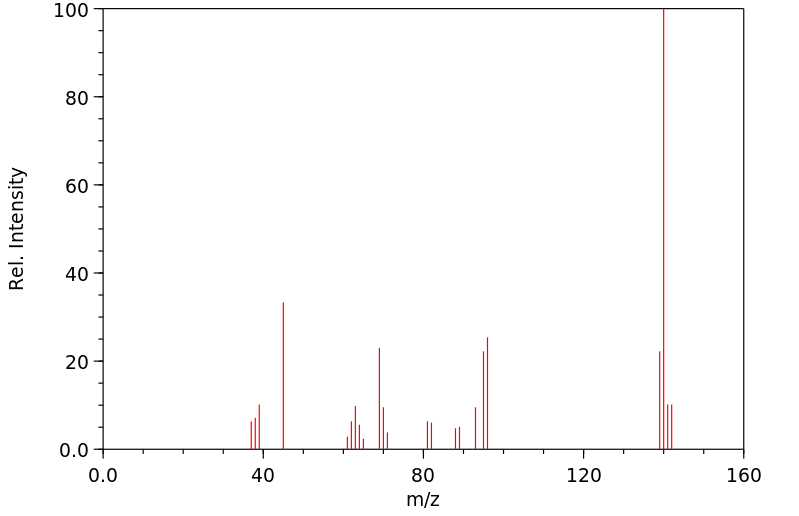

表征谱图
