1-(4-硝基苯基)吡咯烷 | 10220-22-1

• 分子结构分类: 有机化合物 - 有机杂环化合物 - 吡咯烷类
• 中文名称: 1-(4-硝基苯基)吡咯烷
• 英文名称: 1-(4-nitro-phenyl)-pyrrolidine
• 英文别名: 1-(4-Nitrophenyl)pyrrolidine
• CAS: 10220-22-1
• 化学式: C₁₀H₁₂N₂O₂
• mdl: MFCD00020819
• 分子量: 192.217
• InChiKey: IXQSJUBRGIJRCV-UHFFFAOYSA-N

物化性质

• 熔点：
  167-169°C
• 沸点：
  349.9±25.0 °C(Predicted)
• 密度：
  1.233±0.06 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  2.9
• 重原子数：
  14
• 可旋转键数：
  1
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.4
• 拓扑面积：
  49.1
• 氢给体数：
  0
• 氢受体数：
  3

安全信息

• 危险等级：
  IRRITANT
• 海关编码：
  2933990090
• 储存条件：
  室温且干燥

SDS

Material Safety Data Sheet

---

Section 1. Identification of the substance
Product Name: 1-(4-nitrophenyl)pyrrolidine
Synonyms:

---

Section 2. Hazards identification
Harmful by inhalation, in contact with skin, and if swallowed.

---

Section 3. Composition/information on ingredients.
Ingredient name: 1-(4-nitrophenyl)pyrrolidine
CAS number: 10220-22-1

---

Section 4. First aid measures
Skin contact: Immediately wash skin with copious amounts of water for at least 15 minutes while removing
contaminated clothing and shoes. If irritation persists, seek medical attention.
Eye contact: Immediately wash skin with copious amounts of water for at least 15 minutes. Assure adequate
flushing of the eyes by separating the eyelids with fingers. If irritation persists, seek medical
attention.
Inhalation: Remove to fresh air. In severe cases or if symptoms persist, seek medical attention.
Ingestion: Wash out mouth with copious amounts of water for at least 15 minutes. Seek medical attention.

---

Section 5. Fire fighting measures
In the event of a fire involving this material, alone or in combination with other materials, use dry
powder or carbon dioxide extinguishers. Protective clothing and self-contained breathing apparatus
should be worn.

---

Section 6. Accidental release measures
Personal precautions: Wear suitable personal protective equipment which performs satisfactorily and meets local/state/national
standards.
Respiratory precaution: Wear approved mask/respirator
Hand precaution: Wear suitable gloves/gauntlets
Skin protection: Wear suitable protective clothing
Eye protection: Wear suitable eye protection
Methods for cleaning up: Mix with sand or similar inert absorbent material, sweep up and keep in a tightly closed container
for disposal. See section 12.
Environmental precautions: Do not allow material to enter drains or water courses.

---

Section 7. Handling and storage
Handling: This product should be handled only by, or under the close supervision of, those properly qualified
in the handling and use of potentially hazardous chemicals, who should take into account the fire,
health and chemical hazard data given on this sheet.
Store in closed vessels.
Storage:

---

Section 8. Exposure Controls / Personal protection
Engineering Controls: Use only in a chemical fume hood.
Personal protective equipment: Wear laboratory clothing, chemical-resistant gloves and safety goggles.
General hydiene measures: Wash thoroughly after handling. Wash contaminated clothing before reuse.

---

Section 9. Physical and chemical properties
Appearance: Not specified
Boiling point: No data
No data
Melting point:
Flash point: No data
Density: No data
Molecular formula: C10H12N2O2
Molecular weight: 192.2

---

Section 10. Stability and reactivity
Conditions to avoid: Heat, flames and sparks.
Materials to avoid: Oxidizing agents.
Possible hazardous combustion products: Carbon monoxide, nitrogen oxides.

---

Section 11. Toxicological information
No data.

---

Section 12. Ecological information
No data.

---

Section 13. Disposal consideration
Arrange disposal as special waste, by licensed disposal company, in consultation with local waste
disposal authority, in accordance with national and regional regulations.

---

Section 14. Transportation information
Non-harzardous for air and ground transportation.

---

Section 15. Regulatory information
No chemicals in this material are subject to the reporting requirements of SARA Title III, Section
302, or have known CAS numbers that exceed the threshold reporting levels established by SARA
Title III, Section 313.

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

反应信息

• 作为反应物：
  描述：

  1-(4-硝基苯基)吡咯烷 在 5%-palladium/activated carbon 、 三乙胺 作用下， 以 甲醇 、 乙醇 为溶剂， 20.0 ℃ 、275.8 kPa 条件下， 反应 5.5h， 生成 1-(4-isothiocyanatophenyl)pyrrolidine
  参考文献：
  名称：

  Dramatic Acceleration of an Acyl Transfer-Initiated Cascade by Using Electron-Rich Amidine-Based Catalysts

  摘要：

  A tandem rearrangement of alpha,beta-unsaturated, thioesters into tricyclic ene-lactones fails with conventional amidine-based catalysts, but becomes possible when their electron-rich analogs are employed. A highly diastereo- and enantioselective version of this process has been developed using H-PIP 1b, a chiral catalyst prepared over a decade ago, but never utilized since its disclosure.

  DOI：

  10.1021/acs.orglett.7b03044
• 作为产物：
  描述：

  1-(4-Nitro-phenyl)-pyrrolidine 1-oxide 在 copper(l) iodide 、 N,N-二异丙基乙胺 作用下， 以 四氢呋喃 为溶剂， 反应 3.0h， 以96%的产率得到1-(4-硝基苯基)吡咯烷
  参考文献：
  名称：

  Cu(I)-mediated deoxygenation of N-oxides to amines

  摘要：

  A mild and highly efficient deoxygenation of variety of N-oxides using an inexpensive CuX, or a CuX-Zn or CuX-Al couple is described. (c) 2006 Elsevier Ltd. All rights reserved.

  DOI：

  10.1016/j.tet.2006.10.031

文献信息

• Borane-Methyl Sulfide Reductive Cyclization of ω-Ester Alkylamides: A Convenient Synthesis of<i>N</i>-Substituted Cyclic Amines
  作者：Michael C. Venuti、Oswald Ort

  DOI：10.1055/s-1988-27777

  日期：——

  Borane-methyl sulfide (BMS) reduction of variously N-substituted succinamic and glutaramic esters affords the corresponding N-substituted pyrrolidines and piperidines in high yields. The limitations, mainly caused by steric hinderance around the amine nitrogen, and putative intermediates involved in this conversion, as detected by incomplete reaction and/or synthesis followed by BMS reduction, indicate that cyclization and amide reduction successfully compete with ester reduction to afford the N-substituted cyclized amines.

  硼烷-硫化甲基（BMS）还原各种N-取代的琥珀酰胺和戊二酰胺酯，可以高产率地得到相应的N-取代吡咯烷和哌啶。这一转化过程中，由于胺氮周围的空间阻碍限制，以及通过不完全反应和/或合成后续的BMS还原检测到的假定中间体，表明环化作用和酰胺还原成功地与酯还原竞争，从而得到了N-取代的环化胺。
• Hydrogenation of nitroarenes to anilines in a flow reactor using polystyrene supported rhodium in a catalyst-cartridge (Cart-Rh@PS)
  作者：Saurabh Sharma、Yamini Yamini、Pralay Das

  DOI：10.1039/c8nj04646h

  日期：——

  The present methodology described the chemo-selective hydrogenation of various nitroarenes in a flow reactor under polystyrene supported rhodium in a catalyst-cartridge (Cart-Rh@PS) as a heterogeneous nano-catalyst. The polystyrene supported Rh (Rh@PS) nanoparticles (NPs) were prepared by following our earlier reported protocol and packed inside the catalyst-cartridge (Cat-Cart) to obtain Cart-Rh@PS

  本方法学描述了在作为非均相纳米催化剂的催化剂盒（Cart-Rh @ PS）中在聚苯乙烯负载的铑下，在流动反应器中各种硝基芳烃的化学选择性氢化。按照我们先前报道的方法制备聚苯乙烯负载的Rh（Rh @ PS）纳米颗粒（NPS），并将其装入催化剂盒（Cat-Cart）中以获得与ThalesNano的H-Cube Pro兼容的Cart-Rh @ PS流系统。预装催化剂Cart-Rh @ PS的优点如下：多达12次运行无需活化催化剂，通过ICP-AES分析检测到的金属浸出可忽略不计，并且在流动条件下产生的反压大大降低。相同的催化剂Cart-Rh @ PS，对于还原硝基芳烃也有效至1克规模，并且可重复使用。
• Metal-Free Synthesis of <i>N</i>-Aryl-Substituted Azacycles from Cyclic Ethers Using POCl₃
  作者：Minh Thanh La、Soosung Kang、Hee-Kwon Kim

  DOI：10.1021/acs.joc.9b00377

  日期：2019.6.7

  A facile method for the synthesis of N-aryl-substituted azacycles from arylamines and cyclic ethers has been developed. In this study, arylamines were treated with cyclic ethers in the presence of POCl3 and DBU to provide five- and six-membered azacycles. Using this method, various azacycloalkanes, isoindolines, and tetrahydroisoquinolines were prepared in high yields. This synthetic method offers

  已经开发了一种从芳基胺和环醚合成N-芳基取代的氮杂环化合物的简便方法。在这项研究中，芳基胺在POCl 3和DBU的存在下用环醚处理，以提供五元和六元氮杂环。使用这种方法，可以高收率制备各种氮杂环烷烃，异吲哚啉和四氢异喹啉。这种合成方法为由环醚生产氮杂环化合物提供了一种有效的方法。
• Reaction of Mono-, Di-, and Trichloronitrobenzenes with<i>N</i>-Methyl Substituted Cyclic Tertiary Amines under High Pressure
  作者：Toshikazu Ibata、Muhong Shang、Tetsuo Demura

  DOI：10.1246/bcsj.68.2717

  日期：1995.9

  The reactions of mono-, di-, and trichloronitrobenzenes with 1-methylpyrrolidine under high pressure gave products of demethylation and ring-opening through a quaternary pyrrolidinium chloride intermediate formed by the SNAr reaction. On the other hand, the reactions with 1-methylpiperidine and 4-methylmorpholine gave only demethylation products. The selectivities of the reactions of 1-methylpyrrolidine

  单-、二-和三氯硝基苯与 1-甲基吡咯烷在高压下反应，通过 SNAr 反应形成的季吡咯烷氯化物中间体产生去甲基化和开环产物。另一方面，与 1-甲基哌啶和 4-甲基吗啉的反应仅产生去甲基化产物。发现 1-甲基吡咯烷与这些氯硝基苯反应的选择性受吡咯烷鎓基团的相邻取代基的影响。
• Copper(II)-Catalyzed C–N Coupling of Aryl Halides and N-Nucleophiles Promoted by Quebrachitol or Diethylene Glycol
  作者：Fangyu Du、Qifan Zhou、Yang Fu、Yuanguang Chen、Ying Wu、Guoliang Chen

  DOI：10.1055/s-0039-1690707

  日期：2019.12

  Herein, we report the natural ligand quebrachitol (QCT) as a promoter for a Cu(II) catalyst, which is highly effective for N-arylation of various amines and related aryl halides. A series of diarylamine derivatives were obtained in high yields by using diethylene glycol (DEG) as both ligand and solvent. The C–N coupling reactions proceed under mild conditions and exhibit good functional group tolerance

  在本文中，我们报告了天然配体 quebrachitol (QCT) 作为 Cu(II) 催化剂的促进剂，它对各种胺和相关芳基卤化物的 N-芳基化非常有效。通过使用二甘醇（DEG）作为配体和溶剂，以高收率获得了一系列二芳胺衍生物。C-N偶联反应在温和的条件下进行并表现出良好的官能团耐受性。

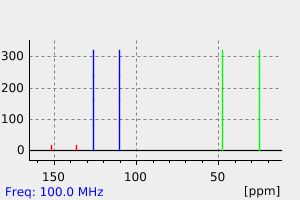

表征谱图
