2,3,4,4'-四羟基二苯基甲烷 | 174462-43-2

• 物质功能分类: 生物 - 细胞培养 - 添加剂
• 分子结构分类: 有机化合物 - 苯类化合物 - 苯和取代衍生物
• 中文名称: 2,3,4,4'-四羟基二苯基甲烷
• 英文名称: 4-[(4-Hydroxyphenyl)methyl]benzene-1,2,3-triol
• CAS: 174462-43-2
• 化学式: C₁₃H₁₂O₄
• 分子量: 232.23
• InChiKey: NBTCXIZQSZQNKJ-UHFFFAOYSA-N

物化性质

• 熔点：
  151 °C

计算性质

• 辛醇/水分配系数(LogP)：
  2.4
• 重原子数：
  17
• 可旋转键数：
  2
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.08
• 拓扑面积：
  80.9
• 氢给体数：
  4
• 氢受体数：
  4

文献信息

• NOVEL TETRACARBOXYLIC DIANHYDRIDE, POLYIMIDE RESIN AND METHOD FOR PRODUCING THE SAME, PHOTOSENSITIVE RESIN COMPOSITIONS, PATTERNING PROCESS, METHOD FOR FORMING CURED FILM, INTERLAYER INSULATING FILM, SURFACE PROTECTIVE FILM, AND ELECTRONIC PARTS
  申请人：SHIN-ETSU CHEMICAL CO., LTD.

  公开号：US20190169211A1

  公开（公告）日：2019-06-06

  The present invention has been made in view of the circumstances herein. An object of the present invention is to provide: a tetracarboxylic dianhydride which can lead to a polyimide usable as a base resin of a photosensitive resin composition capable of forming a fine pattern and obtaining high resolution without impairing excellent characteristics such as mechanical strength and adhesiveness; a polyimide resin obtained by using the tetracarboxylic dianhydride; and a method for producing the polyimide resin. The tetracarboxylic dianhydride is shown by the following general formula (1).

  本发明是基于本文中的情况而作出的。本发明的目的是提供：一种四羧酸二酐，可导致聚酰亚胺，作为感光树脂组合物的基树脂，能够形成细微图案并获得高分辨率，同时不损害优异的特性，如机械强度和粘附性；通过使用该四羧酸二酐获得的聚酰亚胺树脂；以及生产该聚酰亚胺树脂的方法。该四羧酸二酐由以下通用式（1）所示。
• Positive photosensitive resin composition, photo-curable dry film and method for producing the same, patterning process, and laminate
  申请人：SHIN-ETSU CHEMICAL CO., LTD.

  公开号：US10197914B2

  公开（公告）日：2019-02-05

  The present invention provides a positive photosensitive resin composition containing (A) a polymer compound containing a siloxane chain, the polymer compound having a repeating unit shown by the general formula (1) and a weight average molecular weight of 3,000 to 500,000, (B) a photosensitive material capable of generating an acid by light and increasing a dissolution rate in an aqueous alkaline solution, (C) a crosslinking agent, and (D) a solvent. There can be provided a positive photosensitive resin composition that can remedy the problem of delamination caused on a metal wiring such as Cu and Al, an electrode, and a substrate, especially on a substrate such as SiN, and can form a fine pattern having a forward tapered shape without generating a scum and a footing profile in the pattern bottom and on the substrate when a widely used 2.38% TMAH aqueous solution is used as the developer.

  本发明提供了一种含有（A）含有硅氧烷链的聚合物化合物的阳性感光树脂组合物，该聚合物化合物具有由通式（1）所示的重复单元和重量平均分子量为3,000至500,000，（B）能够通过光生成酸并增加在水性碱性溶液中的溶解速率的感光材料，（C）交联剂和（D）溶剂。可以提供一种阳性感光树脂组合物，可以解决在金属线路（如Cu和Al）、电极和基板上引起的剥离问题，特别是在SiN等基板上，可以在使用广泛的2.38％TMAH水溶液作为显影剂时，在图案底部和基板上形成具有前向锥形形状的细微图案，而不会产生污点和底部轮廓。
• NOVEL COMPOUND, POLYIMIDE RESIN AND METHOD OF PRODUCING THE SAME, PHOTOSENSITIVE RESIN COMPOSITION, PATTERNING METHOD AND METHOD OF FORMING CURED FILM, INTERLAYER INSULATING FILM, SURFACE PROTECTIVE FILM, AND ELECTRONIC COMPONENT
  申请人：International Business Machines Corporation

  公开号：US20210317270A1

  公开（公告）日：2021-10-14

  Provided is a compound that can be used as a base resin for a photosensitive resin composition. The photosensitive resin can form a fine pattern and can achieve high resolution without impairing mechanical strength and solubility. The compound is represented by the general formula (1): wherein Z represents a linear, branched or cyclic divalent hydrocarbon group having 2 to 30 carbon atoms; X 1 to X 3 represent any of —CO 2 —, —CONR X1 —, —O—, —NR X1 —, —S—, —SO 2 —, —SO 3 — and —SO 2 NR X1 — and may be the same as or different from each other, provided that R X1 is a hydrogen atom or a monovalent hydrocarbon group having 1 to 30 carbon atoms; Ar represents a divalent aromatic group having 2 to 30 carbon atoms; L 1 and L 2 independently represent a divalent hydrocarbon group having 1 to 30 carbon atoms; and x and y are each independently 0 or 1.

  提供的是一种可以用作光敏树脂组合物的基树脂的化合物。这种光敏树脂可以形成精细图案，并且可以在不影响机械强度和溶解性的情况下实现高分辨率。该化合物由通式（1）表示：其中Z代表具有2到30个碳原子的线性、支链或环状二价碳氢基团；X1到X3代表任何一种—CO2—、—CONRX1—、—O—、—NRX1—、—S—、—SO2—、—SO3—和—SO2NRX1—中的一种，并且它们可以相同也可以不同，只要RX1是氢原子或具有1到30个碳原子的一价碳氢基团；Ar代表具有2到30个碳原子的二价芳香基团；L1和L2分别代表具有1到30个碳原子的二价碳氢基团；x和y分别独立地为0或1。
• BIS(AMINOPHENOL) DERIVATIVE, PROCESS FOR PRODUCING SAME, POLYAMIDE RESIN, POSITIVE PHOTOSENSITIVE RESIN COMPOSITION, PROTECTIVE FILM, INTERLAYER DIELECTRIC FILM, SEMICONDUCTOR DEVICE, AND DISPLAY ELEMENT
  申请人：Terakawa Koji

  公开号：US20100044888A1

  公开（公告）日：2010-02-25

  A bis(aminophenol) derivative having substituents at positions adjacent to two amino groups is provided. The bis(aminophenol) derivative is used as a raw material of a polyamide resin for a positive-tone photosensitive resin composition. A polyamide resin comprising bis(aminophenol) and a structure derived from a carboxylic acid is also provided, the bis(aminophenol) having substituents at positions adjacent to the two amino groups. A positive-tone photosensitive resin composition comprising a polybenzooxazole precursor resin, exhibiting high sensitivity and a high cyclization rate even when cured at a low temperature is provided. Also provided is a positive-tone photosensitive resin composition comprising a polyamide resin having an imide structure, an imide precursor structure, or an amide acid ester structure. The composition exhibits high sensitivity and produces a cured product having low water absorption even when cured at a low temperature.

  本发明提供了一种在两个氨基团相邻位置上具有取代基的双(氨基酚)衍生物。该双(氨基酚)衍生物用作聚酰胺树脂的原材料，用于制备正向感光树脂组合物。还提供了一种聚酰胺树脂，包括双(氨基酚)和由羧酸衍生的结构，其中双(氨基酚)在两个氨基团相邻位置上具有取代基。提供了一种正向感光树脂组合物，包括聚苯并噁唑前体树脂，即使在低温下固化，也表现出高灵敏度和高环化速率。还提供了一种正向感光树脂组合物，包括具有酰亚胺结构、酰亚胺前体结构或酰胺酸酯结构的聚酰胺树脂。该组合物表现出高灵敏度，即使在低温下固化，也能产生低吸水性的固化产物。
• Quinonediazine sulfonic acid esters and positive photoresist compositions comprising the same
  申请人：SUMITOMO CHEMICAL COMPANY, LIMITED

  公开号：EP0695740A1

  公开（公告）日：1996-02-07

  A compound represented by the general formula (I): wherein one of R¹ and R² represents -OQ⁴ and the other represents hydrogen, alkyl, cycloalkyl, alkenyl, alkoxy or halogen; R³, R⁴ and R⁵ each independently represent hydrogen, alkyl, cycloalkyl, alkenyl, alkoxy or halogen; provided that when R² is -OQ⁴, both of R³ and R⁴ are hydrogen or at least one of R¹ and R⁵ is alkyl, cycloalkyl, alkenyl, alkoxy; R⁶ and R⁷ each independently represent hydrogen, alkyl or alkenyl, or R⁶ and R⁷ form a cycloalkane ring; and Q¹, Q², Q³ and Q⁴ each independently represent hydrogen or an o-quinonediazide sulfonyl group, provided that at least one of Q¹, Q², Q³ and Q⁴ is an o-quinonediazide sulfonyl group; a process for producing the same; a photosensitizer comprising the same; and a positive resist composition comprising the same; and    1,2,3-Trihydroxy-4-(4-hydroxy-2,5-dimethylbenzyl) benzene and a positive resist composition comprising the same.

  通式 (I) 所代表的化合物： 其中 R¹ 和 R² 中的一个代表 -OQ⁴，另一个代表氢、烷基、环烷基、烯基、烷氧基或卤素；R³、R⁴ 和 R⁵ 各自独立地代表氢、烷基、环烷基、烯基、烷氧基或卤素；条件是当 R² 为 -OQ⁴ 时，R³ 和 R⁴ 均为氢或 R¹ 和 R⁵ 中至少有一个为烷基、环烷基、烯基、烷氧基； R⁶ 和 R⁷ 各自独立地代表氢、烷基或烯基，或 R⁶ 和 R⁷ 构成环烷环；以及 Q¹、Q²、Q³ 和 Q⁴ 各自独立地代表氢或邻喹酮噻嗪磺酰基，条件是 Q¹、Q²、Q³ 和 Q⁴ 中至少有一个是邻喹酮噻嗪磺酰基； 生产上述物质的工艺；包含上述物质的光敏剂；以及包含上述物质的正抗蚀剂组合物；以及 1,2,3-三羟基-4-(4-羟基-2,5-二甲基苄基)苯和由其组成的正抗蚀剂组合物。

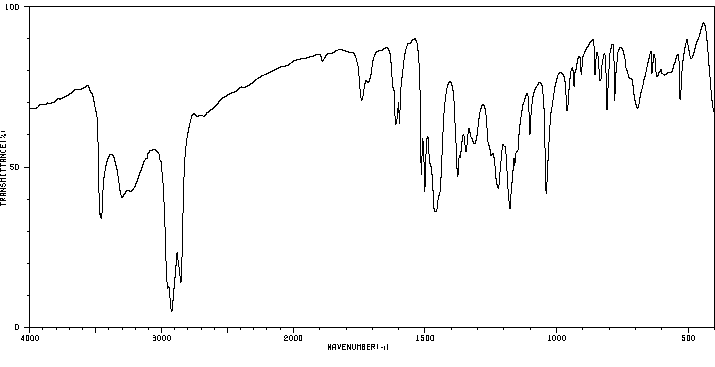

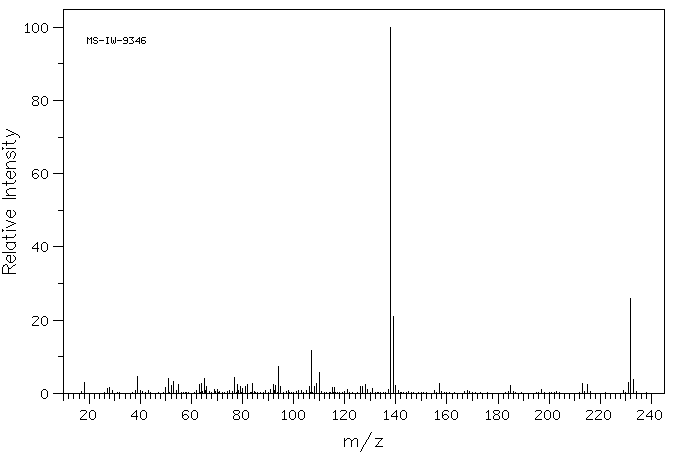

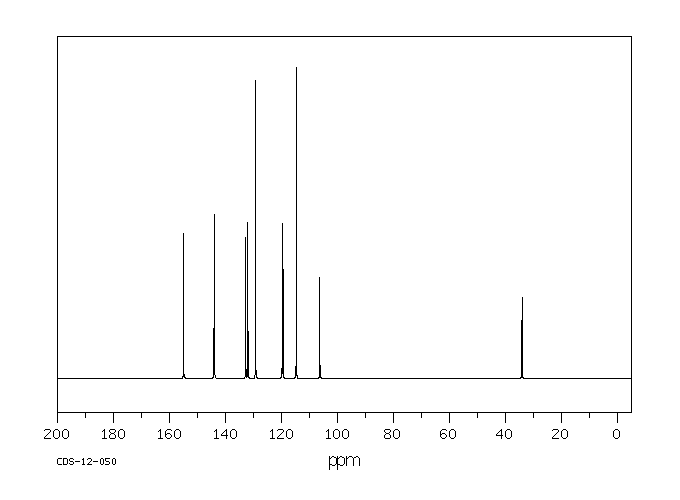

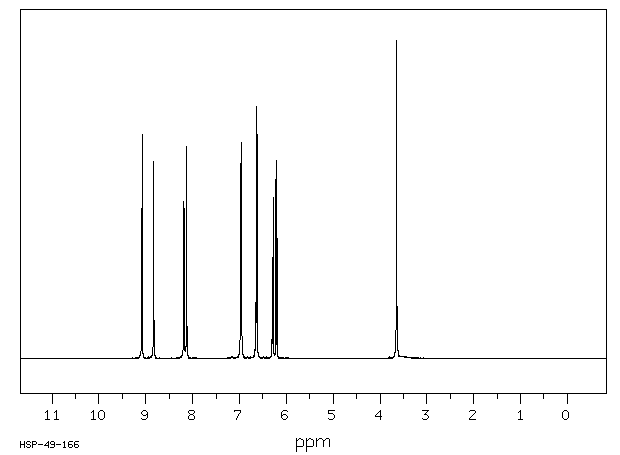

表征谱图
