(2S,4R)-4-methoxy-2-(methoxymethyl)pyrrolidine | 96304-06-2

• 分子结构分类: 有机化合物 - 有机杂环化合物 - 吡咯烷类
• 英文名称: (2S,4R)-4-methoxy-2-(methoxymethyl)pyrrolidine
• 英文别名: (2S,4R)-2-methoxymethyl-4-methoxypyrrolidine；(2S,4R)-4-hydroxyprolinol dimethyl ether
• CAS: 96304-06-2
• 化学式: C₇H₁₅NO₂
• 分子量: 145.202
• InChiKey: PPTNZOLRDCBYIX-NKWVEPMBSA-N

物化性质

• 沸点：
  180.4±25.0 °C(Predicted)
• 密度：
  0.98±0.1 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  -0.2
• 重原子数：
  10
• 可旋转键数：
  3
• 环数：
  1.0
• sp3杂化的碳原子比例：
  1.0
• 拓扑面积：
  30.5
• 氢给体数：
  1
• 氢受体数：
  3

反应信息

• 作为反应物：
  描述：

  (2S,4R)-4-methoxy-2-(methoxymethyl)pyrrolidine 在 caesium carbonate 、 N,N-二异丙基乙胺 作用下， 以 四氢呋喃 、 氯仿 、 N,N-二甲基甲酰胺 为溶剂， 反应 1.42h， 生成 (2S,4R)-N-butyl-5-[1-(4-methoxy-2-methoxymethylpyrrolidinyl)sulfonyl]isatin
  参考文献：
  名称：

  Influence of 4- or 5-substituents on the pyrrolidine ring of 5-[1-(2-methoxymethylpyrrolidinyl)sulfonyl]isatin derivatives on their inhibitory activities towards caspases-3 and -7

  摘要：

  A series of new 4- or 5-substituted pyrrolidine derivatives of 5-[1-(2-methoxymethylpyrrolidinyl)sulfonyl]isatin bearing additional n-butyl or 4-fluorobutyl groups at the isatin nitrogen were prepared and their inhibitory activities have been tested against caspases-3 and -7, which are known to participate in the execution of the programmed cell death, called apoptosis. Several analogues fluorinated at the 4-position of the pyrrolidine ring were also synthesized since such inhibitors might be developed as F-18-radiotracers for molecular imaging of activated caspases in vivo by PET. Enantiomerically pure diastereomeric 4-fluoropyrrolidinyl derivatives inhibited the enzymes in the nanomolar scale, i.e.100-1000 times more efficient than the corresponding 4-methoxy analogues. The 4,4-difluorinated compound showed the best result with IC50 = 362 nM and 178 nM for the aforementioned caspases. In contrast, the 4-methoxy and 4-trifluoromethyl analogues exhibited less inhibition potencies for the enzymes in the mu M scale, whereas all 4-OPEG(4) (PEG(4) = tetraethyleneglycol) and 5-methoxymethyl derivatives were inactive. (C) 2013 Elsevier Masson SAS. All rights reserved.

  DOI：

  10.1016/j.ejmech.2013.04.011
• 作为产物：
  描述：

  (2S,4R)-N-tert-butyloxycarbonyl-2-methoxymethyl-4-methoxypyrrolidine 在 三氟乙酸 作用下， 以 二氯甲烷 为溶剂， 生成 (2S,4R)-4-methoxy-2-(methoxymethyl)pyrrolidine
  参考文献：
  名称：

  Influence of 4- or 5-substituents on the pyrrolidine ring of 5-[1-(2-methoxymethylpyrrolidinyl)sulfonyl]isatin derivatives on their inhibitory activities towards caspases-3 and -7

  摘要：

  A series of new 4- or 5-substituted pyrrolidine derivatives of 5-[1-(2-methoxymethylpyrrolidinyl)sulfonyl]isatin bearing additional n-butyl or 4-fluorobutyl groups at the isatin nitrogen were prepared and their inhibitory activities have been tested against caspases-3 and -7, which are known to participate in the execution of the programmed cell death, called apoptosis. Several analogues fluorinated at the 4-position of the pyrrolidine ring were also synthesized since such inhibitors might be developed as F-18-radiotracers for molecular imaging of activated caspases in vivo by PET. Enantiomerically pure diastereomeric 4-fluoropyrrolidinyl derivatives inhibited the enzymes in the nanomolar scale, i.e.100-1000 times more efficient than the corresponding 4-methoxy analogues. The 4,4-difluorinated compound showed the best result with IC50 = 362 nM and 178 nM for the aforementioned caspases. In contrast, the 4-methoxy and 4-trifluoromethyl analogues exhibited less inhibition potencies for the enzymes in the mu M scale, whereas all 4-OPEG(4) (PEG(4) = tetraethyleneglycol) and 5-methoxymethyl derivatives were inactive. (C) 2013 Elsevier Masson SAS. All rights reserved.

  DOI：

  10.1016/j.ejmech.2013.04.011

文献信息

• Zwitterionic Aza-Claisen Rearrangements Controlled by Pyrrolidine Auxiliaries - Useful Key Steps in Convergent Enantioselective Syntheses
  作者：Nora M. Friedemann、Alice Härter、Sebastian Brandes、Steffen Groß、Dorothea Gerlach、Winfried Münch、Dieter Schollmeyer、Udo Nubbemeyer

  DOI：10.1002/ejoc.201200073

  日期：2012.4

  substituents served as efficient auxiliaries in diastereoselective zwitterionic ketene aza-Claisen rearrangements. Palladium-catalysed N-allylation starting from optically active proline and prolinol derivatives, as well as from (2S,5S)-2,5-dimethoxymethylpyrrolidine, gave various allylamines bearing trisubstituted olefin moieties. Treatment with complex carboxylic acid fluorides in the presence of trimethylaluminium

  手性吡咯烷取代基在非对映选择性两性离子烯酮氮杂-克莱森重排中充当有效助剂。从光学活性脯氨酸和脯氨醇衍生物以及 (2S,5S)-2,5-二甲氧基甲基吡咯烷开始，钯催化的 N-烯丙基化得到各种带有三取代烯烃部分的烯丙胺。在三甲基铝诱导活化乙烯酮加成到氮和随后的 [3,3] σ 重排的情况下，用复合羧酸氟化物处理，得到具有优异简单非对映选择性和高达 11:1 辅助诱导非对映体比率的 γ,δ-不饱和酰胺. 吡咯烷酰胺的裂解是通过碘内酯化实现的，可选择回收辅助吡咯烷。通过合适的酰胺和内酯的 X 射线和 NOEDS 分析确定重排和碘环化的立体化学结果。总的来说，两种对映异构体都可以选择性地获得。以这种方式形成的确定构型的旋光酰胺和内酯应可用作会聚甾体天然和药学上重要的产物合成中的关键中间体。
• New Optically Active 4-Alkoxyprolinol Ethers Derived from trans-4-Hydroxy-L-proline
  作者：Nora M. Friedemann、Astrid Eustergerling、Udo Nubbemeyer

  DOI：10.1002/ejoc.201101156

  日期：2012.2

  (2S,4R)-trans-4-Hydroxy-L-proline has been used as thechiral-pool source in the efficient syntheses of optically active protected 4-hydroxyprolinols. After N-acyl protection andester formation, the first ether moiety was introduced maintaining the chiral centre adjacent to the ester. Then, reduction of the ester delivered the corresponding carbinol, which had to be alkylated selectively to avoid side

  (2S,4R)-trans-4-Hydroxy-L-proline 已被用作手性池源，用于有效合成光学活性保护的 4-羟基脯氨醇。N-酰基保护和酯形成后，引入第一个醚部分，保持与酯相邻的手性中心。然后，酯的还原产生相应的甲醇，必须选择性地将其烷基化以避免与 N-保护基团发生副反应。最后，去除 N-酰基官能团以生成显示定义取代模式的目标甲基和叔丁基醚。如此形成的旋光4-烷氧基脯氨醇醚可用作生物活性化合物中的核心片段或用作合适起始材料中的稳定手性辅助亚单元。
• Discovery of potent, balanced and orally active dual NK1/NK3 receptor ligands
  作者：Jens-Uwe Peters、Torsten Hoffmann、Patrick Schnider、Heinz Stadler、Andreas Koblet、André Alker、Sonia Maria Poli、Theresa M. Ballard、Will Spooren、Lucinda Steward、Andrew J. Sleight

  DOI：10.1016/j.bmcl.2010.04.008

  日期：2010.6

  During a program directed at selective NK1 receptor antagonists, we serendipitously discovered an NK1 receptor ligand with additional affinity for the NK3 receptor. Recognising an opportunity for a drug discovery program aiming for dual NK1/NK3 receptor antagonists, we prepared a series of analogues from a novel, versatile building block. From this series emerged compounds with high and balanced affinities

  在针对选择性NK 1受体拮抗剂的计划中，我们偶然发现了对NK 3受体具有额外亲和力的NK 1受体配体。认识到针对NK 1 / NK 3双重受体拮抗剂的药物开发计划的机会，我们从一种新颖的，通用的构建基块中制备了一系列类似物。从该系列中出现了对NK 1和NK 3受体具有高且平衡亲和力的化合物。口服后，该系列的典型代表在沙土鼠脚踏试验中很活跃。
• DIASTEREOFACE-DIFFERENTIATING ADDITION OF ORGANOMETALLICS TOWARD CHIRAL α-KETOENAMINES
  作者：Tamotsu Fujisawa、Makoto Watanabe、Toshio Sato

  DOI：10.1246/cl.1984.2055

  日期：1984.12.5

  The diastereoface-differentiating reaction of Grignard reagents or organolithium reagents toward chiral cyclic α-ketoenamines, prepared from the corresponding cycloalkane-1,2-dione and optically active pyrrolidine derivatives, was found to give, after hydrolysis, (R)- or (S)-α-hydroxycycloalkanones, respectively, in high enantiomeric excess.

  由相应的环烷-1,2-二酮和具有光学活性的吡咯烷衍生物制备的格氏试剂或有机锂试剂与手性环α-酮烯胺的非对映异构反应发现，水解后可分别得到对映体过量的(R)-或(S)-α-羟基环烷酮。
• Piperazine derivatives
  申请人：Take Kazuhiko

  公开号：US20060014948A1

  公开（公告）日：2006-01-19

  This invention relates to piperazine derivatives of the formula: wherein each symbol is as defined in the description, and its pharmaceutically acceptable salt, to processes for preparation thereof, to pharmaceutical composition comprising the same, and to a use of the same for treating or preventing Tachykinin-mediated diseases in human being or animals.

  这项发明涉及以下式的哌嗪衍生物： 其中每个符号如描述中所定义，并且其药用可接受盐，制备方法，包含相同物质的药物组合物，以及用于治疗或预防人类或动物的Tachykinin介导疾病的用途。

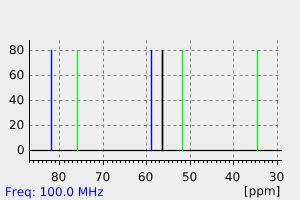

表征谱图
