N-(4-丁基苯基)-1-(4-甲氧基苯基)甲亚胺 | 97402-82-9

• 分子结构分类: 有机化合物 - 苯类化合物 - 苯酚醚
• 中文名称: N-(4-丁基苯基)-1-(4-甲氧基苯基)甲亚胺
• 中文别名: N-(4-甲氧基苯亚甲基)-4-丁基苯胺
• 英文名称: N-(4-butylphenyl)-1-(4-methoxyphenyl)methanimine
• 英文别名: N-(4-methoxybenzylidene)-4-butylaniline；MBBA；4'-methoxybenzylidene-4-n-butylaniline
• CAS: 97402-82-9
• 化学式: C₁₈H₂₁NO
• 分子量: 267.371
• InChiKey: FEIWNULTQYHCDN-XMHGGMMESA-N

计算性质

• 辛醇/水分配系数(LogP)：
  4.79
• 重原子数：
  20.0
• 可旋转键数：
  6.0
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.28
• 拓扑面积：
  21.59
• 氢给体数：
  0.0
• 氢受体数：
  2.0

反应信息

• 作为反应物：
  描述：

  N-(4-丁基苯基)-1-(4-甲氧基苯基)甲亚胺 、 环戊胺 生成 (E)-N-(4-methoxybenzylidene)cyclopentanamine
  参考文献：
  名称：

  组成动态液晶中组分交换的电场调制。

  摘要：

  DOI：

  10.1002/anie.200600430
• 作为产物：
  描述：

  4-正丁基苯胺 、 4-甲氧基苯甲醛 以 乙醇 为溶剂， 反应 3.0h， 生成 N-(4-丁基苯基)-1-(4-甲氧基苯基)甲亚胺
  参考文献：
  名称：

  Nuclear magnetic relaxation of nematic liquid crystals, N-(4-methoxybenzylidene)-4′-n-butylaniline and N-(2-hydroxy-4-methoxybenzylidene)-4′-n-butylaniline

  摘要：

  DOI：

  10.1016/0022-2364(81)90005-6

文献信息

• METAL ORGANIC LIQUID CRYSTAL DYES
  申请人：GAUZY LTD.

  公开号：US20170355908A1

  公开（公告）日：2017-12-14

  A dye composition dissolvable within a liquid crystal host device (including: polymer dispersed liquid crystal, polymer network liquid crystal, polymer stabilized liquid crystal, liquid crystal displays and similar devices), comprising eutectic mixtures of dichroic metallomesogen molecules. The aforesaid metallomesogen molecules comprise chromophore groups synthesized by physical and chemical mixing methods.

  一种可在液晶主机装置内溶解的染料组合物（包括：聚合物分散液晶、聚合物网络液晶、聚合物稳定液晶、液晶显示器和类似装置），包括二色性金属介晶分子的共晶混合物。上述金属介晶分子包括通过物理和化学混合方法合成的色团基团。
• PATTERN FORMING METHOD, UNDER COATING AGENT, AND LAMINATE
  申请人：Oji Holdings Corporation

  公开号：US20200048491A1

  公开（公告）日：2020-02-13

  It is an object of the present invention to provide a pattern forming method capable of easily forming a phase-separated structure with high accuracy, even in the case of widening the applicable range of a pattern size. The present invention relates to a pattern forming method comprising: applying an under coating agent onto a substrate, and applying a self-assembly composition for pattern formation to the surface of the substrate, onto which the under coating agent has been applied, and then forming a self-assembly film according to self-assembly phase separation, wherein the self-assembly composition for pattern formation comprises a block copolymer comprising a polymerization unit (a) having at least one selected from a structure represented by a formula ( 103 ) and a structure represented by a formula ( 104 ), and a polymerization unit (b) having a structure represented by a formula ( 105 ).

  本发明的目的是提供一种能够在扩大图案尺寸适用范围的情况下，轻松形成具有高精度的相分离结构的图案形成方法。本发明涉及一种图案形成方法，包括：在基板上涂覆底涂剂，并将用于图案形成的自组装组合物应用到已涂覆底涂剂的基板表面上，然后根据自组装相分离形成自组装膜，其中用于图案形成的自组装组合物包括一种嵌段共聚物，该嵌段共聚物包括至少具有下列结构之一的聚合单元（a）和具有下列结构的聚合单元（b）。
• Compositions and liquid crystals
  申请人：Abbott Nicholas

  公开号：US20070099249A1

  公开（公告）日：2007-05-03

  The present invention relates to compounds, compositions, and methods in the field of detection of analytes. In particular to detection of viruses, cells, bacteria, lipid-membrane containing organisms, proteins, nucleic acids, carbohydrates and other biomolecules, organic molecules and inorganic molecules using a liquid crystal assay format.

  本发明涉及检测分析物的化合物、组合物和方法领域。特别是使用液晶测定格式检测病毒、细胞、细菌、含有脂质膜的生物体、蛋白质、核酸、碳水化合物和其他生物分子、有机分子和无机分子。
• Colored photosensitive resin composition, and color filter array and solid-state image pickup device using the same
  申请人：Miya Yoshiko

  公开号：US20080237553A1

  公开（公告）日：2008-10-02

  A colored photosensitive resin composition comprising an alkali-soluble resin, a photosensitive compound, a curing agent, a solvent and a colorant represented by the formula (I): The colored photosensitive resin composition can form a color filter array which shows good spectral characteristics.

  一种有色光敏树脂组合物，包括碱溶性树脂、光敏化合物、固化剂、溶剂和由式(I)表示的着色剂。该有色光敏树脂组合物可以形成一个显示良好光谱特性的彩色滤光片阵列。
• COMPOSITION COMPRISING CURABLE DICHROIC DYE FOR FORMING OPTICAL COMPONENT AND AN OPTICAL COMPONENT PRERARED USING THE SAME
  申请人：Cho Yong Il

  公开号：US20100055353A1

  公开（公告）日：2010-03-04

  The present invention relates to a composition comprising a curable dichroic dye and a curable liquid crystal compound, which are used to prepare an optical component that is vertically oriented to give a narrow viewing angle, to form an optical component, and an optical component comprising an optical component layer prepared using the same. There is provided a composition for forming an optical component comprising 0.1-90 parts by weight of a dichroic dye and 10-98.85 parts by weight of a curable liquid crystal compound, and there is also provided an optical component comprising an optical component layer in which a curable liquid crystal compound and a curable dichroic dye are vertically oriented. The optical component comprising an optical component layer in which a curable dichroic dye and a curable liquid crystal compound are vertically oriented and which is made of the composition comprising a curable dichroic dye and a curable liquid crystal compound for forming an optical component has excellent physical properties such as heat resistance, durability to high temperature and high moisture, vertical orientation and dichroic ratio, and also adjust a narrow viewing angle. The durability in the high temperature and high moisture is due to the cross linking shape of the optical component layer.

  本发明涉及一种组合物，包括可固化的二色性染料和可固化的液晶化合物，用于制备垂直定向的、具有狭窄视角的光学组件，形成光学组件，以及包含使用相同的光学组件层的光学组件。提供了一种用于形成光学组件的组合物，包括0.1-90重量份的二色性染料和10-98.85重量份的可固化液晶化合物，还提供了一种光学组件，其中包含垂直定向的可固化液晶化合物和可固化二色性染料的光学组件层。由可固化二色性染料和可固化液晶化合物组成的用于形成光学组件的组合物制成的光学组件，具有优异的物理性能，如耐高温、耐高湿、垂直定向和二色性比，还可以调节狭窄的视角。在高温和高湿环境下的耐久性是由于光学组件层的交联形状。

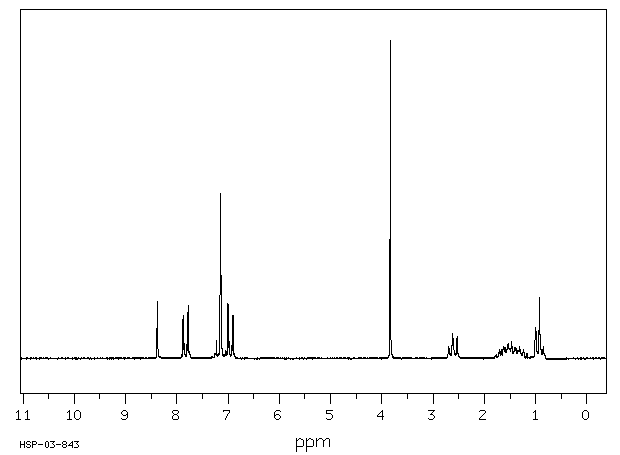

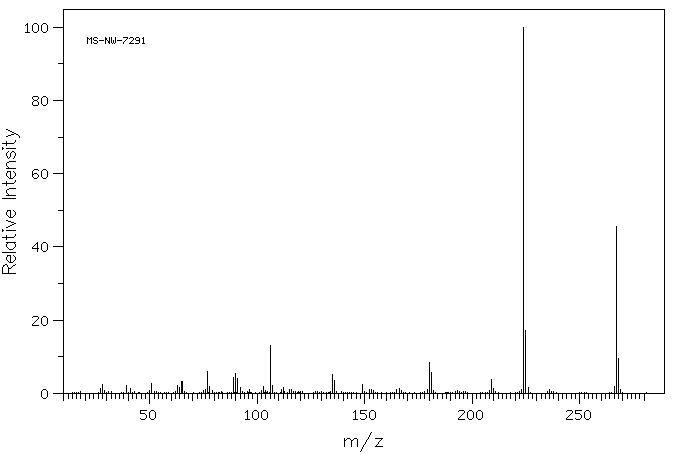

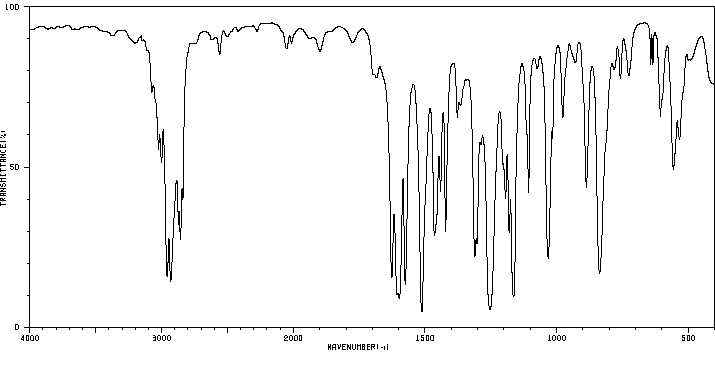

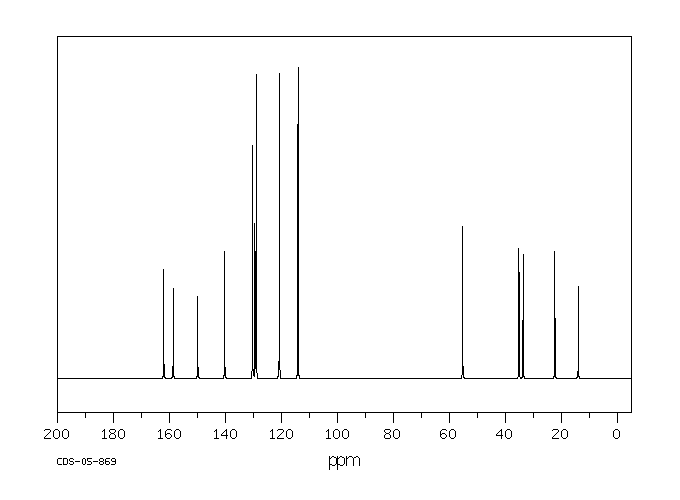

表征谱图
