1,1-双(对二乙氨基苯基)-4,4-二苯基-1,3-丁二烯 | 109995-82-6

• 物质功能分类: 化学试剂 - 有机试剂 - 烯烃（环状与无环状）
• 分子结构分类: 有机化合物 - 苯类化合物 - 苯和取代衍生物
• 中文名称: 1,1-双(对二乙氨基苯基)-4,4-二苯基-1,3-丁二烯
• 英文名称: 1,1-bis (p-diethylaminophenyl)-4,4-diphenyl-1,3-butadiene
• 英文别名: 1,1-Bis(4-diethylaminophenyl)-4,4-diphenyl-1,3-butadiene；4-[1-[4-(diethylamino)phenyl]-4,4-diphenylbuta-1,3-dienyl]-N,N-diethylaniline
• CAS: 109995-82-6
• 化学式: C₃₆H₄₀N₂
• mdl: MFCD00799405
• 分子量: 500.727
• InChiKey: MNEPURVJQJNPQW-UHFFFAOYSA-N

物化性质

• 沸点：
  670.7±55.0 °C(Predicted)
• 密度：
  1.055±0.06 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  10.3
• 重原子数：
  38
• 可旋转键数：
  11
• 环数：
  4.0
• sp3杂化的碳原子比例：
  0.222
• 拓扑面积：
  6.5
• 氢给体数：
  0
• 氢受体数：
  2

文献信息

• [EN] NEW TETRAHYDROPYRANYL COMPOUND AND METHOD FOR PRODUCING THE TETRAHYDROPYRANYL COMPOUND<br/>[FR] NOUVEAU COMPOSÉ TÉTRAHYDROPYRANYLE ET PROCÉDÉ DE PRODUCTION DU COMPOSÉ TÉTRAHYDROPYRANYLE
  申请人：RICOH CO LTD

  公开号：WO2011158950A1

  公开（公告）日：2011-12-22

  To provide a tetrahydropyranyl compound represented by General Formula (1) below: General Formula (1) where X denotes any one of a substituted or unsubstituted alkyl group, an oxygen atom, and a substituted or unsubstituted aromatic hydrocarbon group, R1, R2, R3, R4, R5 and R6 each denote any one of a hydrogen atom, a methyl group and an ethyl group, and n denotes an integer of 1 to 4.

  提供以下通式（1）所代表的四氢吡喃基化合物：通式（1）中，X表示取代或未取代的烷基、氧原子以及取代或未取代的芳香烃基中的任意一个；R1、R2、R3、R4、R5和R6分别表示氢原子、甲基和乙基中的任意一个；n表示1到4之间的整数。
• ARYLAMINE COMPOUND AND ELECTROPHOTOGRAPHIC PHOTORECEPTOR
  申请人：WANG Yahui

  公开号：US20080153019A1

  公开（公告）日：2008-06-26

  An arylamine compound represented by formula (1): wherein R1 to R4 each independently represents a linear alkyl group or an arylalkenyl group, provided that when all of R1 to R4 represent linear alkyl groups, at least one of R1 to R4 represents a linear alkyl group having a carbon number of 3 or more; and an electrophotographic photoreceptor.

  一种芳胺化合物，其化学式表示为（1）：其中R1到R4各自独立地表示线性烷基或芳基烯基基团，但当R1到R4全部表示线性烷基时，至少有一个R1到R4表示具有3个或更多碳原子的线性烷基；以及一种电子照相光导体。
• Triphenylene compound, method for making
  申请人：Tanaka Yuuji

  公开号：US20060024595A1

  公开（公告）日：2006-02-02

  The present invention relates to triphenylene compounds useful, for example, in an electrophotographic photoreceptor, and to a method for manufacturing these compounds.

  本发明涉及三苯基化合物，例如用于电子照相感光体中，并涉及一种制造这些化合物的方法。
• Electrophotographic photosensensitive member
  申请人：IDEMITSU PETROCHEMICAL CO. LTD.

  公开号：EP0443626A2

  公开（公告）日：1991-08-28

  An electrophotographic photosensitive member has a electroconductive support and a photoconductive layer formed on a surface of the electroconductive support, in which the surface of the photoconductive layer is provided with a protective layer composed of a cured resin of a curable phosphazene compound as the outermost layer or in which the surface of the photocon- ductive layer is composed of the curable phosphazene compound. The electrophotographic photosensitive member has a high surface hardness, is excellent in durability, and provides stable image without any distortion.

  一种电子照相感光元件具有一个导电支架和一个形成于导电支架表面的光电导层，其中光电导层的表面具有一个由可固化磷苯化合物的固化树脂构成的保护层作为最外层，或者光电导层的表面由可固化磷苯化合物构成。这种电子照相感光构件表面硬度高，耐久性好，图像稳定不变形。
• Electrophotographic member
  申请人：HITACHI CHEMICAL CO., LTD.

  公开号：EP0475676A1

  公开（公告）日：1992-03-18

  Disclosed is an electrophotographic member containing as a charge transport material a fluorine-containing N,N,N′,N′-tetraarylbenzidine derivative which is remarkably excellent in solubility in an organic solvent and/or a binder such as polycarbonate resin, etc., can show very excellent electrophotographic properties such as high sensitivity, low residual potential and high durability. Further, a fluorine-containing N,N,N′,N′-tetraarylbenzidine derivative usable as a charge transport material, and a process for producing the same are disclosed. Furthermore, a fluorine-containing diarylamine usable for producing the fluorine-containing N,N,N′,N′-tetraarylbenzidine derivative, and a process for producing the same are disclosed.

  本发明公开了一种含有含氟 N，N，N′，N′-四芳基联苯胺衍生物作为电荷传输材料的电致发光构件，该衍生物在有机溶剂和/或聚碳酸酯树脂等粘合剂中的溶解性极佳，可显示出非常优异的电致发光性能，例如高灵敏度、低残留电位和高耐久性。此外，还公开了一种可用作电荷传输材料的含氟 N,N,N′,N′-四芳基联苯胺衍生物及其生产工艺。此外，还公开了一种可用于生产含氟 N,N,N′,N′-四芳基联苯胺衍生物的含氟二芳基胺及其生产工艺。

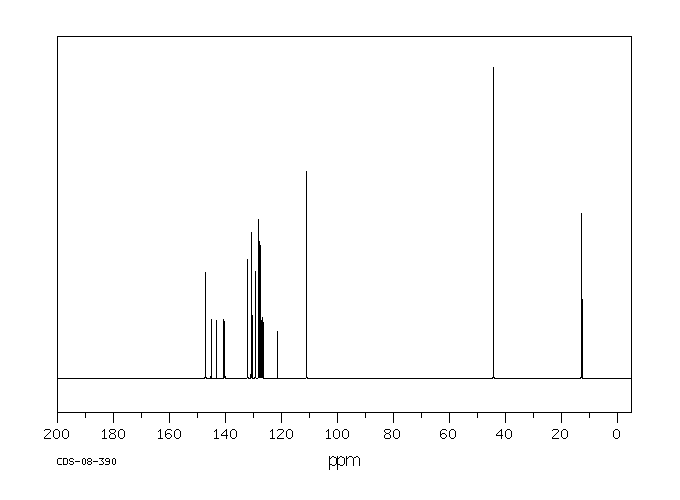

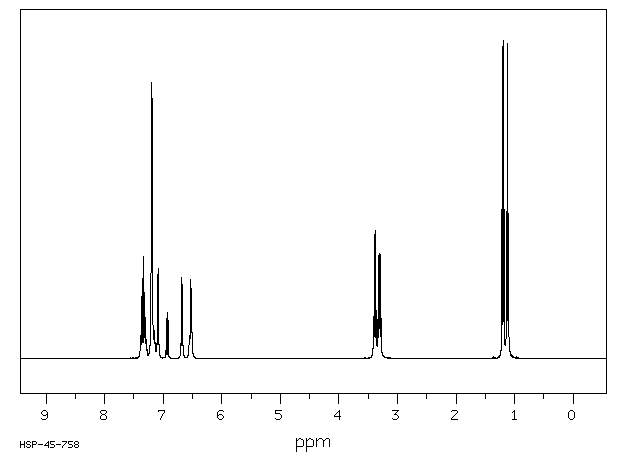

表征谱图
