2-甲基双环[2.2.1!庚-5-烯-2-羧酸 | 825-03-6

• 分子结构分类: 有机化合物 - 有机酸及其衍生物 - 羧酸及其衍生物
• 中文名称: 2-甲基双环[2.2.1!庚-5-烯-2-羧酸
• 中文别名: 2-甲基双环[2.2.1]-5-庚烯-2-羧酸
• 英文名称: 2-exo-Methyl-5-norbornen-2-endo-carbonsaeure
• 英文别名: 2-methyl-5-norbornene-2-carboxylic acid；6-methyl bicyclo[2,2,1]2-hepten-6-yl-carboxylic acid；2-methylbicyclo [2.2.1]hept-5-ene-2-carboxylic acid；2-Methylbicyclo<2.2.1>hept-5-en-2-carbonsaeure；2-Methylbicyclo[2.2.1]hept-5-en-2-carbonsaeure；2-Methylbicyclo[2.2.1]hept-5-ene-2-carboxylic acid
• CAS: 825-03-6
• 化学式: C₉H₁₂O₂
• 分子量: 152.193
• InChiKey: JIHFJSOMLKXSSQ-UHFFFAOYSA-N

物化性质

• 熔点：
  80 °C
• 沸点：
  144-145 °C(Press: 20 Torr)
• 密度：
  1.178±0.06 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  1.5
• 重原子数：
  11
• 可旋转键数：
  1
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.67
• 拓扑面积：
  37.3
• 氢给体数：
  1
• 氢受体数：
  2

安全信息

• 危险品标志：
  Xi
• 危险类别码：
  R36/37/38
• 海关编码：
  2916209090
• 安全说明：
  S26,S37/39

SDS

Name:	2-Methylbicyclo[2.2.1]hept-5-ene-2-carboxylic acid 97% Material Safety Data Sheet
Synonym:
CAS:	825-03-6

Section 1 - Chemical Product MSDS Name:2-Methylbicyclo[2.2.1]hept-5-ene-2-carboxylic acid 97% Material Safety Data Sheet
Synonym:

---

Section 2 - COMPOSITION, INFORMATION ON INGREDIENTS

CAS#	Chemical Name	content	EINECS#
825-03-6	2-Methylbicyclo[2.2.1]hept-5-ene-2-car	97%	unlisted

Hazard Symbols: XI
Risk Phrases: 36/37/38

---

Section 3 - HAZARDS IDENTIFICATION
EMERGENCY OVERVIEW
Irritating to eyes, respiratory system and skin.
Potential Health Effects
Eye:
Causes eye irritation.
Skin:
Causes skin irritation. May be harmful if absorbed through the skin.
Ingestion:
May cause irritation of the digestive tract. May be harmful if swallowed.
Inhalation:
Causes respiratory tract irritation. May be harmful if inhaled.
Chronic:
Not available.

---

Section 4 - FIRST AID MEASURES
Eyes: Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper and lower eyelids. Get medical aid.
Skin:
Get medical aid. Flush skin with plenty of water for at least 15 minutes while removing contaminated clothing and shoes.
Ingestion:
Get medical aid. Wash mouth out with water.
Inhalation:
Remove from exposure and move to fresh air immediately. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Get medical aid.
Notes to Physician:
Treat symptomatically and supportively.

---

Section 5 - FIRE FIGHTING MEASURES
General Information:
As in any fire, wear a self-contained breathing apparatus in pressure-demand, MSHA/NIOSH (approved or equivalent), and full protective gear.
Extinguishing Media:
Use water spray, dry chemical, carbon dioxide, or chemical foam.

---

Section 6 - ACCIDENTAL RELEASE MEASURES
General Information: Use proper personal protective equipment as indicated in Section 8.
Spills/Leaks:
Vacuum or sweep up material and place into a suitable disposal container.

---

Section 7 - HANDLING and STORAGE
Handling:
Avoid breathing dust, vapor, mist, or gas. Avoid contact with skin and eyes.
Storage:
Store in a cool, dry place. Store in a tightly closed container.

---

Section 8 - EXPOSURE CONTROLS, PERSONAL PROTECTION
Engineering Controls:
Facilities storing or utilizing this material should be equipped with an eyewash facility and a safety shower. Use adequate ventilation to keep airborne concentrations low.
Exposure Limits CAS# 825-03-6: Personal Protective Equipment Eyes: Not available.
Skin:
Wear appropriate protective gloves to prevent skin exposure.
Clothing:
Wear appropriate protective clothing to prevent skin exposure.
Respirators:
Follow the OSHA respirator regulations found in 29 CFR 1910.134 or European Standard EN 149. Use a NIOSH/MSHA or European Standard EN 149 approved respirator if exposure limits are exceeded or if irritation or other symptoms are experienced.

---

Section 9 - PHYSICAL AND CHEMICAL PROPERTIES

Physical State: Solid
Color: Not available.
Odor: Not available.
pH: Not available.
Vapor Pressure: Not available.
Viscosity: Not available.
Boiling Point: Not available.
Freezing/Melting Point: 83 - 85 deg C
Autoignition Temperature: Not available.
Flash Point: Not available.
Explosion Limits, lower: Not available.
Explosion Limits, upper: Not available.
Decomposition Temperature:
Solubility in water:
Specific Gravity/Density:
Molecular Formula: C9H12O2
Molecular Weight: 152.19

---

Section 10 - STABILITY AND REACTIVITY
Chemical Stability:
Not available.
Conditions to Avoid:
Incompatible materials.
Incompatibilities with Other Materials:
Strong oxidizing agents.
Hazardous Decomposition Products:
Carbon monoxide, carbon dioxide.
Hazardous Polymerization: Has not been reported

---

Section 11 - TOXICOLOGICAL INFORMATION
RTECS#:
CAS# 825-03-6 unlisted.
LD50/LC50:
Not available.
Carcinogenicity:
2-Methylbicyclo[2.2.1]hept-5-ene-2-carboxylic acid - Not listed by ACGIH, IARC, or NTP.

---

Section 12 - ECOLOGICAL INFORMATION

---

Section 13 - DISPOSAL CONSIDERATIONS
Dispose of in a manner consistent with federal, state, and local regulations.

---

Section 14 - TRANSPORT INFORMATION

IATA
No information available.
IMO
No information available.
RID/ADR
No information available.

---

Section 15 - REGULATORY INFORMATION

European/International Regulations
European Labeling in Accordance with EC Directives
Hazard Symbols: XI
Risk Phrases:
R 36/37/38 Irritating to eyes, respiratory system
and skin.
Safety Phrases:
S 26 In case of contact with eyes, rinse immediately
with plenty of water and seek medical advice.
S 37/39 Wear suitable gloves and eye/face
protection.
WGK (Water Danger/Protection)
CAS# 825-03-6: No information available.
Canada
None of the chemicals in this product are listed on the DSL/NDSL list.
CAS# 825-03-6 is not listed on Canada's Ingredient Disclosure List.
US FEDERAL
TSCA
CAS# 825-03-6 is not listed on the TSCA inventory.
It is for research and development use only.

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

反应信息

• 作为反应物：
  描述：

  2-甲基双环[2.2.1!庚-5-烯-2-羧酸 生成 (1S)-2-甲基双环[2.2.1]庚-5-烯-2-羧酸
  参考文献：
  名称：

  POLONSKI T.; DAUTER Z., J. CHEM. SOC. PERKIN TRANS.,(1986) N 10, 1781-1728

  摘要：

  DOI：
• 作为产物：
  描述：

  在 sodium hydroxide 作用下， 以 甲醇 、 水 为溶剂， 以46%的产率得到2-甲基双环[2.2.1!庚-5-烯-2-羧酸
  参考文献：
  名称：

  Synthesis of a 1,3-spiro-amino-alcohol-derived chiral auxiliary and its application to Diels–Alder reactions

  摘要：

  A short synthesis and resolution of (1R,5R,6R)-6-aminospiro[4.4]nonan-2-ol, 11, is reported. The pivalamide derivative (+)-5 gives excellent diastereo- and regiocontrol as well as endo selectivity as a chiral auxiliary in the BCl3-catalyzed Diels-Alder reaction with a variety of symmetrical and unsymmetrical dienes. The adducts are readily cleaved by saponification, allowing recovery and reuse of (+)-5. (C) 2003 Elsevier Science Ltd. All rights reserved.

  DOI：

  10.1016/s0957-4166(03)00051-x

文献信息

• [EN] OXIME ESTER PHOTOINITIATORS<br/>[FR] PHOTO-INITIATEURS À BASE D'ESTER D'OXIME
  申请人：BASF SE

  公开号：WO2021175855A1

  公开（公告）日：2021-09-10

  Disclosed are α-oxo oxime ester compounds based on carbazole derivatives which have specific substituent groups useful as a photoinitiator, as well as photopolymerizable compositions comprising said photoinitiator and ethylenically unsaturated compounds. The photopolymerizable compositions are useful, for example, in photoresist formulations for display applications, e.g. liquid crystal display (LCD), organic light emitting diode (OLED) and touch panel.

  揭示了基于咔唑衍生物的α-氧代肟酯化合物，其具有特定取代基，可用作光引发剂，以及包括所述光引发剂和乙烯不饱和化合物的光聚合组合物。这些光聚合组合物可用于例如显示应用的光阻配方，例如液晶显示器（LCD）、有机发光二极管（OLED）和触摸面板。
• OXIME ESTER PHOTOINITIATORS
  申请人：BASF SE

  公开号：US20180208583A1

  公开（公告）日：2018-07-26

  Compounds of the formulae (I) or (II) wherein X is A is O, S, NR 5 or CR 16 R 17 ; R 1 is for example hydrogen or C 1 -C 20 alkyl R 2 is for example hydrogen, C 1 -C 20 alkyl or C 6 -C 20 aryl R 5 for example is C 1 -C 20 alkyl; R 7 , R 8 , R 9 , R 10 and R 11 for example independently of each other are hydrogen. C 1 -C 20 alkyl, halogen, CN or NO 2 ; Ar 1 is for example unsubstituted or substituted C 6 -C 20 aryl, C 3 -C 20 heteroaryl, C 6 -C 20 aroyl, C 3 -C 20 heteroarylcarbonyl or or Ar 1 is Ar 2 is for example phenylene, all of which are unsubstituted or substituted M is for example unsubstituted or substituted C 1 -C 20 alkylene Y is a direct bond, O, S, NR 5 or CO; Z 1 is for example O or S; Z 2 is a direct bond, O, S or NR 5 ; and Q is CO or a direct bond.

  公式(I)或(II)的化合物 其中 X是 A是O, S, NR 5 或CR 16 R 17 ; R 1 例如是氢或C 1 -C 20 烷基 R 2 例如是氢, C 1 -C 20 烷基或C 6 -C 20 芳基 R 5 例如是C 1 -C 20 烷基; R 7 , R 8 , R 9 , R 10 和R 11 例如彼此独立是氢. C 1 -C 20 烷基, 卤素, CN或NO 2 ; Ar 1 例如是不取代或取代的C 6 -C 20 芳基, C 3 -C 20 杂芳基, C 6 -C 20 芳酰基, C 3 -C 20 杂芳基甲酰基或 或Ar 1 是 Ar 2 例如是苯基, 所有这些都不取代或取代 M例如是不取代或取代的C 1 -C 20 亚烷基 Y是直接键, O, S, NR 5 或CO; Z 1 例如是O或S; Z 2 是直接键, O, S或NR 5 ; 和 Q是CO或直接键。
• BASIC COMPOUND, CHEMICALLY AMPLIFIED RESIST COMPOSITION, AND PATTERNING PROCESS
  申请人：Hatakeyama Jun

  公开号：US20120141938A1

  公开（公告）日：2012-06-07

  A chemically amplified resist composition comprising a base polymer, an acid generator, and an amine quencher in the form of a β-alanine, γ-aminobutyric acid or 5-aminovaleric acid derivative having an acid labile group-substituted carboxyl group has a high contrast of alkaline dissolution rate before and after exposure and forms a pattern of good profile at a high resolution, minimal roughness and wide focus margin.

  一种化学放大型光刻胶组合物，包括基础聚合物、酸发生剂和胺淬灭剂，后者为β-丙氨酸、γ-氨基丁酸或5-氨基戊酸的衍生物，具有一个被酸不稳定基团所取代的羧基，这种组合物在曝光前后具有高对比度的碱性溶解速率，并且能够形成高分辨率、最小粗糙度和宽焦深度的良好图案轮廓。
• [EN] OXIME ESTER PHOTOINITIATORS<br/>[FR] PHOTOAMORCEURS À BASE D'ESTER D'OXIME
  申请人：BASF SE

  公开号：WO2015036910A1

  公开（公告）日：2015-03-19

  Disclosed are oxime ester compounds which have specific benzo (unsaturated 5-membered ring)-carbonyl group and their use as photoinitiators in photopolymerizable compositions, in particular in photoresist formulations for display applications, e.g. liquid crystal display (LCD), organic light emitting diode (OLED) and touch panel.

  披露的是具有特定苯并（不饱和五元环）-羰基基团的肟酯化合物及其作为光聚合组合物中的光引发剂的使用，特别是在显示应用的抗蚀剂配方中，例如液晶显示（LCD）、有机发光二极管（OLED）和触摸面板。
• [EN] POLYMERIZABLE COMPOSITION COMPRISING AN OXIME SULFONATE AS THERMAL CURING AGENT<br/>[FR] COMPOSITION POLYMÉRISABLE COMPRENANT UN SULFONATE D'OXIME EN TANT QU'AGENT DE DURCISSEMENT THERMIQUE
  申请人：BASF SE

  公开号：WO2012101245A1

  公开（公告）日：2012-08-02

  The present invention relates to a polymerizable composition comprising at least one ethylenically unsaturated, polymerizable compound and at least one oxime sulfonate compound of the formula (I) QAaBbCc where a is 0, 1, 2, 3, 4 or 6, b is 0, 1, 2, 3, 4 or 6, and c is 0, 1, 2, 3, 4 or 6, where the sum of a + b + c is 1, 2, 3, 4 or 6 where (A) is a group (B) is a group (C) is a group where # denotes the point of attachment to Q; X is S or NR14 and Q, R1, R2, R3 and R14 are as defined in claim 1 and in the description. The present invention also relates to the use of the this composition, to novel oxime sulfonates and the use of the oxime sulfonates as thermal curing promoter.

  本发明涉及一种可聚合的组成，包括至少一种乙炔基不饱和的可聚合化合物和至少一种具有公式（I）QAaBbCc的亚硝基亚磺酸酯化合物，其中a为0、1、2、3、4或6，b为0、1、2、3、4或6，c为0、1、2、3、4或6，其中a+b+c的总和为1、2、3、4或6，其中（A）是一个基团，（B）是一个基团，（C）是一个基团，其中#表示与Q连接的点；X是S或NR14，Q、R1、R2、R3和R14如权利要求1和说明书中所定义。本发明还涉及使用这种组成物，新型亚硝基亚磺酸酯及其作为热固化促进剂的应用。

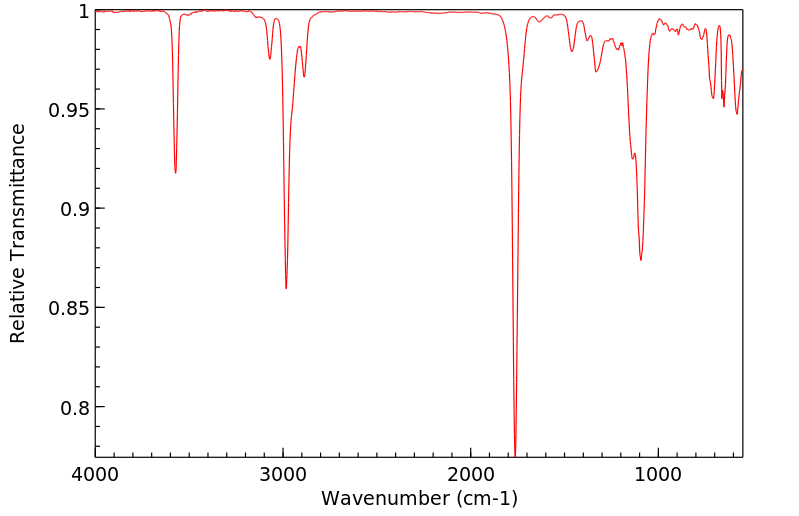

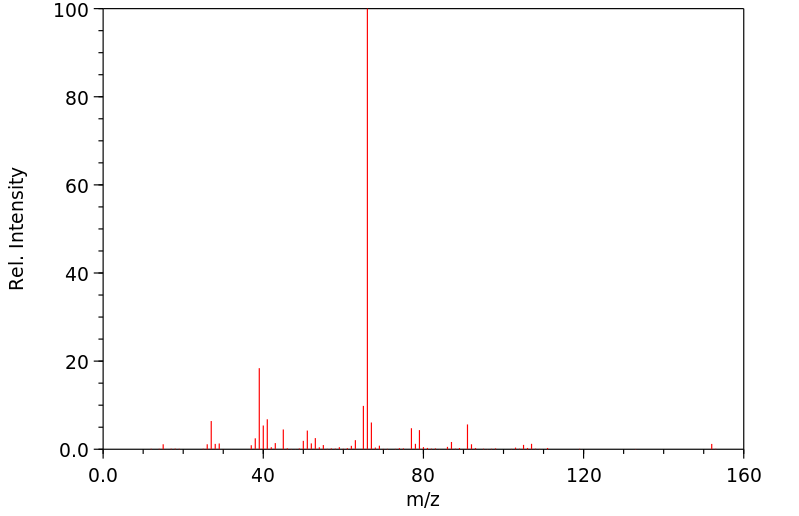

表征谱图
