4-十二基-4-氰基联苯 | 57125-49-2

• 物质功能分类: 化学试剂 - 有机试剂 - 多环化合物
• 分子结构分类: 有机化合物 - 苯类化合物 - 苯和取代衍生物
• 中文名称: 4-十二基-4-氰基联苯
• 英文名称: 4-Cyano-4'-dodecylbiphenyl
• 英文别名: 4-(4-dodecylphenyl)benzonitrile
• CAS: 57125-49-2
• 化学式: C₂₅H₃₃N
• 分子量: 347.5
• InChiKey: YTXPODSLSFRTBJ-UHFFFAOYSA-N

物化性质

• 熔点：
  48°C(lit.)
• 沸点：
  484.4±34.0 °C(Predicted)
• 密度：
  0.97±0.1 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  9.5
• 重原子数：
  26
• 可旋转键数：
  12
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.48
• 拓扑面积：
  23.8
• 氢给体数：
  0
• 氢受体数：
  1

安全信息

• 海关编码：
  2926909090

文献信息

• Liquid crystal compound and liquid crystal composition including the same
  申请人：HITACHI, LTD.

  公开号：EP0162437A2

  公开（公告）日：1985-11-27

  A liquid crystal compound of the formula: wherein R2 is preferably C7-14 alkyl; X1 is -COO- or -OCO; Y1 is Y2 is ; and Z is -N02 or -CN, shows a smectic phase, is large in positive dielectric anisotropy and can give a liquid crystal composition (5) suitable for use in a thermal address display device.

  式中 R2 最好是 C7-14 烷基；X1 是-COO-或-OCO；Y1 是 Y2 是；Z 是-N02 或-CN 的液晶化合物，显示出胶粘相，正电各向异性大，可以得到适用于热敏地址显示装置的液晶组合物（5）。
• LIQUID CRYSTAL COMPOSITION
  申请人：Chisso Corporation

  公开号：EP0345357A1

  公开（公告）日：1989-12-13

  A liquid crystal compostion for use in a thermal writing liquid crystal display utilizing a thermo-optical effect, and a liquid crystal display element using same are disclosed. The liquid crystal composition has an extremely narrow nematic range and a phase transition of a low melting point, and is used for a liquid crystal display element The liquid crystal composition contains at least two components, i.e., component A comprising at least one 4-n-alkyl-4'-cyanobiphenyl represented by general formula (I) wherein R' represents an alkyl group having 8, 9. 10.11.12 carbon atoms) and component B comprising at least one 4-n-alkoxycarbonyloxy-4'-cyanobiphenyl represented by general formula (II) wherein R2 represents an alkyl group having 8. 9. 10. 11 or 12 carbon atoms), in a ratio of component A to component B of 25:75 to 95:5. Since the composition may have a nematic range of 2°C or below, it enables rapid writing on a display element and improves the contrast of a projected image. thus markedly improving display quality Additionally, it is advantageously used for a thermal writing liquid crystal display to be used at room temperature since it has a melting point of 0 C or below

  本发明公开了一种用于利用热光学效应的热写入液晶显示器的液晶组合物，以及使用该液晶组合物的液晶显示元件。该液晶组合物具有极窄的向列范围和低熔点相变，可用于液晶显示元件。该液晶组合物至少包含两种成分，即包含至少一个由通式（I）代表的 4-正烷基-4'-氰基联苯（其中 R'代表具有 8、9、10.11.12 个碳原子的烷基）的成分 A 和包含至少一个由通式（I）代表的 4-正烷基-4'-氰基联苯（其中 R'代表具有 8、9、10.11.12 个碳原子的烷基）的成分 B。10.11.12 个碳原子的烷基）和由至少一种 4-正烷氧基羰基氧基-4'-氰基联苯组成的组分 B（由通式（II）代表，其中 R2 代表具有 8、9.10.11或12个碳原子的烷基），组分A与组分B的比例为25:75至95:5。此外，由于该组合物的熔点为 0℃或以下，因此可在室温下用于热写液晶显示器。
• Thin-film fabrication method and apparatus
  申请人：Agency of Industrial Science and Technology of Ministry of International Trade and Industry

  公开号：EP0854024A2

  公开（公告）日：1998-07-22

  A thin-film fabrication method includes a spray step in which at least one thin-film composition material in liquid form is sprayed into a vacuum vessel via a spray nozzle provided for each thin-film composition material and deposited on a substrate, and a heat treatment step in which the material deposited on the substrate is heat treated. The substrate temperature in the spray step and/or the heat treatment step is controlled within a prescribed temperature range.

  一种薄膜制造方法包括喷雾步骤和热处理步骤，在喷雾步骤中，至少一种液态薄膜组合材料通过为每种薄膜组合材料提供的喷嘴喷入真空容器并沉积在基底上，在热处理步骤中，沉积在基底上的材料经过热处理。喷涂步骤和/或热处理步骤中的基底温度控制在规定的温度范围内。
• ANTI-FLAKING AGENT AND LUBRICANT COMPOSITION COMPRISING THE SAME
  申请人：Kyodo Yushi Co., Ltd.

  公开号：EP3666860A1

  公开（公告）日：2020-06-17

  The present invention provides an anti-flaking agent comprising at least one selected from the group consisting of (A) a compound having a specific volume resistivity of 1.0 × 1010 Ω·cm or less, and (B) a compound in which a percentage of the number of carbon atoms having an aromatic ring structure is 40% or more among all carbon atoms constituting a molecule, each in an amount exceeding 0.1% by mass based on a total mass of the anti-flaking agent. The present invention also provides a lubricant composition containing the anti-flaking agent.

  本发明提供了一种抗剥落剂，它包含至少一种选自以下组别的化合物：(A) 比体积电阻率为 1.0 × 1010 Ω-cm 或更小的化合物；(B) 具有芳香环结构的碳原子数占构成分子的所有碳原子数的百分比为 40% 或更高的化合物，每种化合物的用量均超过抗剥落剂总质量的 0.1%（以质量计）。本发明还提供了一种含有抗剥落剂的润滑剂组合物。
• OLIGOSILOXANE MODIFIED LIQUID CRYSTAL FORMULATIONS AND DEVICES USING SAME
  申请人：Dow Corning Corporation

  公开号：EP2217680B1

  公开（公告）日：2011-11-30

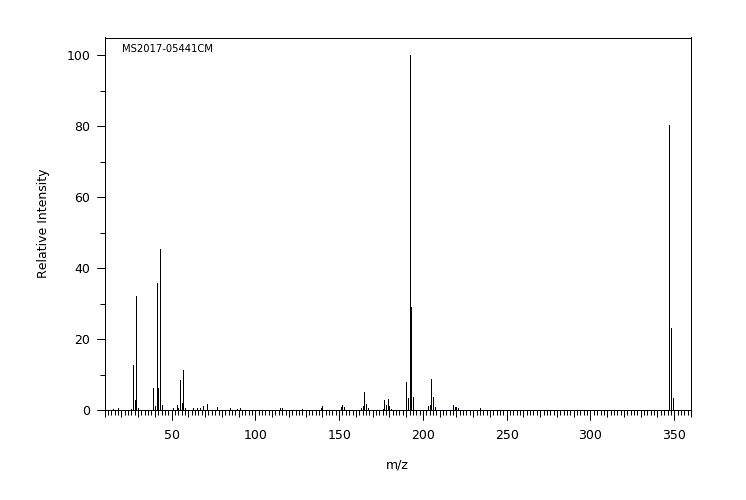

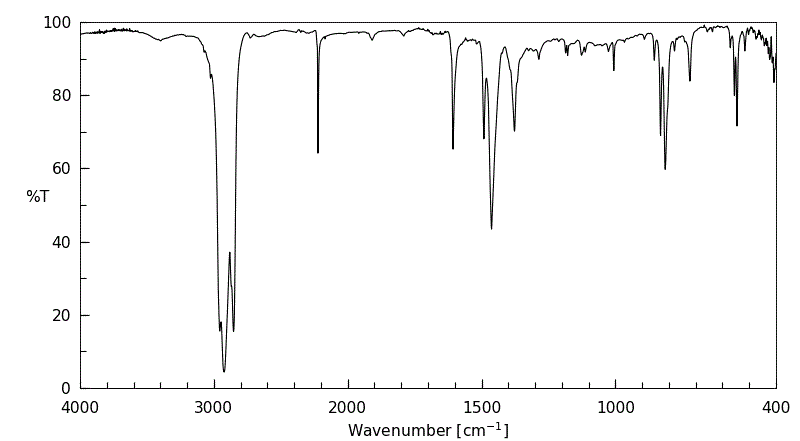

表征谱图
