5-溴-1-硝基-萘 | 5328-76-7

• 物质功能分类: 化学试剂 - 有机试剂 - 多环化合物
• 分子结构分类: 有机化合物 - 苯类化合物 - 萘
• 中文名称: 5-溴-1-硝基-萘
• 中文别名: 5-溴-1-硝基萘；1-溴-5-硝基萘
• 英文名称: 1-bromo-5-nitronaphthalene
• 英文别名: 5-bromo-1-nitronaphthalene
• CAS: 5328-76-7
• 化学式: C₁₀H₆BrNO₂
• 分子量: 252.067
• InChiKey: OTYRDQXZRJZHOX-UHFFFAOYSA-N

物化性质

• 熔点：
  121 °C
• 沸点：
  363.8±17.0 °C(Predicted)
• 密度：
  1.662±0.06 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  3.4
• 重原子数：
  14
• 可旋转键数：
  0
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  45.8
• 氢给体数：
  0
• 氢受体数：
  2

安全信息

• 海关编码：
  2904909090
• 危险性防范说明：
  P261,P305+P351+P338
• 危险性描述：
  H302,H315,H319,H335
• 储存条件：
  室温且干燥密封保存。

SDS

Material Safety Data Sheet

---

Section 1. Identification of the substance
Product Name: 1-Bromo-5-nitronaphthalene
Synonyms:

---

Section 2. Hazards identification
Harmful by inhalation, in contact with skin, and if swallowed.

---

Section 3. Composition/information on ingredients.
Ingredient name: 1-Bromo-5-nitronaphthalene
CAS number: 5328-76-7

---

Section 4. First aid measures
Skin contact: Immediately wash skin with copious amounts of water for at least 15 minutes while removing
contaminated clothing and shoes. If irritation persists, seek medical attention.
Eye contact: Immediately wash skin with copious amounts of water for at least 15 minutes. Assure adequate
flushing of the eyes by separating the eyelids with fingers. If irritation persists, seek medical
attention.
Inhalation: Remove to fresh air. In severe cases or if symptoms persist, seek medical attention.
Ingestion: Wash out mouth with copious amounts of water for at least 15 minutes. Seek medical attention.

---

Section 5. Fire fighting measures
In the event of a fire involving this material, alone or in combination with other materials, use dry
powder or carbon dioxide extinguishers. Protective clothing and self-contained breathing apparatus
should be worn.

---

Section 6. Accidental release measures
Personal precautions: Wear suitable personal protective equipment which performs satisfactorily and meets local/state/national
standards.
Respiratory precaution: Wear approved mask/respirator
Hand precaution: Wear suitable gloves/gauntlets
Skin protection: Wear suitable protective clothing
Eye protection: Wear suitable eye protection
Methods for cleaning up: Mix with sand or similar inert absorbent material, sweep up and keep in a tightly closed container
for disposal. See section 12.
Environmental precautions: Do not allow material to enter drains or water courses.

---

Section 7. Handling and storage
Handling: This product should be handled only by, or under the close supervision of, those properly qualified
in the handling and use of potentially hazardous chemicals, who should take into account the fire,
health and chemical hazard data given on this sheet.
Store in closed vessels.
Storage:

---

Section 8. Exposure Controls / Personal protection
Engineering Controls: Use only in a chemical fume hood.
Personal protective equipment: Wear laboratory clothing, chemical-resistant gloves and safety goggles.
General hydiene measures: Wash thoroughly after handling. Wash contaminated clothing before reuse.

---

Section 9. Physical and chemical properties
Appearance: Not specified
Boiling point: No data
No data
Melting point:
Flash point: No data
Density: No data
Molecular formula: C10H6BrNO2
Molecular weight: 252.1

---

Section 10. Stability and reactivity
Conditions to avoid: Heat, flames and sparks.
Materials to avoid: Oxidizing agents.
Possible hazardous combustion products: Carbon monoxide, nitrogen oxides, hydrogen bromide.

---

Section 11. Toxicological information
No data.

---

Section 12. Ecological information
No data.

---

Section 13. Disposal consideration
Arrange disposal as special waste, by licensed disposal company, in consultation with local waste
disposal authority, in accordance with national and regional regulations.

---

Section 14. Transportation information
Non-harzardous for air and ground transportation.

---

Section 15. Regulatory information
No chemicals in this material are subject to the reporting requirements of SARA Title III, Section
302, or have known CAS numbers that exceed the threshold reporting levels established by SARA
Title III, Section 313.

---

SECTION 16 - ADDITIONAL INFORMATION
N/A

反应信息

• 作为反应物：
  描述：

  5-溴-1-硝基-萘 在 盐酸 、 硝酸 、 tin(ll) chloride 作用下， 生成 1,8-二氨基萘
  参考文献：
  名称：

  Ullmann; Consonno, Chemische Berichte, 1902, vol. 35, p. 2810

  摘要：

  DOI：
• 作为产物：
  描述：

  硝基萘 在 溴 、 铁粉 作用下， 反应 0.5h， 以41%的产率得到5-溴-1-硝基-萘
  参考文献：
  名称：

  使用 K4[Fe(CN)6] 作为氰化物源直接氰化吡啶甲酰胺

  摘要：

  以无毒的K4[Fe(CN)6]为氰化物源，通过Pd催化的C-H键活化，开发了一种高效、简单、环保的吡啶甲酰胺直接氰化路线。

  DOI：

  10.1246/cl.150111

文献信息

• The Substituent Effect. XI. Solvolysis of 5-, 6-, and 7-Substituted 1-(1-Naphthylethyl) Chlorides
  作者：Yuho Tsuno、Masami Sawada、Takahiro Fujii、Yoshihiko Tairaka、Yasuhide Yukawa

  DOI：10.1246/bcsj.48.3356

  日期：1975.11

  Fourteen 5-, 6-, and 7-substituted 1-(1-naphthylethyl) chlorides were prepared and the solvolysis rates were determined in 80% (v/v) aqueous acetone at 45 °C. The effects of −R substituents at respective positions were treated on the basis of the equation, logk⁄k0=ρiσi+ρx+σx+=ρ(Cijσi+qrij+σπ+). The position dependency of the inductive effect was given by Cij(=ρi⁄ρi,4α); C3α=1.37, C4α=1.00, C5α=0.75, C6α=0.57, and C7α=0.72. The Cij values appear to be correlated with Dewar’s simplified field function 1/rij. The position dependency of Pi-electronic effect given by the ratio ρπ+⁄ρi,4α=qr·ij+ was consistent with the prediction from the MO indices, such as Forsyth’s Δqij(ArCH2+ parameters. The same treatment was applied also to three other naphthalene reactivities, detritiation, pKa of α-naphthoic acids and pKa of naphthylammonium ions. The linear ρi–ρi relation holds among these reactions, suggesting a reaction-independent scheme of the inductive transmission. The qr·ij+ values vary at conjugate positions with reaction but not at non-conjugate positions irrespective of reactions. The results are discussed in comparison with those of relevant treatments.

  制备了十四个5-、6-和7-取代的1-(1-萘乙基)氯化物，并在45°C下，80%（体积/体积）的乙酸水溶液中测定了其溶剂分解速率。基于方程logk⁄k0=ρiσi+ρx+σx+=ρ(Cijσi+qrij+σπ+)，处理了在相应位置上的−R取代基的影响。诱导效应的位置依赖性由Cij(=ρi⁄ρi,4α)给出；C3α=1.37，C4α=1.00，C5α=0.75，C6α=0.57，C7α=0.72。Cij值似乎与Dewar的简化场函数1/rij相关。由比率ρπ+⁄ρi,4α=qr·ij+给出的π电子效应的位置依赖性与从MO指数（如Forsyth的Δqij(ArCH2+参数）的预测一致。同样的处理也应用于其他三种萘的反应性：脱氢、α-萘甲酸的pKa和萘甲基铵离子的pKa。在这些反应中，线性ρi–ρi关系成立，表明诱导传递的反应独立方案。qr·ij+值在共轭位置随反应变化，但在非共轭位置不随反应变化。结果在与相关处理的比较中进行了讨论。
• NOVEL DYES WITH PHOSPHINIC ACID, PHOSPHINATE, PHOSPHONATE AND PHOSPHONAMIDATE SUBSTITUENTS AS AUXOCHROMIC GROUPS AND METHODS FOR PREPARING THE SAME
  申请人：Max-Planck-Gesellschaft zur Foerderung der Wissenschaften e. V.

  公开号：US20180223102A1

  公开（公告）日：2018-08-09

  Compounds of formula I are disclosed: wherein X 1 , X 2 , X 3 , X 4 are independently H, F, Cl, Br, I, CN, NO 2 , OR 1 , SR 1 , NR 1 R 2 , COR 1 , COOR 1 , CONR 1 R 2 , PO 3 R 1 R 2 , SO 2 R 1 , SO 3 R 1 or R 3 ; R 1 and R 2 are, e.g., H, alkyl or aryl or optionally a ring; R 3 is, e.g., alkyl, alkenyl, alkynyl, aryl or cycloalkyl; Y is OR 1 , NR 1 R 2 , or NR 1 R 3 ; Q is O, S, SO 2 , NR, C(R 3 ) 2 , Si(R 3 ) 2 , Ge(R 3 ) 2 , P(═O)R 3 or P(═O)OR 3 ; Q and X 1 can optionally form part of a ring; L and M are independently OR 1 , SR 1 , NR 1 R 2 and R 3 ; L and M can optionally form part of a ring; Z is O, S, NR 1 , CR 1 R 3 or aryl; and Z and X 4 can optionally form part of a ring.

  式I的化合物已被披露： 其中X1、X2、X3、X4独立地为H、F、Cl、Br、I、CN、NO2、OR1、SR1、NR1R2、COR1、COOR1、CONR1R2、PO3R1R2、SO2R1、SO3R1或R3；R1和R2为H、烷基或芳基或可选地为环；R3为烷基、烯基、炔基、芳基或环烷基；Y为OR1、NR1R2或NR1R3；Q为O、S、SO2、NR、C(R3)2、Si(R3)2、Ge(R3)2、P(═O)R3或P(═O)OR3；Q和X1可选择地形成环的一部分；L和M独立地为OR1、SR1、NR1R2和R3；L和M可选择地形成环的一部分；Z为O、S、NR1、CR1R3或芳基；Z和X4可选择地形成环的一部分。
• 유기발광 화합물 및 이를 포함하는 유기전계발광소자
  申请人：Samsung Display Co., Ltd. 삼성디스플레이 주식회사(120120164552) Corp. No ▼ 134511-0187812

  公开号：KR20150043571A

  公开（公告）日：2015-04-23

  본 발명은 하기 [화학식 1-1] 내지 [화학식 1-2]로 표시되는 유기발광 화합물에 관한 것으로서, 이를 채용한 유기전계발광소자느 발광 효율이 우수하면서도 동시에 저전압 구동이 가능하여 향상된 전력효율과 장수명 특성을 갖는다. [화학식 1-1] [화학식 1-2]

  本发明涉及如下式[化学式1-1]至[化学式1-2]所示的有机发光化合物，采用该化合物的有机电致发光器件具有优异的发光效率，同时还能实现低电压驱动，从而具有改善的功率效率和长寿命特性。[化学式1-1] [化学式1-2]
• Divergent Reactivity of α,α-Disubstituted Alkenyl Hydrazones: Bench Stable Cyclopropylcarbinyl Equivalents
  作者：Nina F. C. Ritchie、Adam J. Zahara、Sidney M. Wilkerson-Hill

  DOI：10.1021/jacs.1c12881

  日期：2022.2.9

  N-tosylhydrazones using Pd-catalyzed cross-coupling conditions, which enable the Z-selective synthesis of 3-aryl-1,4-dienes and gem-dialkyl vinylcyclopropanes. We found that the dialkylbiaryl phosphine ligand SPhos was the optimal ligand for this transformation producing skipped dienes in up to 83% isolated yield. The ratio of skipped diene to vinylcyclopropane is dependent on both the structure of the α,α-disubstituted

  在这里，我们报告了使用 Pd 催化的交叉偶联条件的 2,2-二烷基-3-( E )-烯基N-甲苯磺酰腙的不同反应性，这使得Z选择性合成 3-aryl-1,4-二烯和偕二烷基乙烯基环丙烷。我们发现二烷基联芳基膦配体 SPhos 是这种转化产生跳跃二烯的最佳配体，分离产率高达 83%。跳过的二烯与乙烯基环丙烷的比例取决于 α,α-二取代腙和芳基卤化物配对物的结构。使用空间位阻芳基溴提供反式-环丙烷产品选择性地高达 69% 的产率。该反应具有立体特异性和立体选择性，并与竞争的 1,2-烯基迁移途径一起发生。
• [EN] THIENO[3,2-d]PYRIMIDINE DERIVATIVES HAVING INHIBITORY ACTIVITY FOR PROTEIN KINASES<br/>[FR] DÉRIVÉS THIÉNO[3,2-D]PYRIMIDINES AYANT UNE ACTIVITÉ INHIBITRICE POUR DES PROTÉINES KINASES
  申请人：HANMI PHARM IND CO LTD

  公开号：WO2013100632A1

  公开（公告）日：2013-07-04

  Provided are a thieno[3,2-d]pyrimidine derivative of formula (I) or a pharmaceutically acceptable salt thereof having inhibitory activity for protein kinase, and a pharmaceutical composition comprising same for prevention and treatment of abnormal cell growth diseases.

  提供一种具有蛋白激酶抑制活性的噻吩[3,2-d]嘧啶衍生物（化学式（I））或其药用可接受的盐，以及包含该衍生物的药物组合物，用于预防和治疗异常细胞生长疾病。

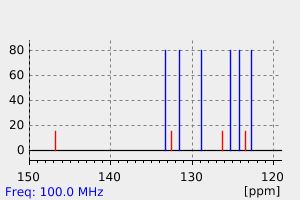

表征谱图
