1,3,5,7-四氯萘 | 53555-64-9

• 分子结构分类: 有机化合物 - 苯类化合物 - 萘
• 中文名称: 1,3,5,7-四氯萘
• 英文名称: 1,3,5,7-tetrachloronaphthalene
• 英文别名: PCN 42；PCN-42；1,3,5,7-tetrachloro-naphthalene；1,3,5,7-Tetrachlor-naphthalin；1,3,5,7-Tetrachlornaphthalin
• CAS: 53555-64-9
• 化学式: C₁₀H₄Cl₄
• 分子量: 265.954
• InChiKey: OTTCXKPQKOLSJN-UHFFFAOYSA-N

物化性质

• 熔点：
  180 °C
• 沸点：
  331.8±37.0 °C(Predicted)
• 密度：
  1.552±0.06 g/cm3(Predicted)
• 溶解度：
  1.50e-08 M
• 保留指数：
  1906.9

计算性质

• 辛醇/水分配系数(LogP)：
  6.2
• 重原子数：
  14
• 可旋转键数：
  0
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  0
• 氢给体数：
  0
• 氢受体数：
  0

安全信息

• 海关编码：
  2903999090

反应信息

• 作为产物：
  描述：

  2,6-二硝基萘 在 盐酸 、 乙醇 、 磷酸 、 硫酸 、 硝酸 、 tin(ll) chloride 作用下， 生成 1,3,5,7-四氯萘
  参考文献：
  名称：

  11. 1：3：5：7-四硝基萘和由2：6-二硝基萘硝化制得的异构四硝基衍生物

  摘要：

  DOI：

  10.1039/jr9430000033

文献信息

• Emission Factors and Importance of PCDD/Fs, PCBs, PCNs, PAHs and PM₁₀ from the Domestic Burning of Coal and Wood in the U.K.
  作者：Robert G. M. Lee、Peter Coleman、Joanne L. Jones、Kevin C. Jones、Rainer Lohmann

  DOI：10.1021/es048745i

  日期：2005.3.1

  fuels. However, their combined emissions from the domestic burning of coal and wood would contribute only a few percent to annual U.K. emission estimates. Emissions of PAHs and PM10 were major contributors to U.K. national emission inventories. Major emissions were found from the domestic burning for Cl1,2,3DFs, while the contribution of PCDD/F-sigmaTEQ to total U.K. emissions was minor.

  本文介绍了当煤和木材经过受控燃烧实验时针对一系列持久性有机污染物（POPs）得出的排放因子（EFs），旨在模拟空间供暖的家庭燃烧。排放了各种各样的持久性有机污染物，煤炭的排放量高于木材的排放量。对于颗粒物，PM10（大约10 g / kg燃料）和多环芳烃（对于sigmaPAHs大约100 mg / kg燃料）获得了最高的EF。对于氯化物，多氯联苯（PCB）的EF最高，而多氯萘（PCN），二苯并-对-二恶英（PCDD）和二苯并呋喃（PCDF）的丰度较低。对于sigmaPCB，EF大约为1000 ng / kg燃料，对于sigmaPCNs大约为100s ng / kg燃料，对于sigmaPCDD / Fs大约为100 ng / kg燃料。该研究证实，一氯化至三氯化二苯并呋喃Cl1,2,3DFs是低温燃烧过程（如煤炭和木材的国内燃烧）的有力指标。结论是，在固体燃料燃烧期间通常形成许多PCB和PC
• NAPHTHOBISCHALCOGENADIAZOLE DERIVATIVE AND PRODUCTION METHOD THEREFOR
  申请人：OSAKA UNIVERSITY

  公开号：US20190337966A1

  公开（公告）日：2019-11-07

  In order to provide a naphthobischalcogenadiazole derivative that can be used as an intermediate for producing a naphthobischalcogenadiazole compound into which a fluorine atom has been introduced, the naphthobischalcogenadiazole derivative in accordance with an aspect of the present invention is represented by a formula (I): where each of A 1 and A 2 is independently an oxygen atom, a sulfur atom, a selenium atom, or a tellurium atom; and each of X 1 and X 2 is independently a hydrogen atom, a halogen atom, a boronic acid group, a boronic acid ester group, a boronic acid diaminonaphthalene amide group, an N-methyliminodiacetic acid boronate group, a trifluoroborate salt group, or a triolborate salt group.

  为了提供一种可用作生产引入氟原子的萘基双硫/硒/碲-二唑化合物的中间体的萘基双硫/硒/碲-二唑衍生物，本发明的一个方面提供的萘基双硫/硒/碲-二唑衍生物由式(I)表示：其中，A1和A2分别独立地为氧原子、硫原子、硒原子或碲原子；X1和X2分别独立地为氢原子、卤素原子、硼酸基、硼酸酯基、硼酸二氨基萘酰胺基、N-甲基亚乙二酸硼酸酯基、三氟硼酸盐基或三羟基硼酸盐基。
• Preparation of poly (arylene sulfide)
  申请人：Tosoh Corporation

  公开号：EP0304303A2

  公开（公告）日：1989-02-22

  In a process in which a poly (arylene sulfide) is synthesized by reacting a dihaloaromatic compound and an alkali metal sulfide in a polar organic solvent, the curing ability of the product polymer may be significantly enhanced by introducing a small proportion of a hydroxyl group-­containing polyhaloaromatic compound to the reaction mixture when a conversion of at least 60% has been achieved with respect to the dihaloaromatic compound present in the reac­tion mixture. The product polymer may be advantageously employed in various molding, forming or coating processes to provide the produced articles with increased strengths. The hydroxyl groups introduced into the polymer enable the polymer to be modified, if desired.

  在通过二卤代芳香族化合物和碱金属硫化物在极性有机溶剂中反应合成聚（芳基硫 化物）的工艺中，当反应混合物中的二卤代芳香族化合物的转化率至少达到 60% 时，向反应混合物中引入少量含羟基的聚卤代芳香族化合物，可显著提高产品聚合物的固化能力。在各种模塑、成型或涂覆工艺中使用该聚合物产品可提高产品的强度。如果需要，引入聚合物中的羟基还可以对聚合物进行改性。
• Process for production of polyarylene sulfides
  申请人：Tosoh Corporation

  公开号：EP0480685A2

  公开（公告）日：1992-04-15

  In a process for preparing a polyarylene sulfide by reacting an alkali metal sulfide and at least one dihaloaromatic compound in an organic amide solvent at an elevated temperature: a highly pure anhydrous alkali metal sulfide reactant having a purity of at least 95% by weight and a content of alkali metal hydrosulfide impurity of not greater than 2% by weight is employed. The water is deliberately added in a proportion of 0.1 to 0.8 moles per each mole of the alkali metal sulfide used in the process. The alkali metal sulfide reactant is charged in a concentration of 2.5 to 5 moles per liter of the reaction mixture. The deliberate addition of water enables one to omit a dehydration stage which has been desirably or rather necessarily effected to obtain a satisfactory polymer product where a hydrous alkali metal sulfide reactant is employed. The improved process of the invention provides a highly pure polyarylene sulfide product having a relatively increased molecular weight and a decreased content of by-product oligomers.

  在一种通过在高温下使碱金属硫化物和至少一种二卤代芳香族化合物在有机酰胺溶剂中发生反应来制备聚芳基硫醚的工艺中：采用高纯度无水碱金属硫化物反应物，其纯度至少为 95%（按重量计），碱金属硫氢化物杂质含量不超过 2%（按重量计）。特意加入的水的比例为每摩尔碱金属硫化物 0.1 至 0.8 摩尔。碱金属硫化物反应物的加入浓度为每升反应混合物 2.5 至 5 摩尔。故意加水可以省略脱水阶段，而在使用含水硫化碱金属反应物时，为了获得令人满意的聚合物产品，脱水阶段是必不可少的。本发明的改进工艺提供了一种高纯度的聚芳硫醚产品，其分子量相对增加，副产物低聚物的含量减少。
• Naphthobischalcogenadiazole derivative and production method therefor
  申请人：OSAKA UNIVERSITY

  公开号：US10793584B2

  公开（公告）日：2020-10-06

  In order to provide a naphthobischalcogenadiazole derivative that can be used as an intermediate for producing a naphthobischalcogenadiazole compound into which a fluorine atom has been introduced, the naphthobischalcogenadiazole derivative in accordance with an aspect of the present invention is represented by a formula (I): where each of A1 and A2 is independently an oxygen atom, a sulfur atom, a selenium atom, or a tellurium atom; and each of X1 and X2 is independently a hydrogen atom, a halogen atom, a boronic acid group, a boronic acid ester group, a boronic acid diaminonaphthalene amide group, an N-methyliminodiacetic acid boronate group, a trifluoroborate salt group, or a triolborate salt group.

  为了提供一种萘二异噻二唑衍生物，该衍生物可用作生产引入了氟原子的萘二 异噻二唑化合物的中间体，根据本发明的一个方面，萘二异噻二唑衍生物由式 (I) 表示： 其中，A1 和 A2 各自独立地为氧原子、硫原子、硒原子或碲原子；X1 和 X2 各自独立地为氢原子、卤素原子、硼酸基团、硼酸酯基团、硼酸二氨基萘酰胺基团、N-甲基二乙酸硼酸盐基团、三氟硼酸盐基团或三硼酸盐基团。

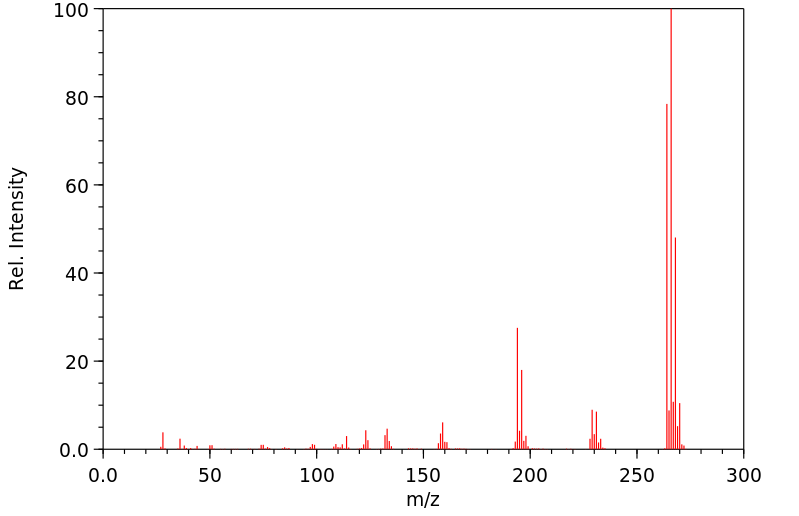

表征谱图
