2-(3,4-亚甲基二氧基苯基)-4,6-双(三氯甲基)-1,3,5-三嗪 | 71255-78-2

• 分子结构分类: 有机化合物 - 有机杂环化合物 - 苯并间二氧杂环戊烯类
• 中文名称: 2-(3,4-亚甲基二氧基苯基)-4,6-双(三氯甲基)-1,3,5-三嗪
• 中文别名: 2-(1,3-苯并二氧杂环戊-5-基)-4,6-双(三氯甲基)-1,3,5-三嗪；2-(3,4-亚甲二氧苯基)-4,6-双(三氯甲基)-1,3,5-三嗪；2-(1,3-苯并二氧戊环-5-基)-4,6-双(三氯甲基)-1,3,5-三嗪
• 英文名称: 2-(benzo[d][1,3]dioxolane-5-yl)-4,6-bis(trichloromethyl)-1,3,5-triazine
• 英文别名: 2-(3,4-methylenedioxyphenyl)-4,6-bis(trichloromethyl)-1,3,5-triazine；2,6-bis(trichloromethyl)-4-(3,4-methylenedioxyphenyl)-1,3,5-triazine；2-benzo(1,3)dioxol-5-yl-4,6-bis-trichloromethyl-(1,3,5)triazine；2-(1,3-Benzodioxol-5-yl)-4,6-bis(trichloromethyl)-1,3,5-triazine
• CAS: 71255-78-2
• 化学式: C₁₂H₅Cl₆N₃O₂
• 分子量: 435.909
• InChiKey: BFQFFNWLTHFJOZ-UHFFFAOYSA-N

物化性质

• 熔点：
  133.0 to 137.0 °C
• 沸点：
  483.1±55.0 °C(Predicted)
• 密度：
  1.756±0.06 g/cm3(Predicted)
• 稳定性/保质期：
  远离氧化物、光、热和高温。

计算性质

• 辛醇/水分配系数(LogP)：
  5
• 重原子数：
  23
• 可旋转键数：
  1
• 环数：
  3.0
• sp3杂化的碳原子比例：
  0.25
• 拓扑面积：
  57.1
• 氢给体数：
  0
• 氢受体数：
  5

文献信息

• COMPOUND OR ITS TAUTOMER, METAL COMPLEX COMPOUND, COLORED PHOTOSENSITIVE CURING COMPOSITION, COLOR FILTER, AND PRODUCTION
  申请人：MIZUKAWA Yuki

  公开号：US20120238752A1

  公开（公告）日：2012-09-20

  Provided is a colored photosensitive curing composition useful for color filters in primary colors, including blue, green, and red, having a high molar absorption coefficient and allowing a reduction in film thickness and superior color purity and fastness. A colored photosensitive curing composition, comprising, as its colorant, a dipyrromethene-based metal complex compound obtained from a metal or metal compound and a dipyrromethene-based compound represented by the following Formula (I): wherein in Formula (I), R 1 to R 6 each independently represent a hydrogen atom or a substituent group; and R 7 represents a hydrogen or halogen atom, or an alkyl, aryl or heterocyclic group.

  提供的是一种有用于原色彩色滤光片的彩色光敏固化组合物，包括蓝色、绿色和红色，具有高摩尔吸收系数，可减少薄膜厚度，具有优越的颜色纯度和牢固度。 一种彩色光敏固化组合物，包括作为其着色剂的从金属或金属化合物获得的基于二吡咯甲烷的金属配合物化合物和由以下式（I）表示的基于二吡咯甲烷的化合物，其中在式（I）中，R1至R6各自独立地表示氢原子或取代基；R7表示氢或卤素原子，或烷基、芳基或杂环基。
• COMPOSITION CONTAINING VINYL-GROUP-CONTAINING COMPOUND
  申请人：TOKYO OHKA KOGYO CO., LTD.

  公开号：US20160046552A1

  公开（公告）日：2016-02-18

  A composition containing a novel vinyl-group-containing compound. This composition contains a vinyl-group-containing compound represented by general formula (1). In the formula: W 1 and W 2 represent a group represented by general formula (2) (where a ring (Z) is an aromatic hydrocarbon ring, X is a single bond or —S—, R 1 is a single bond or a C1-4 alkylene group, R 2 is a specific substituent group such as a monovalent hydrocarbon, and m is an integer equal to 0 or higher), a group represented by general formula (4) (where the ring (Z), X, R 1 , R 2 , and m are as previously stated), a hydroxyl group, or a (meth)acryloyloxy group; rings (Y 1 , Y 2 ) are aromatic hydrocarbon rings; R represents a single bond or a specific divalent group; R 3a and R 3b represent a cyano group, a halogen atom, or a monovalent hydrocarbon group; and n1 and n2 are integers of 0-4.

  这个组合物包含一种含有新颖乙烯基团的化合物。该组合物包含一个由通式（1）表示的含有乙烯基团的化合物。在该式中：W1和W2代表由通式（2）表示的一个基团（其中环（Z）是芳香烃环，X是一个单键或—S—，R1是一个单键或C1-4烷基基团，R2是特定的取代基团，如一价碳氢化合物，m是大于或等于0的整数），一个由通式（4）表示的基团（其中环（Z）、X、R1、R2和m如前述），一个羟基，或一个（甲基）丙烯酰氧基团；环（Y1、Y2）是芳香烃环；R代表一个单键或一个特定的二价基团；R3a和R3b代表氰基、卤素原子或一价碳氢基团；n1和n2是0-4的整数。
• SILICON-CONTAINING COMPOUND, URETHANE RESIN, STRETCHABLE FILM, AND METHOD FOR FORMING THE SAME
  申请人：SHIN-ETSU CHEMICAL CO., LTD.

  公开号：US20190106528A1

  公开（公告）日：2019-04-11

  The present invention provides a silicon-containing compound shown by the following formula ( 1 ): wherein R 1 , R 2 , R 3 , R 4 , R 5 , and R 6 each independently represent a linear, branched, or cyclic alkyl group having 1 to 6 carbon atoms, a phenyl group, a 3,3,3-trifluoropropyl group, or a group shown by —(OSiR 7 R 8 ) n —OSiR 9 R 10 R 11 ; R 7 , R 8 , R 9 , R 10 , and R 11 have the same meanings as R 1 to R 6 ; X represents a linear or branched alkylene group having 3 to 7 carbon atoms optionally having an ether group; and “n” is an integer in the range of 0 to 100. This provides a stretchable film that hats excellent stretchability and strength, with the film surface having excellent repellency, and a method for forming the same; as well as a urethane resin used for the stretchable film; and a silicon-containing compound to be a material of the urethane resin.

  本发明提供了一种含硅化合物，其化学式如下（1）所示：其中R1、R2、R3、R4、R5和R6分别独立地表示具有1至6个碳原子的直链、支链或环烷基基团，苯基，3,3,3-三氟丙基基团，或者由—(OSiR7R8)n—OSiR9R10R11所示的基团；R7、R8、R9、R10和R11具有与R1至R6相同的含义；X表示具有3至7个碳原子的直链或支链烷基基团，可选地具有醚基；“n”是0至100范围内的整数。这提供了一种具有优异的延展性和强度的可拉伸薄膜，薄膜表面具有优异的防水性，以及形成该薄膜的方法；以及用于可拉伸薄膜的聚氨酯树脂；以及用于聚氨酯树脂的硅含量化合物。
• Pyridone azo compound, tautomer thereof, and colorant-containing curable composition, color filter and manufacturing method thereof
  申请人：Araki Katsumi

  公开号：US20060293405A1

  公开（公告）日：2006-12-28

  The invention provides a pyridone azo compound represented by the following Formula (I) and a tautomer thereof. R 1 , R 3 and R 4 each independently represent a hydrogen atom, an alkyl group having 1 to 21 carbon atoms, an alkenyl group having 2 to 21 carbon atoms, an aryl group having 6 to 21 carbon atoms, an aralkyl group having 7 to 21 carbon atoms, or a substituent having a hetero atom; at least one of R 1 , R 3 and R 4 represents a substituent having a hetero atom; R 3 and R 4 may be formed into a heterocycle together with a jointly bonded nitrogen atom; and R 2 represents an alkyl group having 1 to 10 carbon atoms, a methoxymethyl group, or a trifluoromethyl group. The invention further provides a colorant-containing curable composition and a color filter which contain the pyridone azo compound of Formula (I) and/or a tautomer thereof as a colorant.

  该发明提供了一种由以下式（I）表示的吡啶酮偶氮化合物及其互变异构体。其中，R1、R3和R4分别独立表示氢原子、具有1至21个碳原子的烷基基团、具有2至21个碳原子的烯基基团、具有6至21个碳原子的芳基基团、具有7至21个碳原子的芳基烷基基团或具有杂原子的取代基；R1、R3和R4中至少一个表示具有杂原子的取代基；R3和R4可以与共价键合的氮原子一起形成杂环；R2表示具有1至10个碳原子的烷基基团、甲氧基甲基基团或三氟甲基基团。该发明还提供了一种含色料的可固化组合物和一种含有式（I）中的吡啶酮偶氮化合物和/或其互变异构体作为色料的彩色滤光片。
• [EN] NOVEL UV-CURABLE PERFLUORINATED, MULTIFUNCTIONALIZED ACRYLATES MONOMERS, COPOLYACRYLATES AND THEIR SYNTHETIC METHODS FOR PHOTONIC DEVICES<br/>[FR] NOUVEAUX MONOMERES ACRYLATES, COPOLYACRYLATES MULTIFONCTIONNALISES PERFLUORES DURCISSABLES AUX UV ET LEURS PROCEDES DE SYNTHESE POUR DISPOSITIFS PHOTONIQUES
  申请人：KIM HWAN-KYU

  公开号：WO2004092105A1

  公开（公告）日：2004-10-28

  The present invention relates to monomers to develop new, UV-curable, fluorinated polyacrylate compounds for information and electronic devices. More particularly, invention relates to new, UV-curable, fluorinated acrylate monomers and polymers represented by the following formula 1 or 2, which are fluorinated at the polymeric main chain and thus show low optical transmission loss at optical communication wavelength regions of 1.3 µm and 1.5 µm and which have low birefringence and high thermal stability as a result of the fine control refractive index, as well as a method for preparing the them.

  本发明涉及单体，用于开发新的、UV固化的、氟化聚丙烯酸酯化合物，用于信息和电子设备。更具体地说，本发明涉及新的、UV固化的、氟化丙烯酸酯单体和聚合物，其由以下式1或2表示，这些单体和聚合物在聚合物主链上氟化，因此在1.3微米和1.5微米的光通信波长区域显示低光传输损耗，具有低双折射和高热稳定性，这是由于对折射率进行精细控制的结果，以及一种用于制备它们的方法。

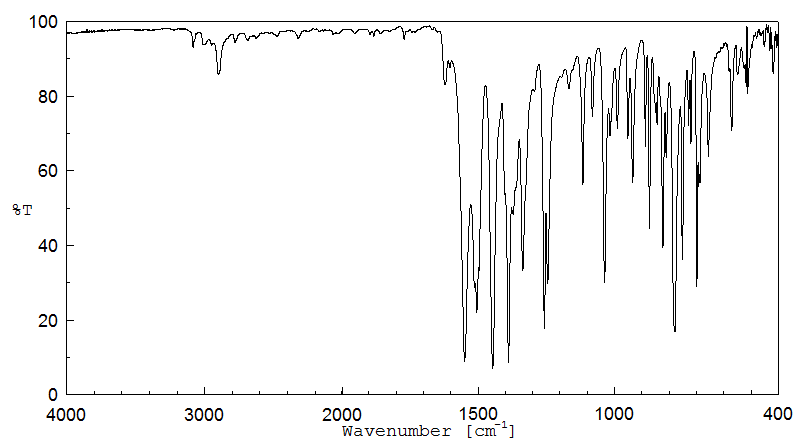

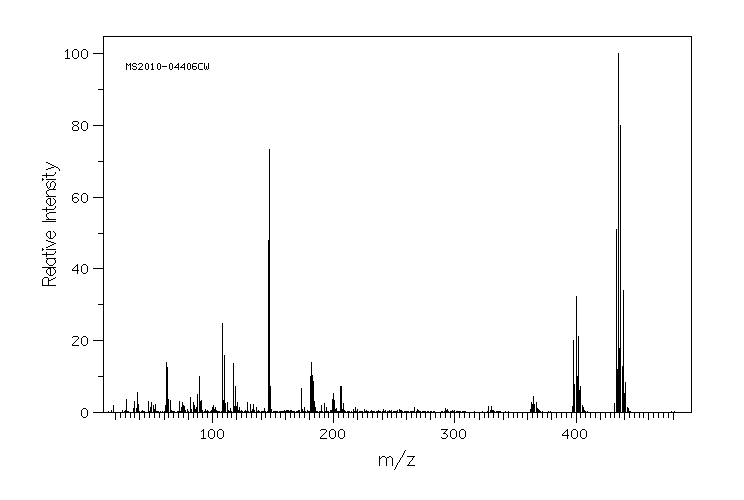

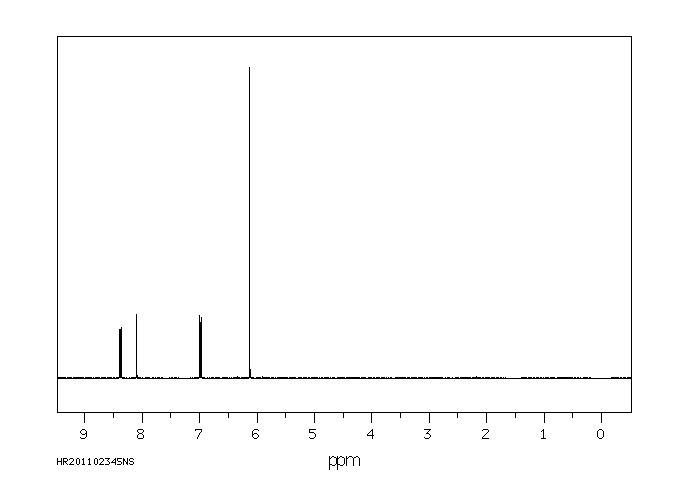

表征谱图
