m,p'-Sulfonyl dibenzoic acid

• 分子结构分类: 有机化合物 - 苯类化合物 - 苯和取代衍生物
• 英文名称: m,p'-Sulfonyl dibenzoic acid
• 英文别名: 3-(4-carboxyphenyl)sulfonylbenzoic acid
• 化学式: C₁₄H₁₀O₆S
• 分子量: 306.29
• InChiKey: PBAXDYUTIYJYOL-UHFFFAOYSA-N

计算性质

• 辛醇/水分配系数(LogP)：
  1.4
• 重原子数：
  21
• 可旋转键数：
  4
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  117
• 氢给体数：
  2
• 氢受体数：
  6

文献信息

• NOVEL COMPOUND, POLYIMIDE RESIN AND METHOD OF PRODUCING THE SAME, PHOTOSENSITIVE RESIN COMPOSITION, PATTERNING METHOD AND METHOD OF FORMING CURED FILM, INTERLAYER INSULATING FILM, SURFACE PROTECTIVE FILM, AND ELECTRONIC COMPONENT
  申请人：International Business Machines Corporation

  公开号：US20210317270A1

  公开（公告）日：2021-10-14

  Provided is a compound that can be used as a base resin for a photosensitive resin composition. The photosensitive resin can form a fine pattern and can achieve high resolution without impairing mechanical strength and solubility. The compound is represented by the general formula (1): wherein Z represents a linear, branched or cyclic divalent hydrocarbon group having 2 to 30 carbon atoms; X 1 to X 3 represent any of —CO 2 —, —CONR X1 —, —O—, —NR X1 —, —S—, —SO 2 —, —SO 3 — and —SO 2 NR X1 — and may be the same as or different from each other, provided that R X1 is a hydrogen atom or a monovalent hydrocarbon group having 1 to 30 carbon atoms; Ar represents a divalent aromatic group having 2 to 30 carbon atoms; L 1 and L 2 independently represent a divalent hydrocarbon group having 1 to 30 carbon atoms; and x and y are each independently 0 or 1.

  提供的是一种可以用作光敏树脂组合物的基树脂的化合物。这种光敏树脂可以形成精细图案，并且可以在不影响机械强度和溶解性的情况下实现高分辨率。该化合物由通式（1）表示：其中Z代表具有2到30个碳原子的线性、支链或环状二价碳氢基团；X1到X3代表任何一种—CO2—、—CONRX1—、—O—、—NRX1—、—S—、—SO2—、—SO3—和—SO2NRX1—中的一种，并且它们可以相同也可以不同，只要RX1是氢原子或具有1到30个碳原子的一价碳氢基团；Ar代表具有2到30个碳原子的二价芳香基团；L1和L2分别代表具有1到30个碳原子的二价碳氢基团；x和y分别独立地为0或1。
• Precursor of a heat resistant resin, heat resistant resin, insulating film and semiconductor device
  申请人：——

  公开号：US20020013443A1

  公开（公告）日：2002-01-31

  A precursor of a polybenzoxazole resin which comprises a crosslinking group in a molecule and has a specific structure, a polybenzoxazole resin obtained from the precursor by the condensation reaction and the crosslinking reaction, an insulating film comprising the polybenzoxazole resin and a semiconductor device comprising an insulating interlayer film in multi-layer wiring or a film for protecting surfaces which comprises the above insulating film. The precursor exhibits excellent processability due to excellent solubility in solvents and, after the ring closure, excellent heat stability in applications. The resin exhibits excellent electric, physical and mechanical properties and is advantageously used for insulating interlayer films of semiconductor devices and the like applications.

  一种聚苯并咪唑树脂的前体，其分子中包含交联基团并具有特定的结构，通过缩合反应和交联反应获得的聚苯并咪唑树脂，包括聚苯并咪唑树脂的绝缘膜以及包括上述绝缘膜的多层布线中的绝缘中间层膜或用于保护表面的膜的半导体器件。由于前体在溶剂中具有优异的溶解性，因此表现出优异的加工性能，并且在环闭后具有优异的热稳定性能，树脂表现出优异的电学、物理和机械性能，可优点地用于半导体器件的绝缘中间层膜等应用。
• Material for an insulating film, coating varnish for an insulating film, and insulating film and semiconductor device using the same
  申请人：——

  公开号：US20040002572A1

  公开（公告）日：2004-01-01

  A material for an insulating film which comprises a copolymer obtained by reacting a polyamide having a specific structure and a reactive oligomer as a component forming the film; a coating varnish for an insulating film which comprises this material and an organic solvent; an insulating film which comprises a layer of a resin comprising as a main structure a polybenzoxazole which is obtained by treating the above material or the above coating varnish by heating so that condensation reaction and crosslinking reaction take place and has fine pores; and a semiconductor device which comprises an insulating interlayer film for multi-layer wiring comprising the insulating film and/or a surface protective film comprising the insulating film. Excellent electrical, thermal and mechanical properties are exhibited and a low permittivity can be achieved.

  一种绝缘薄膜材料，包括由特定结构的聚酰胺和反应性低聚物作为成膜组分所反应得到的共聚物；一种用于绝缘薄膜的涂覆清漆，包括该材料和有机溶剂；一种绝缘薄膜，包括一层树脂，其主要结构为通过热处理上述材料或上述涂覆清漆得到的聚苯并咪唑，发生缩聚反应和交联反应并具有细小孔隙；以及一种半导体器件，包括用于多层布线的绝缘中间层膜，包括上述绝缘薄膜和/或表面保护膜，包括上述绝缘薄膜。具有优异的电性能、热性能和机械性能，并且可以实现低介电常数。
• Benzoxazole Resin Precursor, Polybenzoxazole Resin, Resin Film And Semiconductor Device
  申请人：Enoki Takashi

  公开号：US20080206548A1

  公开（公告）日：2008-08-28

  A benzoxazole resin precursor comprising a first repeating unit which is obtained by the reaction of a bisaminophenol compound and a dicarboxylic acid compound, at least one of which has the diamondoid structure; a benzoxazole resin precursor further comprising a second repeating unit which is obtained by the reaction of a bisaminophenol compound having no diamondoid structure and a dicarboxylic acid compound having no diamondoid structure; a polybenzoxazole resin obtained by the ring-closing reaction with dehydration of the above benzoxazole resin precursor; a resin film constituted with the benzoxazole resin precursor or the polybenzoxazole resin. A polybenzoxazole resin and a resin film having excellent heat resistance and a small permittivity and a semiconductor device using the resin film can be obtained from the benzoxazole resin precursor.

  一种苯并噁唑树脂前体，包括第一重复单元，该单元由双氨基酚化合物和二羧酸化合物反应得到，其中至少一个具有金刚烷结构；一种苯并噁唑树脂前体，进一步包括第二重复单元，该单元由不具有金刚烷结构的双氨基酚化合物和不具有金刚烷结构的二羧酸化合物反应得到；通过上述苯并噁唑树脂前体的环合反应和脱水反应得到的聚苯并噁唑树脂；由苯并噁唑树脂前体或聚苯并噁唑树脂构成的树脂膜。可以从苯并噁唑树脂前体中获得具有优异耐热性和小介电常数的聚苯并噁唑树脂和树脂膜，以及使用树脂膜的半导体器件。
• Resin Composition, Varnish, Resin Film and Semiconductor Device
  申请人：Enoki Takashi

  公开号：US20090214860A1

  公开（公告）日：2009-08-27

  Disclosed is a resin composition comprising a benzoxazole resin precursor having a first repeating unit obtained by reacting a bisaminophenol compound and a dicarboxylic acid compound, and a cross-linking agent wherein at least one of the bisaminophenol compound and the dicarboxylic acid compound has a diamondoid structure. The benzoxazole resin precursor further comprises a second repeating unit obtained by reacting a bisaminophenol compound not having a diamondoid structure and a dicarboxylic acid compound not having a diamondoid structure. Also disclosed is a resin film comprising the resin composition.

  本发明公开了一种树脂组合物，包括一种苯并噁唑树脂前体，其具有通过反应双氨基酚化合物和二羧酸化合物得到的第一重复单元，以及交联剂，其中双氨基酚化合物和/或二羧酸化合物中至少有一个具有金刚烷结构。苯并噁唑树脂前体还包括通过反应不具有金刚烷结构的双氨基酚化合物和不具有金刚烷结构的二羧酸化合物得到的第二重复单元。此外，本发明还公开了一种包括该树脂组合物的树脂膜。

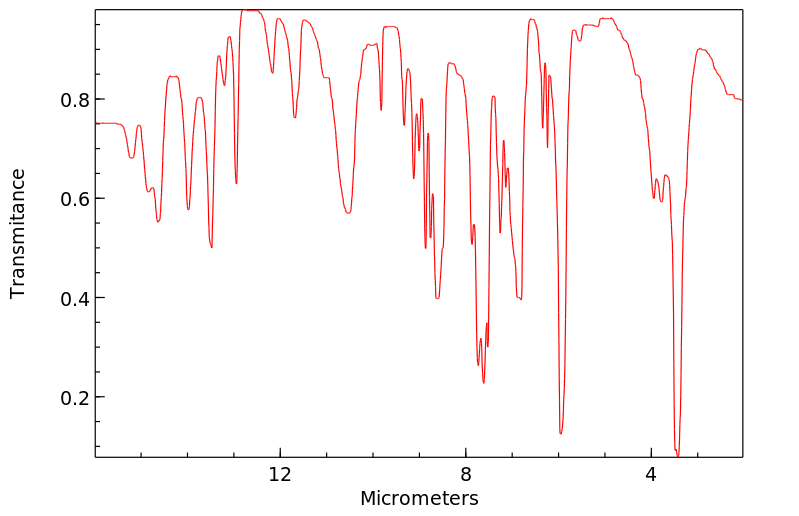

表征谱图
