3,3'-Dicarboxy-diphenylsulfon | 22452-74-0

• 分子结构分类: 有机化合物 - 苯类化合物 - 苯和取代衍生物
• 英文名称: 3,3'-Dicarboxy-diphenylsulfon
• 英文别名: 3,3'-sulfonylbis-benzoic acid；3,3'-dicarboxydiphenyl sulfone；bis(3-carboxyphenyl)sulfone；Benzoic acid, 3,3'-sulfonylbis-；3-(3-carboxyphenyl)sulfonylbenzoic acid
• CAS: 22452-74-0
• 化学式: C₁₄H₁₀O₆S
• 分子量: 306.296
• InChiKey: BBECNDJSLQBLJL-UHFFFAOYSA-N

计算性质

• 辛醇/水分配系数(LogP)：
  1.8
• 重原子数：
  21
• 可旋转键数：
  4
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  117
• 氢给体数：
  2
• 氢受体数：
  6

文献信息

• Diphosphines, preparation and uses thereof
  申请人：Lemaire Marc

  公开号：US20070010695A1

  公开（公告）日：2007-01-11

  The invention concerns novel diphosphines of formula (I) useful in particular, in their optically active form, as ligands in metal complexes. The invention also concerns their uses an intermediates in the preparation of polymeric insoluble ligands. The invention further concerns the use of said insoluble ligands in the preparation of metal complexes for asymmetric. catalysis.

  该发明涉及公式（I）的新型二膦化合物，特别是它们的光学活性形式，在金属配合物中作为配体的有用性。该发明还涉及它们作为聚合物不溶性配体的中间体在制备中的用途。此外，该发明还涉及所述不溶性配体在制备用于不对称催化的金属配合物中的应用。
• ACETYLENE COMPOUND, SALT THEREOF, CONDENSATE THEREOF, AND COMPOSITION THEREOF
  申请人：Fujifilm Corporation

  公开号：EP2202220A1

  公开（公告）日：2010-06-30

  [Problem to be Solved] To provide an acetylene compound having a structure in which a unit having an amino group and a unit having an ethynyl group are bonded via a linking group, the acetylene compound being introducable to a polymer having thermal resistance. [Means for Solving the Problem] An acetylene compound represented by the following Formula (1) and a salt thereof: wherein in Formula (1), X represents a single bond or a divalent linking group; A represents a hydrocarbon group, a heteroaromatic ring or a heteroalicyclic compound; B represents a hydrocarbon group, a heteroaromatic ring, a heteroalicyclic compound or a single bond; R1 represents a hydrogen atom, a hydrocarbon group, a heteroaromatic ring, a heteroalicyclic compound or a silyl group; R4 represents a hydrogen atom or a group that can be a substituent of an amino group; and m, n and a each independently represent an integer of 1 or greater.

  解决的问题是提供一种乙炔化合物，其结构中含有通过连接基团连接的具有氨基团和乙炔基团的单元，该乙炔化合物可引入到具有热阻抗的聚合物中。解决问题的方法是通过以下式（1）表示的乙炔化合物及其盐：其中在式（1）中，X代表单键或二价连接基团；A代表烃基团、杂环芳香环或杂环脂环化合物；B代表烃基团、杂环芳香环、杂环脂环化合物或单键；R1代表氢原子、烃基团、杂环芳香环、杂环脂环化合物或硅基团；R4代表氢原子或可作为氨基团的取代基团；m、n和a分别独立表示大于或等于1的整数。
• NOVEL COMPOUND, POLYIMIDE RESIN AND METHOD OF PRODUCING THE SAME, PHOTOSENSITIVE RESIN COMPOSITION, PATTERNING METHOD AND METHOD OF FORMING CURED FILM, INTERLAYER INSULATING FILM, SURFACE PROTECTIVE FILM, AND ELECTRONIC COMPONENT
  申请人：International Business Machines Corporation

  公开号：US20210317270A1

  公开（公告）日：2021-10-14

  Provided is a compound that can be used as a base resin for a photosensitive resin composition. The photosensitive resin can form a fine pattern and can achieve high resolution without impairing mechanical strength and solubility. The compound is represented by the general formula (1): wherein Z represents a linear, branched or cyclic divalent hydrocarbon group having 2 to 30 carbon atoms; X 1 to X 3 represent any of —CO 2 —, —CONR X1 —, —O—, —NR X1 —, —S—, —SO 2 —, —SO 3 — and —SO 2 NR X1 — and may be the same as or different from each other, provided that R X1 is a hydrogen atom or a monovalent hydrocarbon group having 1 to 30 carbon atoms; Ar represents a divalent aromatic group having 2 to 30 carbon atoms; L 1 and L 2 independently represent a divalent hydrocarbon group having 1 to 30 carbon atoms; and x and y are each independently 0 or 1.

  提供的是一种可以用作光敏树脂组合物的基树脂的化合物。这种光敏树脂可以形成精细图案，并且可以在不影响机械强度和溶解性的情况下实现高分辨率。该化合物由通式（1）表示：其中Z代表具有2到30个碳原子的线性、支链或环状二价碳氢基团；X1到X3代表任何一种—CO2—、—CONRX1—、—O—、—NRX1—、—S—、—SO2—、—SO3—和—SO2NRX1—中的一种，并且它们可以相同也可以不同，只要RX1是氢原子或具有1到30个碳原子的一价碳氢基团；Ar代表具有2到30个碳原子的二价芳香基团；L1和L2分别代表具有1到30个碳原子的二价碳氢基团；x和y分别独立地为0或1。
• Precursor of a heat resistant resin, heat resistant resin, insulating film and semiconductor device
  申请人：——

  公开号：US20020013443A1

  公开（公告）日：2002-01-31

  A precursor of a polybenzoxazole resin which comprises a crosslinking group in a molecule and has a specific structure, a polybenzoxazole resin obtained from the precursor by the condensation reaction and the crosslinking reaction, an insulating film comprising the polybenzoxazole resin and a semiconductor device comprising an insulating interlayer film in multi-layer wiring or a film for protecting surfaces which comprises the above insulating film. The precursor exhibits excellent processability due to excellent solubility in solvents and, after the ring closure, excellent heat stability in applications. The resin exhibits excellent electric, physical and mechanical properties and is advantageously used for insulating interlayer films of semiconductor devices and the like applications.

  一种聚苯并咪唑树脂的前体，其分子中包含交联基团并具有特定的结构，通过缩合反应和交联反应获得的聚苯并咪唑树脂，包括聚苯并咪唑树脂的绝缘膜以及包括上述绝缘膜的多层布线中的绝缘中间层膜或用于保护表面的膜的半导体器件。由于前体在溶剂中具有优异的溶解性，因此表现出优异的加工性能，并且在环闭后具有优异的热稳定性能，树脂表现出优异的电学、物理和机械性能，可优点地用于半导体器件的绝缘中间层膜等应用。
• Material for an insulating film, coating varnish for an insulating film, and insulating film and semiconductor device using the same
  申请人：——

  公开号：US20040002572A1

  公开（公告）日：2004-01-01

  A material for an insulating film which comprises a copolymer obtained by reacting a polyamide having a specific structure and a reactive oligomer as a component forming the film; a coating varnish for an insulating film which comprises this material and an organic solvent; an insulating film which comprises a layer of a resin comprising as a main structure a polybenzoxazole which is obtained by treating the above material or the above coating varnish by heating so that condensation reaction and crosslinking reaction take place and has fine pores; and a semiconductor device which comprises an insulating interlayer film for multi-layer wiring comprising the insulating film and/or a surface protective film comprising the insulating film. Excellent electrical, thermal and mechanical properties are exhibited and a low permittivity can be achieved.

  一种绝缘薄膜材料，包括由特定结构的聚酰胺和反应性低聚物作为成膜组分所反应得到的共聚物；一种用于绝缘薄膜的涂覆清漆，包括该材料和有机溶剂；一种绝缘薄膜，包括一层树脂，其主要结构为通过热处理上述材料或上述涂覆清漆得到的聚苯并咪唑，发生缩聚反应和交联反应并具有细小孔隙；以及一种半导体器件，包括用于多层布线的绝缘中间层膜，包括上述绝缘薄膜和/或表面保护膜，包括上述绝缘薄膜。具有优异的电性能、热性能和机械性能，并且可以实现低介电常数。

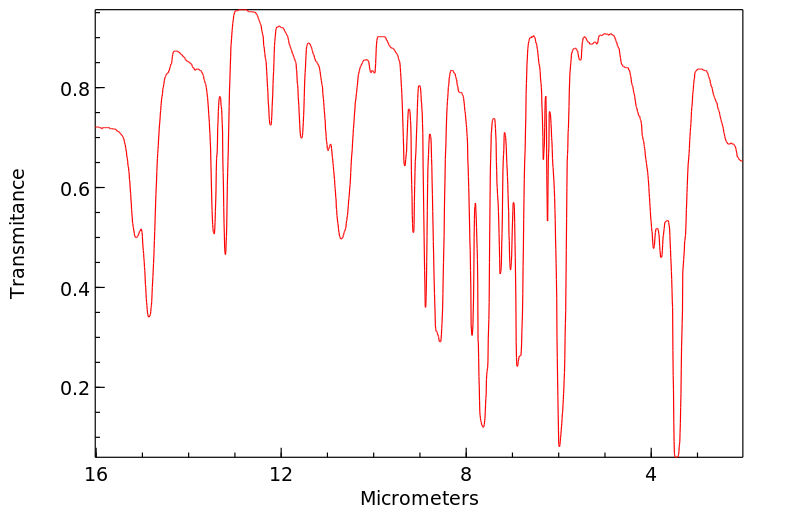

表征谱图
