3,9-双[2-(3,5-二氨基-2,4,6-三氮苯基)乙基]-2,4,8,10-四氧螺环[5,5]十一烷 | 22535-90-6

• 物质功能分类: 生物化工 - 提取物 - 植物提取物
• 分子结构分类: 有机化合物 - 有机杂环化合物 - 三嗪类
• 中文名称: 3,9-双[2-(3,5-二氨基-2,4,6-三氮苯基)乙基]-2,4,8,10-四氧螺环[5,5]十一烷
• 中文别名: 3,9-双[2-(3,5-二氨基-2,4,6-三氮杂苯基)乙基]-2,4,6,8-四氧螺[5.5]十一烷；3,9-双[2-(3,5-二氨基-2,4,6-三氮杂苯基)乙基]-2,4,8,10-四氧杂螺[5.5]十一烷
• 英文名称: 3,9-Bis<2-(2,4-diamino-s-triazin-6-yl)ethyl>-2,4,8,10-tetraoxaspiro<5.5>undecan
• 英文别名: 6,6'-(2,4,8,10-tetraoxaspiro[5.5]undecane-3,9-diyldiethylene)bis(1,3,5-triazine-2,4-diamine)；3,9-Bis[2-(3,5-diamino-2,4,6-triazaphenyl)ethyl]-2,4,8,10-tetraoxaspiro[5.5]undecane；6-[2-[3-[2-(4,6-diamino-1,3,5-triazin-2-yl)ethyl]-2,4,8,10-tetraoxaspiro[5.5]undecan-9-yl]ethyl]-1,3,5-triazine-2,4-diamine
• CAS: 22535-90-6
• 化学式: C₁₇H₂₆N₁₀O₄
• 分子量: 434.458
• InChiKey: DUZLHGMYNVZMCO-UHFFFAOYSA-N

物化性质

• 稳定性/保质期：
  <p><b></b></p>

计算性质

• 辛醇/水分配系数(LogP)：
  -1
• 重原子数：
  31
• 可旋转键数：
  6
• 环数：
  4.0
• sp3杂化的碳原子比例：
  0.65
• 拓扑面积：
  218
• 氢给体数：
  4
• 氢受体数：
  14

安全信息

• 安全说明：
  S26,S36/37/39
• 危险类别码：
  R36/37/38

制备方法与用途

合成制备方法
用途

文献信息

• Photocrosslinkable polyurethanes
  申请人：Sailer Bernhard

  公开号：US20060204895A1

  公开（公告）日：2006-09-14

  Linear crosslinkable polyurethanes obtained from (a) at least one diisocyanate having 2 to 30 carbon atoms, (b) at least one aliphatic or cycloaliphatic diol having 2 to 30 carbon atoms, to whose carbon chain at least one carboxyl group is covalently bonded, and some or all of said carboxyl groups have been esterified with an olefinically unsaturated C 3 -C 8 alcohol or with the glycidyl ester of an olefinically unsaturated C 3 -C 8 carboxylic acid, and (c) optionally at least one aliphatic or cycloaliphatic diol having 2 to 30 carbon atoms, to whose carbon chain at least one carboxyl group is covalently bonded. The polyurethanes are suitable, alone or as a mixture with other reactive components, for thermal and/or photochemical crosslinking in crosslinkable compositions for the production of mouldings, coatings and in particular solder masks.

  该文段描述了由以下成分制备的线性交联聚氨酯：（a）至少含有2到30个碳原子的二异氰酸酯，（b）至少含有2到30个碳原子的脂肪族或环脂族二醇，其碳链上至少有一个羧基共价结合，并且其中一些或全部羧基已经与烯丙基未饱和的C3-C8醇或烯丙基未饱和的C3-C8羧酸的环氧基酯化合物酯化，以及（c）可选地至少含有2到30个碳原子的脂肪族或环脂族二醇，其碳链上至少有一个羧基共价结合。这些聚氨酯可以单独使用或与其他反应性组分混合，用于热交联和/或光交联交联可制备成型、涂层和特别是钎焊面具的交联组合物的生产。
• Curable resin compositions and semiconductor devices coated and sealed with the same
  申请人：HITACHI, LTD.

  公开号：EP0237255A2

  公开（公告）日：1987-09-16

  A thermosetting resin composition comprising at least a cycloaliphatic ether oligomer represented by the general formula (I): wherein m and n are each 0 to 30 and 2

  一种热固性树脂组合物，至少包含由通式 (I) 表示的环脂族醚低聚物： 其中 m 和 n 分别为 0 至 30 和 2
• Crystalline polyolefin composition
  申请人：Chisso Corporation

  公开号：EP0416321A1

  公开（公告）日：1991-03-13

  A crystalline polyolefin composition which provides molded articles having improved stiffness characteristics is disclosed, comprising 100 parts by weight of a crystalline polyolefin, (A) from 0.001 to 1 part by weight of a fluorophosphite compound represented by formula (I): wherein R represents an alkylidene group having from 1 to 4 carbon atoms or a sulfur atom; Ar1 and Ar2, which may be the same or different, each represents an alkylarylene group or a cycloalkylarylene group; and n represents 0 or 1, and (B) from 0.001 to 1 part by weight of at least one compound selected from the group consisting of (1) an aliphatic monocarboxylic acid salt with lithium or sodium, (2) a dithiocarbamic acid salt with lithium, sodium or potassium, (3) a 2-mercaptobenzothiazole salt with lithium, sodium or potassium, (4) a 2-mercaptobenzimidazole salt with lithium, sodium or potassium and (5) a benzotriazole salt with lithium, sodium or potassium. A crystalline polyolefin composition which provides molded articles having improved stiffness charateristics is also disclosed, comprising 100 parts by weight of a crystalline polyolefin, (A) from 0.001 to 1 part by weight of a fluorophosphite compound represented by formula (I) shown above, (B ) from 0.001 to 1 part by weight of at least one compound selected from the group consisting of (1) an aliphatic monocarboxylic acid salt with potassium, strontium or barium, (2) a hydroxy-higher fatty acid salt with potassium, strontium or barium, (3) an aliphatic polycarboxylic acid salt with lithium, sodium, potassium, strontium or barium, (4) a salt of an aliphatic hydroxy acid having form 2 to 6 carbon atoms with lithium, sodium, potassium, magnesium, strontium or barium, (5) an aromatic carboxylic acid salt with lithium, sodium, strontium, barium or aluminum, (6) a glutamic acid salt with lithium, sodium, potassium, strontium or barium, (7) an aliphatic phosphoric acid salt with sodium, potassium, calcium, strontium or barium, (8) a lithium, sodium, potassium or barium salt of a cyclic phosphorus compound represented by formula (II): wherein Ar3 and Ar4, which may be the same or different, each represents an arylene group, an alkylarylene group, a cycloalkylarylene group, an arylarylene group or an aralkylarylene group; M represents lithium, sodium, potassium or barium; and m represents an atomic valence of M, (9) magnesium or aluminum hydroxide, (10) magnesium oxide, (11) magnesium or calcium carbonate and (12) hydrotalcite, and (C) from 0.01 to 1 part by weight of an aliphatic amine.

  本发明公开了一种结晶聚烯烃组合物，该组合物可提供具有改进的刚度特性的模塑制品，该组合物包括按重量计100份的结晶聚烯烃、(A)按重量计0.001至1份的由式(I)代表的亚磷酸氟化合物： 其中 R 代表具有 1 至 4 个碳原子的亚烷基或硫原子；Ar1 和 Ar2 可以相同或不同，各自代表烷基芳基或环烷基芳基；n 代表 0 或 1，以及 (B) 0.(1) 锂或钠的脂肪族一羧酸盐，(2) 锂、钠或钾的二硫代氨基甲酸盐、(3) 锂、钠或钾的 2-巯基苯并噻唑盐， (4) 锂、钠或钾的 2-巯基苯并咪唑盐， (5) 锂、钠或钾的苯并三唑盐。 本发明还公开了一种结晶聚烯烃组合物，该组合物可提供具有改进的刚度特性的模塑制品，其成分包括 100 份（重量）结晶聚烯烃、(A) 0.001 至 1 份（重量）由上文式(I)代表的亚磷酸氟化合物、(B ) 0.(1)钾、锶或钡的脂肪族一羧酸盐；(2)钾、锶或钡的羟基高级脂肪酸盐；(3)锂、钠、钾、锶或钡的脂肪族多羧酸盐；(4)锂、钠、钾、镁、锶或钡的具有 2 至 6 个碳原子的脂肪族羟基酸盐、(5) 锂、钠、锶、钡或铝的芳香族羧酸盐； (6) 锂、钠、钾、锶或钡的谷氨酸盐、(7) 含有钠、钾、钙、锶或钡的脂肪族磷酸盐， (8) 由式（II）代表的环磷化合物的锂、钠、钾或钡盐： 其中 Ar3 和 Ar4 可以相同或不同，各自代表芳基、烷芳基、环烷芳基、芳基芳基或芳基芳基；M 代表锂、钠、钾或钡；m 代表 M 的原子价，(9) 氢氧化镁或铝，(10) 氧化镁，(11) 碳酸镁或碳酸钙和 (12) 水滑石，以及 (C) 0.01至1份重量的脂肪族胺。
• Injection molded article for photographic photosensitive material, molding method thereof and package using the same
  申请人：Fuji Photo Film Co., Ltd.

  公开号：EP0717079A2

  公开（公告）日：1996-06-19

  An injection molded article for photographic photosensitive materials is disclosed, which is formed of a noncrystalline resin composition containing 50 wt% or more of a noncrystalline resin having a melt flow rate of from 1 to 60 g/10 min, a flexural modulus of elasticity of 20,000 kg/cm² or more and a thermal deformation temperature of 70°C or higher, from 0.1 to 45 wt% of one or more of a rubbery material, a thermoplastic elastomer and an ethylene copolymer resin, from 0.01 to 49.9 wt% of one or more of a light-shielding material and a fibrous filler and from 0.001 to 20 wt% of one or more of an antioxidant, an age resistor, an ultraviolet absorbent, a fatty acid metal salt, a radical scavenger, a hydrate double salt compound and an oxidation inhibitory synergistic effect-providing agent. Also disclosed are a method for forming the injection molded article for photographic photosensitive materials and a package using the injection molded article for photographic photosensitive materials.

  本发明公开了一种用于感光材料的注塑制品，它是由非结晶树脂组合物形成的，该非结晶树脂组合物含有 50 wt% 或更多的非结晶树脂，其熔体流动速率为 1 至 60 g/10 min，弯曲弹性模量为 20,000 kg/cm² 或更高，热变形温度为 70°C 或更高，0.1 至 45 wt% 的橡胶材料、热塑性弹性体和乙烯共聚物树脂中的一种或多种，0.01 至 49.9 wt% 的遮光材料和纤维状填料中的一种或多种，以及 0.001 至 20 wt% 的抗氧化剂、抗老化剂、紫外线吸收剂、脂肪酸金属盐、自由基清除剂、水合物双盐化合物和氧化抑制增效剂中的一种或多种。此外，还公开了一种用于感光材料的注塑成型品的成型方法和一种使用该感光材料注塑成型品的包装。
• OLEFIN (CO)POLYMER COMPOSITION, PROCESS FOR PRODUCING THE SAME, CATALYST FOR (CO)POLYMERIZING OLEFIN, AND PROCESS FOR PRODUCING THE SAME
  申请人：CHISSO CORPORATION

  公开号：EP0856526A1

  公开（公告）日：1998-08-05

  An olefin (co-)polymer composition including 0.01 to 5.0 weight parts of high molecular weight polyethylene which is an ethylene homopolymer or an ethylene-olefin copolymer containing 50 weight % or more of an ethylene polymerization unit; and 100 weight parts of an olefin (co-)polymer other than the high molecular weight polyethylene, wherein said high molecular weight polyethylene has an intrinsic viscosity [ηE] of 15 to 100 dl/g measured in tetralin at 135°C or more, and said high molecular weight polyethylene exists as dispersed fine particles having a numerical average particle size of 1 to 5000 nm.

  一种烯烃（共）聚合物组合物，包括 0.01 至 5.0 重量份的高分子量聚乙烯，它是乙烯均聚物或乙烯-烯烃共聚物，含有 50 重量 % 或更多的乙烯聚合单元；和 100 重量份除高分子量聚乙烯以外的烯烃（共）聚合物，其中所述高分子 聚乙烯在 135℃或更高温度下在四萘中测得的固有粘度[ηE]为 15 至 100 分升/克，且所述高分子聚乙烯以分散的细颗粒形式存在，其数值平均粒径为 1 至 5000 纳米。

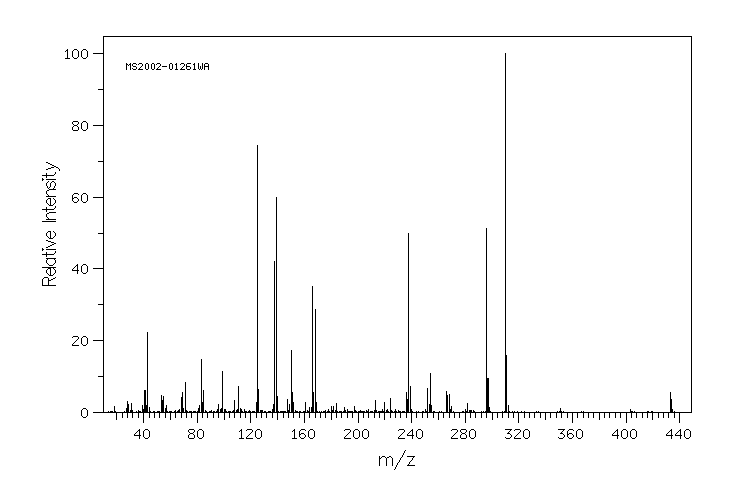

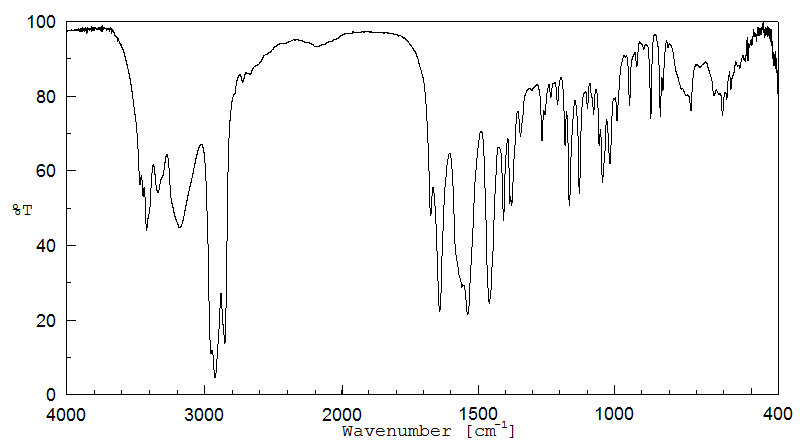

表征谱图
