1,2,3,4-环丁四烷四碳二亚胺 | 4415-88-7

• 分子结构分类: 有机化合物 - 有机杂环化合物 - 异吲哚及其衍生物
• 中文名称: 1,2,3,4-环丁四烷四碳二亚胺
• 英文名称: 1,2,3,4-Cyclobutanetetracarboxdiimide
• 英文别名: 4,9-diazatricyclo[5.3.0.02,6]decane-3,5,8,10-tetrone
• CAS: 4415-88-7
• 化学式: C₈H₆N₂O₄
• 分子量: 194.14
• InChiKey: NWRWMFOKSXWCHV-UHFFFAOYSA-N

物化性质

• 熔点：
  350°C(lit.)
• 沸点：
  614.1±55.0 °C(Predicted)
• 密度：
  1.652±0.06 g/cm3(Predicted)

计算性质

• 辛醇/水分配系数(LogP)：
  -2.4
• 重原子数：
  14
• 可旋转键数：
  0
• 环数：
  3.0
• sp3杂化的碳原子比例：
  0.5
• 拓扑面积：
  92.3
• 氢给体数：
  2
• 氢受体数：
  4

反应信息

• 作为产物：
  描述：

  马来酰亚胺 生成 1,2,3,4-环丁四烷四碳二亚胺
  参考文献：
  名称：

  SHAJXRAZIEVA V. SH.; TALVINSKIJ E. V.; TOLSTIKOV G. A., ZH. ORGAN. XIMII, 1978, 14, HO 7, 1522-1529

  摘要：

  DOI：

文献信息

• Methods for preparing arene-BIS (dicarboximide)-based semiconducting materials and related intermediates for preparing same
  申请人：Facchetti Antonio

  公开号：US20080177073A1

  公开（公告）日：2008-07-24

  The present teachings provide compounds of formulae I and II: where Q, R a , R 1 , W, and n are as defined herein. The present teachings also provide methods of preparing compounds of formulae I and II, including methods of preparing compounds of formula II from compounds of formula I. The compounds disclosed herein can be used to prepare semiconductor materials and related composites and electronic devices.

  本教学提供了符合以下公式I和II的化合物：其中Q、Ra、R1、W和n的定义如本文所述。本教学还提供了制备符合公式I和II的化合物的方法，包括从符合公式I的化合物制备符合公式II的方法。本文披露的化合物可用于制备半导体材料、相关复合材料和电子器件。
• POLYMER FOR ALIGNMENT FILMS, AND LIQUID CRYSTAL DISPLAY DEVICE
  申请人：Sharp Kabushiki Kaisha

  公开号：US20150234236A1

  公开（公告）日：2015-08-20

  Provided are: a polymer for alignment films, which enables the production of a liquid crystal display device that is suppressed in image burn-in even if the light irradiation time is reduced; and a liquid crystal display device which is suppressed in image burn-in even if the light irradiation time is reduced. A polymer for alignment films, which has a main chain and a side chain that contains a structure represented by chemical formula —O—C(C 6 H 5 )(CO—C 6 H 5 )—O—; and a liquid crystal display device which comprises a pair of substrates and a liquid crystal layer that is held between the pair of substrates, and wherein at least one of the substrates has an alignment film, on which a polymer layer for controlling the alignment of liquid crystal molecules is formed, and the alignment film is formed using a polymer for alignment films, which has a main chain and a side chain that contains a structure represented by chemical formula —O—C(C 6 H 5 )(CO—C 6 H 5 )—O—.

  提供的是：一种用于定向膜的聚合物，能够制造出抑制图像烧入的液晶显示器设备，即使减少光照时间；以及一种液晶显示器设备，即使减少光照时间也能抑制图像烧入。该聚合物具有主链和侧链，其中侧链含有化学式表示的结构——O—C(C6H5)(CO— )—O—；该液晶显示器设备包括一对基板和夹在两个基板之间的液晶层，其中至少一个基板具有定向膜，该定向膜上形成了用于控制液晶分子定向的聚合物层，该定向膜使用一种用于定向膜的聚合物形成，该聚合物具有主链和侧链，其中侧链含有化学式表示的结构——O—C( )(CO— )—O—。
• ALL-SOLID SECONDARY BATTERY, SOLID ELECTROLYTE COMPOSITION AND ELECTRODE SHEET FOR BATTERY USED THEREIN, AND METHODS OF MANUFACTURING ELECTRODE SHEET FOR BATTERY AND ALL-SOLID SECONDARY BATTERY
  申请人：Fujifilm Corporation

  公开号：EP3258530A1

  公开（公告）日：2017-12-20

  Provided are an all solid state secondary battery having a positive electrode active material layer, an inorganic solid electrolyte layer, and a negative electrode active material layer in this order, in which at least one layer of the positive electrode active material layer, the inorganic solid electrolyte layer, or the negative electrode active material layer includes an electrolytic polymerizable compound and an inorganic solid electrolyte, in which the electrolytic polymerizable compound is an electrolytic polymerizable compound having a molecular weight of less than 1,000 which is represented by any one of Formulae (1) to (5) below, and the inorganic solid electrolyte contains a metal belonging to Group I or II of the periodic table and has an ion conductivity of the metal being contained, an electrode sheet for a battery, and method for manufacturing an electrode sheet for a battery and an all solid state secondary battery. Reference signs each independently represent a specific atom, substituent, or linking group.

  本发明提供了一种全固态二次电池，该电池依次具有正极活性材料层、无机固体电解质层和负极活性材料层，其中正极活性材料层、无机固体电解质层或负极活性材料层中至少有一层包括电解可聚合化合物和无机固体电解质、其中，电解可聚合化合物是分子量小于 1,000 的电解可聚合化合物，由下式（1）至（5）中的任一个表示，无机固体电解质含有属于元素周期表第 I 组或第 II 组的金属，并具有所含金属的离子电导率，电池电极片，以及电池电极片和全固态二次电池的制造方法。 参考符号各自独立地代表一个特定的原子、取代基或连接基团。
• All solid state secondary battery, solid electrolyte composition used therefor, electrode sheet for battery, and method for manufacturing electrode sheet for battery and all solid state secondary battery
  申请人：FUJIFILM Corporation

  公开号：US10411292B2

  公开（公告）日：2019-09-10

  Provided are an all solid state secondary battery having a positive electrode active material layer, an inorganic solid electrolyte layer, and a negative electrode active material layer in this order, in which at least one layer of the positive electrode active material layer, the inorganic solid electrolyte layer, or the negative electrode active material layer includes an electrolytic polymerizable compound and an inorganic solid electrolyte, in which the electrolytic polymerizable compound is an electrolytic polymerizable compound having a molecular weight of less than 1,000 which is represented by any one of Formulae (1) to (5) below, and the inorganic solid electrolyte contains a metal belonging to Group I or II of the periodic table and has an ion conductivity of the metal being contained, an electrode sheet for a battery, and method for manufacturing an electrode sheet for a battery and an all solid state secondary battery. Reference signals each independently represent a specific atom, substituent, or linking group.

  本发明提供了一种全固态二次电池，该电池依次具有正极活性材料层、无机固体电解质层和负极活性材料层，其中正极活性材料层、无机固体电解质层或负极活性材料层中至少有一层包括电解可聚合化合物和无机固体电解质、其中，电解可聚合化合物是分子量小于 1,000 的电解可聚合化合物，由下式（1）至（5）中的任一个表示，无机固体电解质含有属于元素周期表第 I 组或第 II 组的金属，并具有所含金属的离子电导率，电池电极片，以及电池电极片和全固态二次电池的制造方法。 参考信号各自独立地代表一个特定的原子、取代基或连接基团。
• ALL-SOLID STATE SECONDARY BATTERY, SOLID ELECTROLYTE COMPOSITION USED THEREFOR, ELECTRODE SHEET FOR BATTERY, AND METHODS FOR MANUFACTURING ELECTRODE SHEET FOR BATTERY AND ALL-SOLID STATE SECONDARY BATTERY
  申请人：Fujifilm Corporation

  公开号：EP3258530B1

  公开（公告）日：2019-06-19

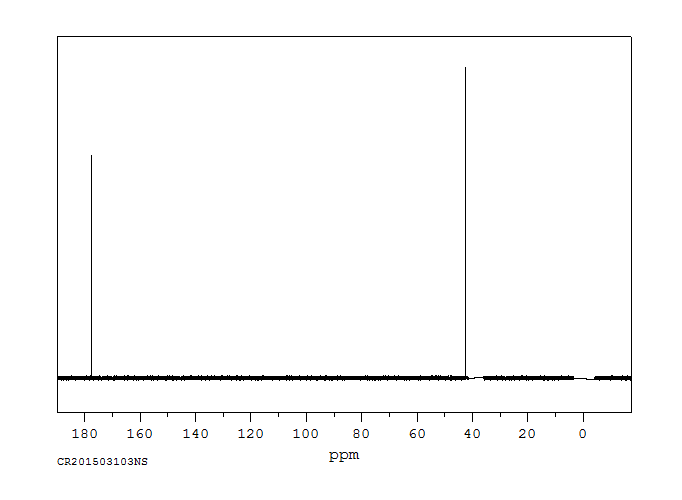

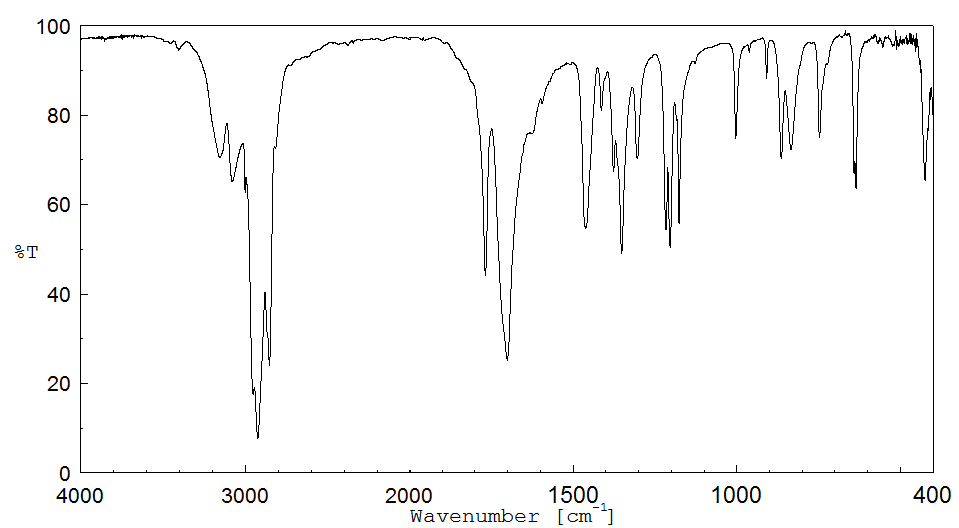

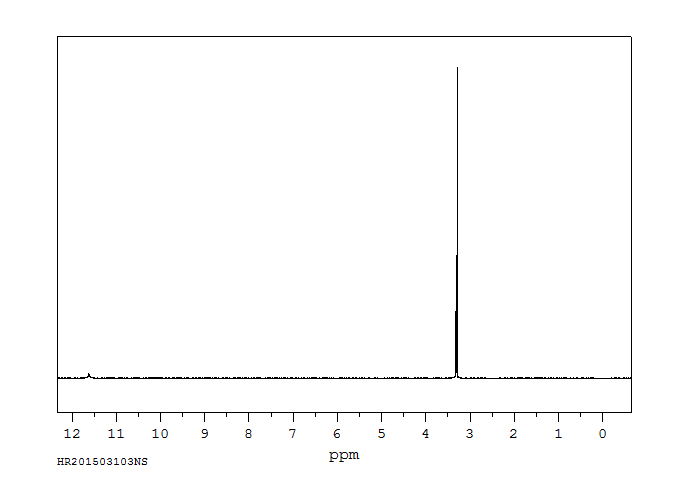

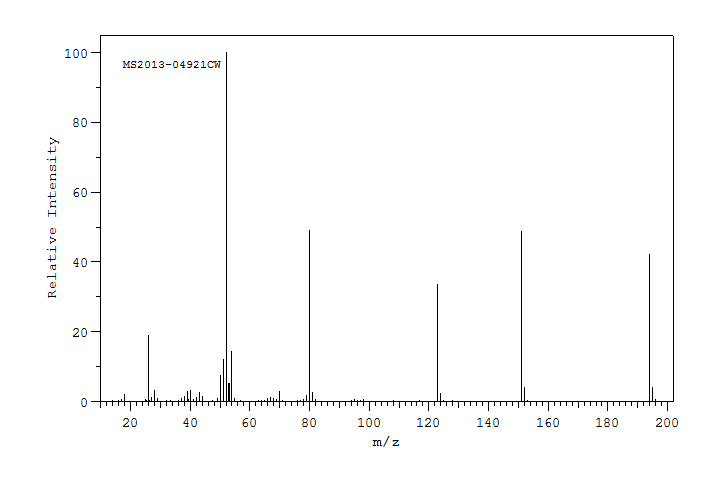

表征谱图
