2,7-naphthalenedisulfonate anion

• 分子结构分类: 有机化合物 - 苯类化合物 - 萘
• 英文名称: 2,7-naphthalenedisulfonate anion
• 英文别名: naphthalene-2,7-disulfonate；2,7-naphthalenedisulfonate
• 化学式: C₁₀H₆O₆S₂
• 分子量: 286.286
• InChiKey: VILFVXYKHXVYAB-UHFFFAOYSA-L

计算性质

• 辛醇/水分配系数(LogP)：
  -0.8
• 重原子数：
  18
• 可旋转键数：
  0
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.0
• 拓扑面积：
  131
• 氢给体数：
  0
• 氢受体数：
  6

反应信息

• 作为反应物：
  描述：

  、 2,7-naphthalenedisulfonate anion 以 二甲基亚砜 为溶剂， 生成
  参考文献：
  名称：

  基于螺旋烯的配位笼中的手性自我歧视和宾客识别

  摘要：

  手性纳米级禁闭对于生物系统中的对映选择性识别和反应控制起着重要作用。超分子自组装可访问具有可调大小和特性的人工模拟物。在此，介绍了一种基于手性[6]螺旋烯骨架的[Pd 2 L 4 ]配位笼的新家族。双单齿吡啶基配体L 1的外消旋混合物在手性自识别下与Pd II阳离子选择性组装成非手性介观笼，顺式[Pd 2 L 1 P 2 L 1 M 2 ]。对映体L 1形成同手性笼[Pd 2 L 1 P / M 4 ]。较长的衍生物L 2形成具有较大空腔的手性笼[Pd 2 L 2 P / M 4 ]，它们结合具有不同亲和力的手性客体的旋光异构体。由于其独特的手性，该笼子可以区分不同长度的非手性客体，因为发现它们在螺旋形螺距的调节下挤压或拉长了空腔。CD光谱结果得到离子迁移质谱的支持。

  DOI：

  10.1002/anie.201812926

文献信息

• Lanthanide–Organic Frameworks Constructed from 2,7-Naphthalenedisulfonate and 1<i>H</i>-Imidazo[4,5-<i>f</i>][1,10]-phenanthroline: Synthesis, Structure, and Luminescence with Near-Visible Light Excitation and Magnetic Properties
  作者：Jing-Ming Li、Rui Huo、Xia Li、Hao-Ling Sun

  DOI：10.1021/acs.inorgchem.9b00925

  日期：2019.8.5

  New Ln-metal–organic frameworks (Ln-MOFs), [Ln(2,7-NDS)(IP)(OH)(H2O)2]·mH2O}n [Ln = Sm 1, Eu 2, Gd 3, Tb 4, Dy 5, m = 0.5–0; 2,7-NDS = 2,7-naphthalenedisulfonate, and IP = 1H-imidazo[4,5-f][1,10]-phenanthroline) were obtained by the hydrothermal method. The Ln-MOFs feature one-dimensional double chain structures. The photoluminescent properties of these complexes were investigated. Notably, the Eu-MOF

  新的Ln-金属有机骨架（Ln-MOF），[Ln（2,7-NDS）（IP）（OH）（H 2 O）2 ]· m H 2 O} n [Ln = Sm 1，Eu 2，Gd 3，Tb 4，Dy 5，m = 0.5-0；2,7-NDS = 2,7-萘二磺酸盐，IP = 1 H-咪唑[4,5- f通过水热法获得[[1，10]-菲咯啉）。Ln-MOF具有一维双链结构。研究了这些配合物的光致发光性质。值得注意的是，Eu-MOF在紫外可见区域具有从250到400 nm的宽激发带，并且从Eu 3的5 D 0 → 7 F J跃迁（其中J = 0–4）呈现红色发射。+离子。值得注意的是，它在350 nm < λex <385 nm的近可见光照射下仍显示出强发射。使用Eu-MOF作为发光传感器，可检测Fe 3+ / Ag +在近可见区域内，在368 nm甚至385 nm的长激发波长下实现了水介质中的奥硝唑（ODZ）
• Radical Initiators in the Nanoconfinement Paradise of a Molecular Prism
  作者：Manaswini Ray、Shobhana Krishnaswamy、Asit Kumar Pradhan、Dillip Kumar Chand

  DOI：10.1021/acs.chemmater.3c00749

  日期：2023.9.12

  water-soluble prismatic nanocage has been exclusively prepared by combining cis-Pd(tmeda)(NO3)2 with the tetra-pyridyl ligand 1,3,6,8-tetra(pyridyn-3-yl)pyrene in 6:3 ratio in the absence of any externally added template. The nanocage has been characterized by NMR spectroscopy, ESI-MS, and single-crystal XRD techniques. The confined nanospace of the cage has been utilized to encapsulate nonpolar/polar/anionic-aromatic

  结合cis -Pd(tmeda)(NO 3 ) 2独家制备出新型Pd 6 L′ 6 L 3型水溶性棱柱纳米笼在没有任何外部添加模板的情况下，与四吡啶基配体 1,3,6,8-四(吡啶-3-基)芘的比例为 6:3。纳米笼已通过核磁共振波谱、ESI-MS 和单晶 XRD 技术进行了表征。笼的有限纳米空间已被用来将非极性/极性/阴离子芳香族客体分子封装在水中。该笼对长度和宽度分别在~9.5 和~5.5 Å范围内的芳香族客体分子（如对非极性客体的研究）表现出尺寸选择性。空腔结合大小兼容的客体，其中客体的相对结合偏好是非极性<极性<阴离子。当置于紫外线下时，自由基引发剂往往会分解，并且可以通过存储在合适的主体分子的空腔中以超分子方式对其进行保护。HMPP）和偶氮二异丁腈（AIBN）。与相同分子在没有宿主的情况下的半衰期相比，封装的自由基引发剂的半衰期显着增加（HMPP为 238 倍， AIBN为 305
• Cage‐To‐Cage Transformations in Self‐Assembled Coordination Cages Using “Acid/Base” or “Guest Binding‐Induced Strain” as Stimuli
  作者：Vellaiyadevan Sivalingam、Minaz Parbin、Shobhana Krishnaswamy、Dillip Kumar Chand

  DOI：10.1002/anie.202403711

  日期：2024.6.3

  Controlling supramolecular systems between different functional forms by utilizing acids/bases as stimuli is a formidable challenge, especially where labile coordination bonds are involved. A pair of acid/base responsive, interconvertible 1,5‐enedione/pyrylium based Pd2L4‐type cages are prepared that exhibit differential guest binding abilities towards disulfonates of varied sizes. A three‐state switch has been achieved, where (i) a weakly coordinating base induced cage‐to‐cage transformation in the first step, (ii) a strongly coordinating base triggered cage disassembly as the second step, and (iii) the third step shows acid(strong) promoted generation of initial cage, thereby completing the cycle. To our surprise, binding of a specific disulfonate guest facilitated cage‐to‐cage transformations by inducing strain on the cage assembly thereby opening the labile pyrylium rings of the cage. Through competitive guest binding study, we demonstrated superior guest binding capability of octa‐cationic pyrylium‐based cage over a similar‐sized tetra‐cationic cage. These results provide a reliable approach to reversibly modulate the guest binding properties of acid/base‐responsive self‐assembled coordination cages.

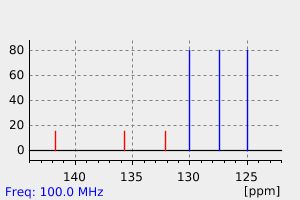

表征谱图
