4,4'-bis(pentyloxy)azoxybenzene | 107266-21-7

• 分子结构分类: 有机化合物 - 有机氮化合物
• 英文名称: 4,4'-bis(pentyloxy)azoxybenzene
• 英文别名: 4,4'-Di-n-pentyloxy-azoxybenzol；p,p'-Dipentyloxy-azoxybenzol；4,4'-Dipentyloxy-azoxybenzol；p,p'-Dipentoxy-azoxybenzol；4,4'-Bis-pentyloxy-azoxybenzol；4,4'-Bis(n-pentoxy)-azoxybenzol；4,4'-Dipentoxy-azoxybenzol；Diazene, bis[4-(pentyloxy)phenyl]-, 1-oxide；oxido-(4-pentoxyphenyl)-(4-pentoxyphenyl)iminoazanium
• CAS: 107266-21-7
• 化学式: C₂₂H₃₀N₂O₃
• mdl: MFCD00041933
• 分子量: 370.492
• InChiKey: KJMATSUHPOPLMT-UHFFFAOYSA-N

计算性质

• 辛醇/水分配系数(LogP)：
  6.7
• 重原子数：
  27
• 可旋转键数：
  12
• 环数：
  2.0
• sp3杂化的碳原子比例：
  0.454
• 拓扑面积：
  59.6
• 氢给体数：
  0
• 氢受体数：
  4

反应信息

• 作为产物：
  描述：

  4-硝基苯基戊基醚 在 氢化铋 作用下， 反应 3.0h， 以82%的产率得到4,4'-bis(pentyloxy)azoxybenzene
  参考文献：
  名称：

  The Newborn Surface of Dull Metals in Organic Synthesis. Bismuth-Mediated Solvent-Free One-Step Conversion of Nitroarenes to Azoxy- and Azoarenes

  摘要：

  When milled together with bismuth shots, nitroarenes are readily converted to azoxy- and/or azoarenes depending on substrates and conditions employed. Simple extraction with organic solvent followed by evaporation of the resulting dark pasty solid gave the product in good yield.

  DOI：

  10.1021/jo0203645

文献信息

• Thin-film fabrication method and apparatus
  申请人：Agency of Industrial Science and Technology of Ministry of International Trade and Industry

  公开号：EP0854024A2

  公开（公告）日：1998-07-22

  A thin-film fabrication method includes a spray step in which at least one thin-film composition material in liquid form is sprayed into a vacuum vessel via a spray nozzle provided for each thin-film composition material and deposited on a substrate, and a heat treatment step in which the material deposited on the substrate is heat treated. The substrate temperature in the spray step and/or the heat treatment step is controlled within a prescribed temperature range.

  一种薄膜制造方法包括喷雾步骤和热处理步骤，在喷雾步骤中，至少一种液态薄膜组合材料通过为每种薄膜组合材料提供的喷嘴喷入真空容器并沉积在基底上，在热处理步骤中，沉积在基底上的材料经过热处理。喷涂步骤和/或热处理步骤中的基底温度控制在规定的温度范围内。
• Electro-optically concealable vehicle instrument panel and method of constructing the same
  申请人：Ergom Automotive S.p.a.

  公开号：EP1372023A2

  公开（公告）日：2003-12-17

  An instrument panel of a vehicle provided with a rigid front cover panel for protecting the underlying instruments; the cover panel is electro-optical and includes: two transparent conductive layers, a liquid crystal-based material and a coloring agent that is diffused in the liquid crystal-based material, so that the colouring agent can conceal the underlying instruments when inactive and show them during excitation.

  一种汽车仪表板，配有用于保护底层仪表的硬质前盖板；盖板为电子光学结构，包括：两层透明导电层、液晶基材料和在液晶基材料中扩散的着色剂，从而使着色剂在不活动时可隐藏底层仪表，在激发时可显示底层仪表。
• US3965030A
  申请人：——

  公开号：US3965030A

  公开（公告）日：1976-06-22
• US4038200A
  申请人：——

  公开号：US4038200A

  公开（公告）日：1977-07-26
• US4005928A
  申请人：——

  公开号：US4005928A

  公开（公告）日：1977-02-01

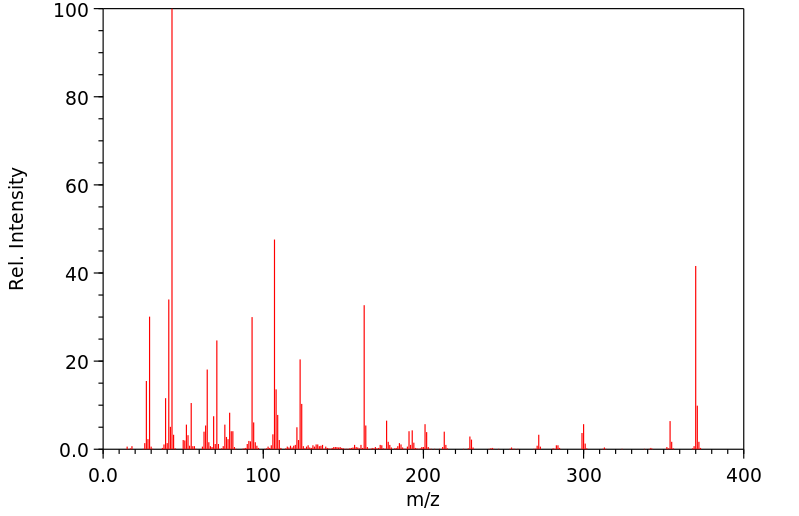

表征谱图
