5,8-Dimethoxy-2,3-diphenylquinoxaline | 19506-24-2

• 分子结构分类: 有机化合物 - 有机杂环化合物 - 二氮杂萘
• 英文名称: 5,8-Dimethoxy-2,3-diphenylquinoxaline
• CAS: 19506-24-2
• 化学式: C₂₂H₁₈N₂O₂
• 分子量: 342.4
• InChiKey: KHRDXHXUZUXIMJ-UHFFFAOYSA-N

计算性质

• 辛醇/水分配系数(LogP)：
  4.5
• 重原子数：
  26
• 可旋转键数：
  4
• 环数：
  4.0
• sp3杂化的碳原子比例：
  0.09
• 拓扑面积：
  44.2
• 氢给体数：
  0
• 氢受体数：
  4

文献信息

• CURED PRODUCT, OPTICAL MEMBER, LENS, AND COMPOUND
  申请人：FUJIFILM Corporation

  公开号：US20210017315A1

  公开（公告）日：2021-01-21

  The present invention provides a cured product obtained by curing a curable composition including a compound represented by General Formula 1, in which a birefringence Δn (587 nm) is 0.00≤Δn (587 nm)≤0.01. Pol 1 -Sp 1 -L 1 -Ar-L 2 -Sp 2 -Pol 2 (General Formula 1) In the formula, Ar represents a divalent group containing a ring structure selected from the group consisting of a quinoxaline ring and a quinazoline ring; L 1 and L 2 each represent a single bond, —O—, —OC(═O)—, —OC(═O)O—, —OC(═O)NH—, and the like; Sp 1 and Sp 2 each represent a single bond or a divalent linking group; Pol 1 and Pol 2 each represent a hydrogen atom or a polymerizable group; and the compound represented by General Formula 1 has at least one polymerizable group. The cured product of the present invention has a small Abbe number (νd) and a large partial dispersion ratio (θg, F), and is therefore useful for production of optical members.

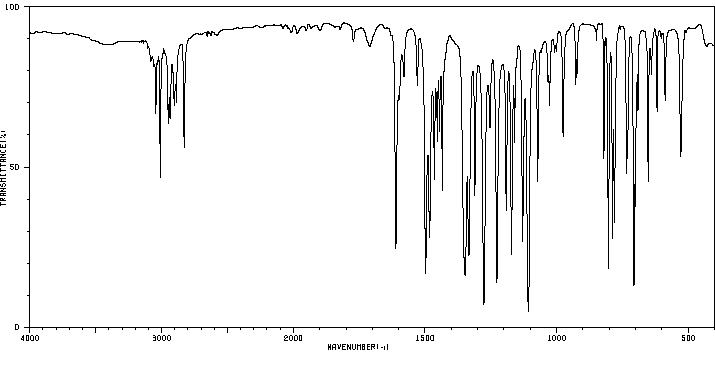

表征谱图
