氧化铜 | 163686-95-1

中文名称
氧化铜
中文别名
线状氧化铜;纳米氧化铜;氧化铜粉;C.I.颜料黑15;丝状氧化铜;电镀级氧化铜;氧化铜(II);活性氧化铜
英文名称
copper(II) oxide
英文别名
copper(I) oxide;copper oxide;copper monoxide;cupric oxide;Copper oxide (CuO);oxocopper
氧化铜化学式
CAS
163686-95-1;1317-38-0
化学式
CuO
mdl
——
分子量
79.5454
InChiKey
QPLDLSVMHZLSFG-UHFFFAOYSA-N
BEILSTEIN
——
EINECS
——
  • 物化性质
  • 计算性质
  • ADMET
  • 安全信息
  • SDS
  • 制备方法与用途
  • 上下游信息
  • 反应信息
  • 文献信息
  • 表征谱图
  • 同类化合物
  • 相关功能分类
  • 相关结构分类

物化性质

  • 熔点:
    1326 °C
  • 密度:
    6.315
  • 溶解度:
    酸水溶液(微溶)、甲醇(微溶)
  • 暴露限值:
    a/nm
  • 介电常数:
    b/nm
  • 物理描述:
    DryPowder; DryPowder, PelletsLargeCrystals; Liquid; OtherSolid; PelletsLargeCrystals; PelletsLargeCrystals, OtherSolid; WetSolid
  • 颜色/状态:
    Black to brownish-black amorphous or crystalline powder or granules
  • 沸点:
    1026 °C (decomp)
  • 蒸汽压力:
    0 mmHg (approx)
  • 分解:
    Decomposes at 1026 °C.
  • 折光率:
    INDEX OF REFRACTION: 2.63 (BETA)

计算性质

  • 辛醇/水分配系数(LogP):
    -0.12
  • 重原子数:
    2
  • 可旋转键数:
    0
  • 环数:
    0.0
  • sp3杂化的碳原子比例:
    0.0
  • 拓扑面积:
    17.1
  • 氢给体数:
    0
  • 氢受体数:
    1

ADMET

代谢
铜主要通过胃肠道吸收,但也可以通过吸入和皮肤吸收。它通过基底外侧膜,可能是通过调节铜转运蛋白,并与血清白蛋白结合被运输到肝脏和肾脏。肝脏是铜稳态的关键器官。在肝脏和其他组织中,铜以与金属硫蛋白、氨基酸结合以及与依赖铜的酶相关联的形式储存,然后分配通过胆汁排泄或并入细胞内和细胞外蛋白中。铜向周围组织的运输是通过血浆中与血清白蛋白、铜蓝蛋白或低分子量复合物结合实现的。铜可能诱导金属硫蛋白和铜蓝蛋白的产生。膜结合的铜转运腺苷三磷酸酶(Cu-ATPase)将铜离子输送到细胞内和细胞外。生理上正常的铜水平通过改变铜的吸收速率和量、分布区域以及排泄来保持恒定。(L277, L279)
Copper is mainly absorbed through the gastrointestinal tract, but it can also be inhalated and absorbed dermally. It passes through the basolateral membrane, possibly via regulatory copper transporters, and is transported to the liver and kidney bound to serum albumin. The liver is the critical organ for copper homoeostasis. In the liver and other tissues, copper is stored bound to metallothionein, amino acids, and in association with copper-dependent enzymes, then partitioned for excretion through the bile or incorporation into intra- and extracellular proteins. The transport of copper to the peripheral tissues is accomplished through the plasma attached to serum albumin, ceruloplasmin or low-molecular-weight complexes. Copper may induce the production of metallothionein and ceruloplasmin. The membrane-bound copper transporting adenosine triphosphatase (Cu-ATPase) transports copper ions into and out of cells. Physiologically normal levels of copper in the body are held constant by alterations in the rate and amount of copper absorption, compartmental distribution, and excretion. (L277, L279)
来源:Toxin and Toxin Target Database (T3DB)
毒理性
  • 毒性总结
对于健康、非职业暴露的人类来说,铜的主要暴露途径是口服。成年人每天的平均铜摄入量介于0.9和2.2毫克之间。在某些情况下,饮用水可能会对每天的总铜摄入量产生重大贡献,特别是在那些腐蚀性水在铜管道中停留的家庭中。与口服途径相比,所有其他铜的摄入(吸入和皮肤)都是微不足道的。从灰尘和烟雾中吸入的铜每天增加0.3-2.0微克。使用含铜宫内节育器的女性每天从这一来源接触到的铜只有80微克或更少。铜的体内平衡涉及到元素的二元基本性和毒性。其基本性源于它特定地结合到大量蛋白质中,用于催化和结构目的。铜在哺乳动物中的摄取、蛋白质结合和输出的细胞途径是由金属本身调节的。铜主要通过胃肠吸收。从饮食中摄入的铜有20%到60%被吸收,其余的通过粪便排出。一旦金属通过基底外侧膜,它就会与血清白蛋白结合并被运输到肝脏。肝脏是铜体内平衡的关键器官。铜被分配用于通过胆汁排出或结合到细胞内和细胞外蛋白中。主要的排泄途径是通过胆汁。铜输送到外周组织是通过血浆与血清白蛋白、铜蓝蛋白或低分子量复合物结合来完成的。当铜超出体内平衡控制时,其生物化学毒性源于其对生物分子(如DNA、膜和蛋白质)的结构和功能的影响,直接或通过氧自由基机制。单次口服铜的毒性在不同物种之间差异很大。主要可溶性盐(硫酸铜(II)、氯化铜(II))通常比不太可溶的盐(氢氧化铜(II)、氧化铜(II))更有毒性。死亡前会出现胃出血、心动过速、低血压、溶血性危机、抽搐和麻痹。在大鼠和小鼠中长期暴露没有明显的毒性迹象,除了与剂量相关的生长减少。这些影响包括肝脏发炎和肾小管上皮细胞变性。在大鼠中,睾丸退化和新生儿体重及器官重量减少的情况也有所见,在高剂量水平下,还出现了胚胎毒性和畸形。口服给药后报告了神经化学变化。有限的免疫毒性研究表明,在饮用水中口服摄入后,小鼠的体液和细胞介导的免疫功能障碍。铜是必需元素,人类的健康不良影响与缺乏和过量有关。铜缺乏与贫血、中性粒细胞减少和骨骼异常有关,但在人类中临床明显的缺乏相对罕见。除了偶尔的急性铜中毒事件外,正常人类群体中很少有影响被注意到。自杀或意外口服暴露后单次接触的影响据报道包括金属味、上腹痛、头痛、恶心、头晕、呕吐和腹泻、心动过速、呼吸困难和血红蛋白尿,大量胃肠道出血、肝和肾衰竭,以及死亡。饮用含高铜浓度的饮用水单次和反复摄入也导致了胃肠道的影响,而慢性摄入铜后报告了肝衰竭。皮肤暴露没有与系统性毒性相关,但铜可能在敏感个体中诱导过敏反应。在职业环境中吸入空气中高浓度的铜烟雾热已有报道。描述了一些群体,这些群体在铜的体内平衡中出现的障碍使得他们对铜缺乏或过量的敏感性高于一般人群。一些疾病有明确的遗传基础。这些包括门克斯病,通常是由于铜缺乏而致命的表现;威尔逊病(肝豆状核变性),这是一种导致铜逐渐积累的状况;以及遗传性无铜蓝蛋白血症,具有铜过载的临床症状。印度儿童肝硬化和无缘无故的铜中毒是与过量的铜有关的状况,可能与基于遗传的铜敏感性有关。这些是在早期儿童中致命的状况,其中铜在肝脏中积累。其他可能对铜过量敏感的群体包括血液透析患者和患有慢性肝病的患者。铜缺乏风险群体包括婴儿(特别是出生体重低/早产儿、恢复期的营养不良儿童和仅以牛奶喂养的婴儿)、患有吸收不良综合症的人(例如,乳糜泻、热带口炎性腹泻、囊性纤维化)以及接受全肠外营养的患者。铜缺乏与心血管疾病的发病机制有关。铜的副作用必须与其基本性相平衡。铜是所有生物体的必需元素。至少有12种主要蛋白质需要铜作为其结构的一部分。对于血红蛋白中铁的利用至关重要,大多数甲壳类动物和软体动物拥有含铜的血蓝蛋白作为其主要携氧血液蛋白。评估铜危险性的一个关键因素是它的生物有效性。铜与颗粒物的吸附和有机物的复合作用可以大大限制铜积累的程度。在许多地点,限制生物有效性的物理化学因素将需要更高的铜限制。
For healthy, non-occupationally-exposed humans the major route of exposure to copper is oral. The mean daily dietary intake of copper in adults ranges between 0.9 and 2.2 mg. ... In some cases, drinking water may make a substantial additional contribution to the total daily intake of copper, particularly in households where corrosive waters have stood in copper pipes. ... All other intakes of copper (inhalation and dermal) are insignificant in comparison to the oral route. Inhalation adds 0.3-2.0 ug/day from dusts and smoke. Women using copper IUDs are exposed to only 80ug or less of copper per day from this source. The homeostasis of copper involves the dual essentiality and toxicity of the element. Its essentiality arises from its specific incorporation into a large number of proteins for catalytic and structural purposes. The cellular pathways of uptake, incorporation into protein and export of copper are conserved in mammals and modulated by the metal itself. Copper is mainly absorbed through the gastrointestinal tract. From 20 to 60% of the dietary copper is absorbed, with the rest being excreted through the feces. Once the metal passes through the basolateral membrane it is transported to the liver bound to serum albumin. The liver is the critical organ for copper homeostatis. The copper is partitioned for excretion through the bile or incorporation into intra- and extracellular proteins. The primary route of excretion is through the bile. The transport of copper to the peripheral tissues is accomplished through the plasma attached to serum albumin, ceruloplasmin or low-molecular weight complexes. ... The biochemical toxicity of copper, when it exceeds homeostatic control, is derived from its effects on the structure and function of biomolecules, such as DNA, membranes and proteins directly or through oxygen-radical mechanisms. The toxicity of a single oral dose of copper varies widely between species. ... The major soluble salts (copper(II) sulfate, copper(II) chloride) are generally more toxic than the less soluble salts (copper(II) hydroxide, copper (II) oxide). Death is preceded by gastric hemorrhage, tachycardia, hypotension, hemolytic crisis, convulsions and paralysis. ... Long-term exposure in rats and mice showed no overt signs of toxicity other than a dose-related reduction in growth after ingestion ... The effects included inflammation of the liver and degeneration of kidney tubule epithelium. ... Some testicular degeneration and reduced neonatal body and organ weights were seen in rats ... and fetotoxic effects and malformations were seen at high dose levels. ... Neurochemical changes have been reported after oral administration ... A limited number of immunotoxicity studies showed humoral and cell-mediated immune function impairment in mice after oral intakes in drinking-water ... Copper is an essential element and adverse health effects /in humans/ are related to deficiency as well as excess. Copper deficiency is associated with anemia, neutropenia and bone abnormalities but clinically evident deficiency is relatively infrequent in humans. .. Except for occasional acute incidents of copper poisoning, few effects are noted in normal /human/ populations. Effects of single exposure following suicidal or accidental oral exposure have been reported as metallic taste, epigastric pain, headache, nausea, dizziness, vomiting and diarrhea, tachycardia, respiratory difficulty, hemolytic anemia, hematuria, massive gastrointestinal bleeding, liver and kidney failure, and death. Gastrointestinal effects have also resulted from single and repeated ingestion of drinking-water containing high copper concentrations, and liver failure has been reported following chronic ingestion of copper. Dermal exposure has not been associated with systemic toxicity but copper may induce allergic responses in sensitive individuals. Metal fume fever from inhalation of high concentrations in the air in occupational settings have been reported ... A number of groups are described where apparent disorders in copper homeostasis result in greater sensitivity to copper deficit or excess than the general population. Some disorders have a well-defined genetic basis. These include Menkes disease, a generally fatal manifestation of copper deficiency; Wilson disease (hepatolenticular degeneration), a condition leading to progressive accumulation of copper; and hereditary aceruloplasminemia, with clinical symptoms of copper overload. Indian childhood cirrhosis and idiopathic copper toxicosis are conditions related to excess copper which may be associated with genetically based copper sensitivity ... These are fatal conditions in early childhood where copper accumulates in the liver. ... Other groups potentially sensitive to copper excess are hemodialysis patients and subjects with chronic liver disease. Groups at risk of copper deficiency include infants (particularly low birth weight/preterm babies, children recovering from malnutrition, and babies fed exclusively with cow's milk), people with maladsorption syndrome (e.g., celiac disease, sprue, cystic fibrosis), and patients on total parenteral nutrition. Copper deficiency has been implicated in the pathogenesis of cardiovascular disease. The adverse effects of copper must be balanced against its essentiality. Copper is an essential element for all biota ... At least 12 major proteins require copper as an integral part of their structure. It is essential for the utilization of iron in the formation of hemoglobin, and most crustaceans and molluscs possess the copper-containing hemocyanin as their main oxygen-carrying blood protein. ... A critical factor in assessing the hazard of copper is its bioavailablity. Adsorption of copper to particles and complexation by organic matter can greatly limit the degree to which copper will be accumulated ... At many sites, physiochemical factors limiting bioavailability will warrant higher copper limits. ...
来源:Hazardous Substances Data Bank (HSDB)
毒理性
  • 毒性总结
过量的铜被储存在肝细胞溶酶体中,在那里它与金属硫蛋白结合。当溶酶体饱和,铜在细胞核中积累,导致核损伤时,铜的肝脏毒性被认为会发生。这种损伤可能是由于氧化损伤,包括脂质过氧化。铜抑制含巯基团的酶,如葡萄糖-6-磷酸-1-脱氢酶、
Excess copper is sequestered within hepatocyte lysosomes, where it is complexed with metallothionein. Copper hepatotoxicity is believed to occur when the lysosomes become saturated and copper accumulates in the nucleus, causing nuclear damage. This damage is possibly a result of oxidative damage, including lipid peroxidation. Copper inhibits the sulfhydryl group enzymes such as glucose-6-phosphate 1-dehydrogenase, glutathione reductase, and paraoxonases, which protect the cell from free oxygen radicals. It also influences gene expression and is a co-factor for oxidative enzymes such as cytochrome C oxidase and lysyl oxidase. In addition, the oxidative stress induced by copper is thought to activate acid sphingomyelinase, which lead to the production of ceramide, an apoptotic signal, as well as cause hemolytic anemia. Copper-induced emesis results from stimulation of the vagus nerve. (L277, T49, A174, L280)
来源:Toxin and Toxin Target Database (T3DB)
毒理性
  • 致癌物分类
对人类无致癌性(未列入国际癌症研究机构IARC清单)。
No indication of carcinogenicity to humans (not listed by IARC).
来源:Toxin and Toxin Target Database (T3DB)
毒理性
  • 健康影响
人们每天必须吸收少量铜,因为铜对健康至关重要。然而,高水平的铜可能有害。极高的铜剂量可能对肝脏和肾脏造成损害,甚至导致死亡。铜可能引起敏感个体的过敏反应。
People must absorb small amounts of copper every day because copper is essential for good health, however, high levels of copper can be harmful. Very-high doses of copper can cause damage to your liver and kidneys, and can even cause death. Copper may induce allergic responses in sensitive individuals. (L278, L279)
来源:Toxin and Toxin Target Database (T3DB)
毒理性
  • 暴露途径
吸入,皮肤和/或眼睛接触
inhalation, skin and/or eye contact
来源:The National Institute for Occupational Safety and Health (NIOSH)
吸收、分配和排泄
氧化铜的肺部吸收发生在暴露于含有50-80毫克/立方米氧化铜气溶胶的大鼠中。动物分别暴露15、30、45或60分钟后立即处死。另一组动物暴露180分钟后,在暴露后0、3、6、12、18或24小时处死。电子显微镜组织学检查显示,暴露180分钟的动物发生了铜的吸收。氧化铜颗粒穿透肺泡上皮细胞,并在暴露开始后6小时在血浆中发现。氧化铜还观察到出现在肾脏的近曲小管中。
The pulmonary uptake of copper oxide /occurred/ in rats exposed to aerosols containing 50-80 mg/cu m. Animals were exposed for 15, 30, 45, or 60 minutes and killed immediately. Another group was exposed for 180 minutes and killed at 0, 3, 6, 12, 18, or 24 hours after exposure. Electron microscopic histologic examination showed that absorption of copper had occurred in animals exposed for 180 minutes. Copper oxide particles penetrated the epithelial cells of alveoli and were found in plasma 6 hours after exposure began. Copper oxide was also observed in the proximal convoluted tubules of the kidney. /Copper oxide/
来源:Hazardous Substances Data Bank (HSDB)
吸收、分配和排泄
兽医:铜源。含铜量80%。在牛和猪饲养试验中,吸收率低,粪便排泄率高。一般来说,单胃动物对氧化铜的利用比反刍动物更好。家禽的利用率介于两者之间。
VET: COPPER SOURCE. 80% COPPER CONTENT. LOW ABSORPTION RATE & HIGH FECAL EXCRETION RATE IN CATTLE & SWINE FEEDING TRIALS. IN GENERAL MONOGASTRIC ANIMALS UTILIZE /CUPRIC OXIDE/ BETTER THAN RUMINANTS. POULTRY UTILIZATION IS SOMEWHERE BETWEEN THE TWO.
来源:Hazardous Substances Data Bank (HSDB)
吸收、分配和排泄
切维厄羊(平均活重50公斤)在接收基于颗粒燕麦的边缘铜含量饮食的同时,被给予了单剂量的0、2.5、5、10或20克氧化铜颗粒,这些颗粒装在明胶胶囊中。65天后,肝脏铜浓度与剂量成非线性关系增加,所有给予10或20克氧化铜颗粒的母羊肝脏铜浓度至少增加了13.4毫摩尔/千克干物质(850 ppm)。85天后,肝脏铜浓度普遍下降,但在一只接受了20克氧化铜颗粒的母羊中记录到了铜中毒的生化和组织学证据。尽管个体羊之间存在显著差异,但0.1克/千克活重的剂量(5克)被认为是安全的,并没有在五只易感的诺罗纳德赛羊中诱导出现临床铜中毒,这些羊接受了相同的基底饮食。
Cheviot ewes (mean live weight 50 kg) were given single doses of 0, 2.5, 5, 10, or 20 g cupric oxide particles in gelatin capsules while receiving a diet of marginal copper content based on pelleted oats. After 65 days, liver copper concentrations had increased curvilinearly in relation to dose and all ewes given 10 or 20 g cupric oxide particles showed increases of at least 13.4 mmol/kg dry matter (850 ppm). Liver copper concentrations had generally declined after 85 days but biochemical and histological evidence of copper toxicity was recorded in one ewe which had received 20 g cupric oxide particles. Despite marked variations between individual sheep, a dose of 0.1 g/kg liveweight (5 g) was considered to be safe and did not induce clinical copper toxicity in five sheep of the susceptible North Ronaldsay breed given the same basal diet.
来源:Hazardous Substances Data Bank (HSDB)
吸收、分配和排泄
杂交小公牛,平均初始活重220公斤,给予大麦和干草自由采食的饮食。每头动物接受一次口服剂量的0、5、10、20或40克氧化铜颗粒。5克氧化铜颗粒的剂量在大约240天内增加了肝脏铜储备,更高剂量的铜储备增加时间更长,但40克并不比20克(85毫克/公斤活重)更有效。个体间的差异很明显,但记录的最高肝脏铜浓度(7.59毫摩尔/公斤干物质)并未产生铜中毒的生化证据。氧化铜颗粒被分成三个部分,团块、短杆和长杆;每部分以5毫克/公斤活重的剂量给予平均活重为173公斤的小公牛。颗粒的形式既不影响它们在消化道中的保留,也不影响肝脏中铜的积累。
Crossbred steers, mean initial live weight 220 kg, were given a diet of barley and hay ad libitum. Each animal received a single oral does of 0, 5, 10, 20, or 40 g cupric oxide particles. A dose of 5 g cupric oxide particles increased liver copper stores for about 240 days and higher doses increased liver stores for longer but 40 g was no more effective than 20 g (85 mg/kg live weight). Variation among individuals was marked but the highest liver copper concentration recorded (7.59 mmol/kg dry matter) produced no biochemical evidence of copper toxicity. Cupric oxide particles were separated into three fractions, clumps, short rods and long; and 5 mg/kg live weight of each fraction given to steers of 173 kg mean live weight. The form of the particles did not affect either their retention in the alimentary tract or the accumulation of copper in the liver.
来源:Hazardous Substances Data Bank (HSDB)

安全信息

  • 职业暴露等级:
    D
  • 职业暴露限值:
    TWA: 0.1 mg/m3
  • TSCA:
    Yes
  • 危险等级:
    9
  • 立即威胁生命和健康浓度:
    100 mg Cu/m3

制备方法与用途

理化性质

氧化铜是一种无机物,化学式为CuO。它是一种黑色的铜氧化物,略微表现出两性特征,并具有轻微的吸湿性。不溶于水但易溶于酸,对热稳定,在高温下分解产生氧气。在高温下通入氢气或一氧化碳可还原成金属铜。氧化铜在空气中加热至约1050℃时会释放出氧气而转化为氧化亚铜;即使在250℃以下的温度下,在氢气或一氧化碳气流中也很容易被还原为金属铜。虽然不溶于水,但可以溶解于碱金属氢氧化物的水溶液。

氧化铜物理性质
  • 颜色:黑色
  • 状态:粉末
  • 溶解性:不溶于水,易溶于酸
物理化学反应
  1. 4Cu + O₂ → 2Cu₂O
  2. Cu₂O + 0.5O₂ → 2CuO
  3. CuO + H₂SO₄ → CuSO₄ + H₂O
  4. CuSO₄ + Fe → FeSO₄ + Cu↓
  5. 2Cu + O₂ → 2CuO
生产方法

采用铜粉氧化法,以铜灰和铜渣为原料。首先经焙烧去除水分和有机杂质,进行初步氧化;生成的初级氧化物自然冷却后粉碎,并二次氧化得到粗品氧化铜。将粗品氧化铜加入预先装有1:1硫酸的反应器中,在加热搅拌下反应至液体相对密度达到原来的1倍、pH值为2~3时即为终点,生成硫酸铜溶液并静置澄清。在加热和搅拌条件下加入铁屑置换出铜,用热水洗涤去除硫酸根和铁质后离心分离干燥,于450℃下氧化焙烧8小时冷却粉碎至100目,再在氧化炉中进一步氧化制得氧化铜粉末。

性能与用途
  • 催化剂:用于催化、超导、陶瓷等领域。
  • 着色剂:应用于玻璃和瓷器的着色,以及光学玻璃的磨光。
  • 氢化剂:作为油类的氢化剂使用。
  • 宝石制造:制作人造宝石及其他铜氧化物。
  • 有机合成催化剂:用于有机合成过程中。
急性毒性
  • 口服大鼠LD₅₀:470毫克/公斤
  • 腹腔小鼠LD₅₀:273毫克/公斤
防火与储存
  • 火灾特性:不可燃,但燃烧时产生有毒含铜化合物烟雾。
  • 库房条件:低温、通风、干燥环境;与其他食品原料分开存放。
灭火方法

使用水、二氧化碳、干粉或砂土进行灭火。

反应信息

  • 作为反应物:
    描述:
    参考文献:
    名称:
    KYOTANI, TAKASHI;KAWASHIMA, HIROYUKI;TOMITA, AKIRA;PALMER, ALLAN;FURIMSKY+, FUEL, 68,(1989) N, C. 74-79
    摘要:
    DOI:
  • 作为产物:
    描述:
    yttrium barium copper oxide 在 一氧化二氮 作用下, 以 neat (no solvent) 为溶剂, 生成 氧化铜
    参考文献:
    名称:
    YBa2Cu3O7-δ在不同氧化环境下激光烧蚀过程中铜的气相氧化
    摘要:
    在存在三种不同的氧化剂背景气体:氧气 (O2)、一氧化二氮 (N2O) 和二氧化氮 (NO2) 的情况下,YBa2Cu3O7-δ 靶标烧蚀期间 CuO 的气相生成已使用激光诱导进行监测。荧光。发现氮的氧化物在生产 CuO 时比氧更有效,反应性顺序为 O2
    DOI:
    10.1063/1.108824
  • 作为试剂:
    描述:
    1H-1,2,4-三唑1-(3-溴苯基)咪唑氧化铜potassium carbonate 作用下, 以 二甲基亚砜 为溶剂, 反应 120.0h, 以43%的产率得到1-(3-(imidazol-1-yl)phenyl)-1,2,4-triazole
    参考文献:
    名称:
    [EN] UNSYMMETRICAL SALTS, CCC-NHC PINCER METAL COMPLEXES, AND METHODS OF MAKING THE SAME
    [FR] SELS ASYMÉTRIQUES, COMPLEXES MÉTALLIQUES À PINCE CCC-NHC, ET LEURS PROCÉDÉS DE FABRICATION
    摘要:
    本文提供了非对称双(唑)盐、非对称CCC-NHC金属配合物以及其形成方法。非对称双(唑)盐包括一个中心芳香环,该环被两个杂环环取代,可以是邻位、间位或对位。非对称CCC-NHC金属配合物包括金属化的非对称双(唑)盐。形成非对称CCC-NHC金属配合物的方法包括将二卤代苯与第一唑烷反应,形成一(唑)苯,将一(唑)苯与第二唑烷反应,形成非对称双(唑)苯,烷基化非对称双(唑)苯形成非对称双(唑)盐,金属化非对称双(唑)盐形成非对称CCC-NHC金属配合物。还提供了双配体CCC-NHC金属配合物和非对称双金属配合物。
    公开号:
    WO2018175659A1
点击查看最新优质反应信息

文献信息

  • The electronic valence states of CuO: Radiative lifetimes of the A, A′, C, and D states
    作者:J.M. Delaval、F. David、Y. Lefebvre、P. Bernage、P. Niay、J. Schamps
    DOI:10.1016/0022-2852(83)90141-8
    日期:1983.10
    Abstract Radiative lifetimes of several electronic states of CuO have been determined by recording the exponential decay of the fluorescence following resonant excitation by a pulsed dye laser. The lifetimes extrapolated to zero pressure have been found to be 0.65 μsec for the A2Σ− state, 1.3 μsec for the C2Π state, 1.8 μsec for the D2Δ state, and more than 5 μsec for the A′ ( Ω = 1 2 ) state. In connection
    摘要 CuO 几种电子态的辐射寿命已通过记录脉冲染料激光共振激发后荧光的指数衰减来确定。已经发现外推到零压力的寿命对于 A2Σ- 状态为 0.65 微秒,对于 C2Π 状态为 1.3 微秒,对于 D2Δ 状态为 1.8 微秒,对于 A' (Ω = 1 2 ) 状态超过 5 微秒。结合能级图,这些值支持将 A、C 和 D 状态分配给 3dCu+9 4sCu+ 2pO−5 (σ2 π3) 结构。长寿命的 A' 态可能是另一个双峰或受污染的四重峰 Ω = 1 2 与其他三个状态相同结构的成分,或者是 3d Cu + 9 σ ∗ 2 2pπ 4 结构的状态。
  • Intriguing structural and magnetic properties correlation study on Fe<sup>3+</sup>-substituted calcium-copper-titanate
    作者:P. R. Pansara、P. Y. Raval、N. H. Vasoya、S. N. Dolia、K. B. Modi
    DOI:10.1039/c7cp06681c
    日期:——
    This communication presents a detailed study on a Fe3+ modified CaCu3Ti4O12 cubic perovskite system (CaCu3−xTi4−xFe2xO12 with x = 0.0–0.7) by performing X-ray powder diffractometry, DC SQUID magnetization and 57Fe Mössbauer spectroscopy. The first ever Mössbauer studies on the system supported the reported peculiarity of the structure. Mössbauer analysis for the compositions x = 0.1, 0.3, and 0.5 suggest
    本交流通过进行X射线粉末衍射法,对Fe 3+修饰的CaCu 3 Ti 4 O 12立方钙钛矿体系(CaCu 3- x Ti 4- x Fe 2 x O 12,x = 0.0-0.7)进行了详细研究, DC SQUID磁化强度和57 FeMössbauer光谱。Mössbauer对该系统进行的首次研究证明了该结构的独特性。组成x = 0.1、0.3和0.5的Mössbauer分析表明Fe 3+离子在两个不同的环境中。在八面体对称中,四极分裂较大的位点对应于Fe 3+,而在四面对称(A'-)构型中,化学位移和四极分裂较低的位点属于Fe 3+。随着Fe取代度的增加,Fe 3+似乎更倾向于A'-对称性。反铁磁特征保留到x = 0.3,但随着较高的Fe 3+取代,铁磁特征变弱。反铁磁行为向铁磁行为的转变与Fe 3+在占据Cu 2+的正方形平面对称结构中的优先占有有关。
  • Method of producing solution-derived metal oxide thin films
    申请人:Sandia Corporation
    公开号:US06086957A1
    公开(公告)日:2000-07-11
    A method of preparing metal oxide thin films by a solution method. A .beta.-metal .beta.-diketonate or carboxylate compound, where the metal is selected from groups 8, 9, 10, 11, and 12 of the Periodic Table, is solubilized in a strong Lewis base to form a homogeneous solution. This precursor solution forms within minutes and can be deposited on a substrate in a single layer or a multiple layers to form a metal oxide thin film. The substrate with the deposited thin film is heated to change the film from an amorphous phase to a ceramic metal oxide and cooled.
    一种利用溶液法制备金属氧化物薄膜的方法。选择来自周期表8、9、10、11和12组的β-金属β-二酮酸盐或羧酸盐化合物,在强Lewis碱的作用下被溶解成均匀溶液。该前驱体溶液在几分钟内形成,并可以在基板上单层或多层沉积形成金属氧化物薄膜。沉积了薄膜的基板被加热,从无定形相转变为陶瓷金属氧化物,然后冷却。
  • Copper/amine oxide wood preservatives
    申请人:Lonza Inc.
    公开号:US06340384B1
    公开(公告)日:2002-01-22
    The present invention provides a composition comprising an amine oxide and an aqueous copper amine complex. Another embodiment of the present invention is a method for preserving and/or waterproofing a wood substrate by contacting the composition with the wood substrate. Yet another embodiment is an article comprising a wood substrate and the composition of the present invention. This composition has high efficacy against fungi, including copper tolerant fungi such as brown rot and soft rot, and is phase stable at high concentrations. Additionally, the amine oxide in the composition may impart waterproofing properties. The composition of the present invention is halide free and is environmentally friendly.
    本发明提供了一种组合物,包括胺氧化物和水溶性铜胺络合物。本发明的另一实施例是通过将该组合物与木质基材接触来保护和/或防水木质基材的方法。另一个实施例是包括木质基材和本发明的组合物的物品。该组合物对真菌具有高效性,包括对铜耐受真菌如棕腐菌和软腐菌具有高效性,并且在高浓度下相稳定。此外,组合物中的胺氧化物可以赋予防水性能。本发明的组合物不含卤化物,环保友好。
  • RECYCLABLE AND REUSABLE OXYGEN SCAVENGER
    申请人:EMPIRE TECHNOLOGY DEVELOPMENT LLC
    公开号:US20160175809A1
    公开(公告)日:2016-06-23
    Disclosed herein are reusable composite materials for scavenging oxygen, methods of preparing the composite materials and method of using them. The composite materials contain porphyrin molecules and a metal oxide comprised within the porphyrin. The metal oxide is oxidizable in the presence of oxygen and the oxidation of the metal oxide is reversible upon exposure of the composite material to light of a fixed wavelength.
    本文披露了可重复使用的复合材料,用于清除氧气,包括制备复合材料的方法和使用方法。复合材料含有卟啉分子和卟啉内的金属氧化物。金属氧化物在氧气存在下可氧化,而金属氧化物的氧化在暴露在固定波长的光线下是可逆的。
查看更多

表征谱图

  • 氢谱
    1HNMR
  • 质谱
    MS
  • 碳谱
    13CNMR

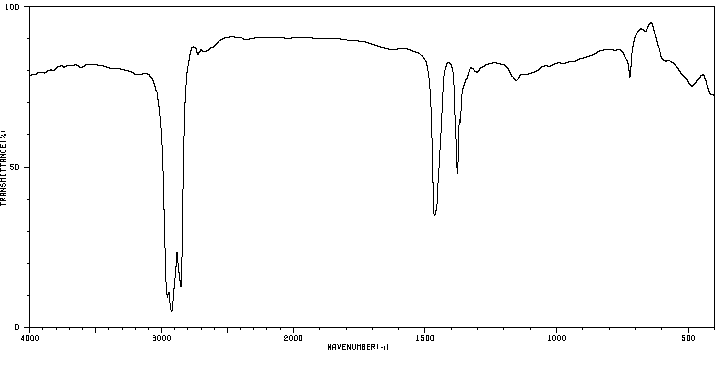

  • 红外
    IR
  • 拉曼
    Raman
查看更多图谱数据,请前往“摩熵化学”平台
查看更多图谱数据,请前往“摩熵化学”平台
查看更多图谱数据,请前往“摩熵化学”平台
ir
查看更多图谱数据,请前往“摩熵化学”平台
  • 峰位数据
  • 峰位匹配
  • 表征信息
Shift(ppm)
Intensity
查看更多图谱数据,请前往“摩熵化学”平台
Assign
Shift(ppm)
查看更多图谱数据,请前往“摩熵化学”平台
测试频率
样品用量
溶剂
溶剂用量
查看更多图谱数据,请前往“摩熵化学”平台
